9. Configuring the Instrument
This chapter describes how to configure various instrument parameters.
9.1 Configuring Measurement Parameters
The MEAS setup is the most commonly used setup menu screen where you access
global parameters concerning the instrument measurement features.
To configure measurement parameters
1. From the measurement screen, press [SETUP MENU].
2. In the menu, select MEAS.
The MEAS screen appears. The last parameters differ depending if a single or
dual element transducer is connected (see Figure 9-1 on page 127).

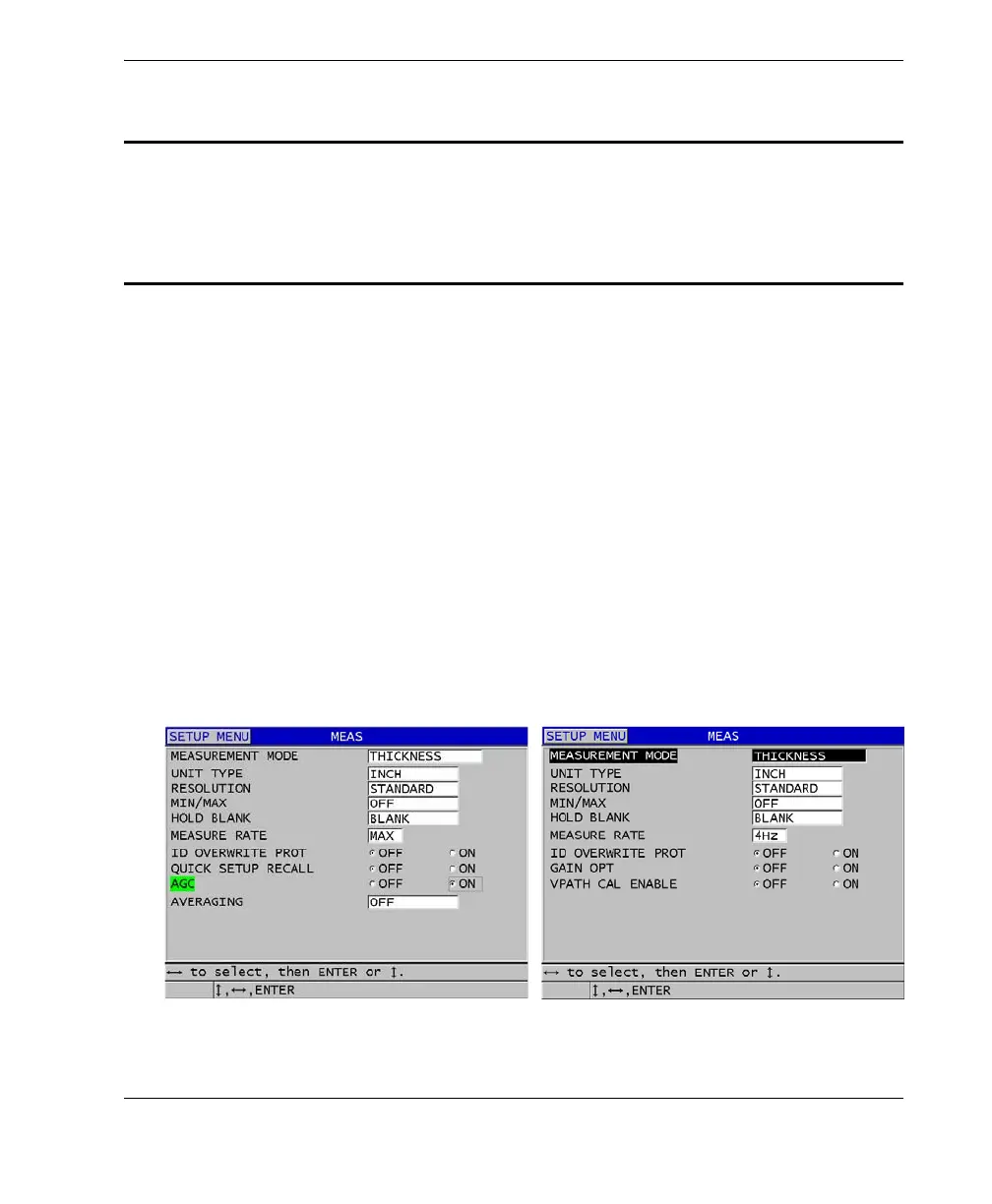

Figure 9‑1 The MEAS screen
For a dual element transducerFor a single element transducer

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
