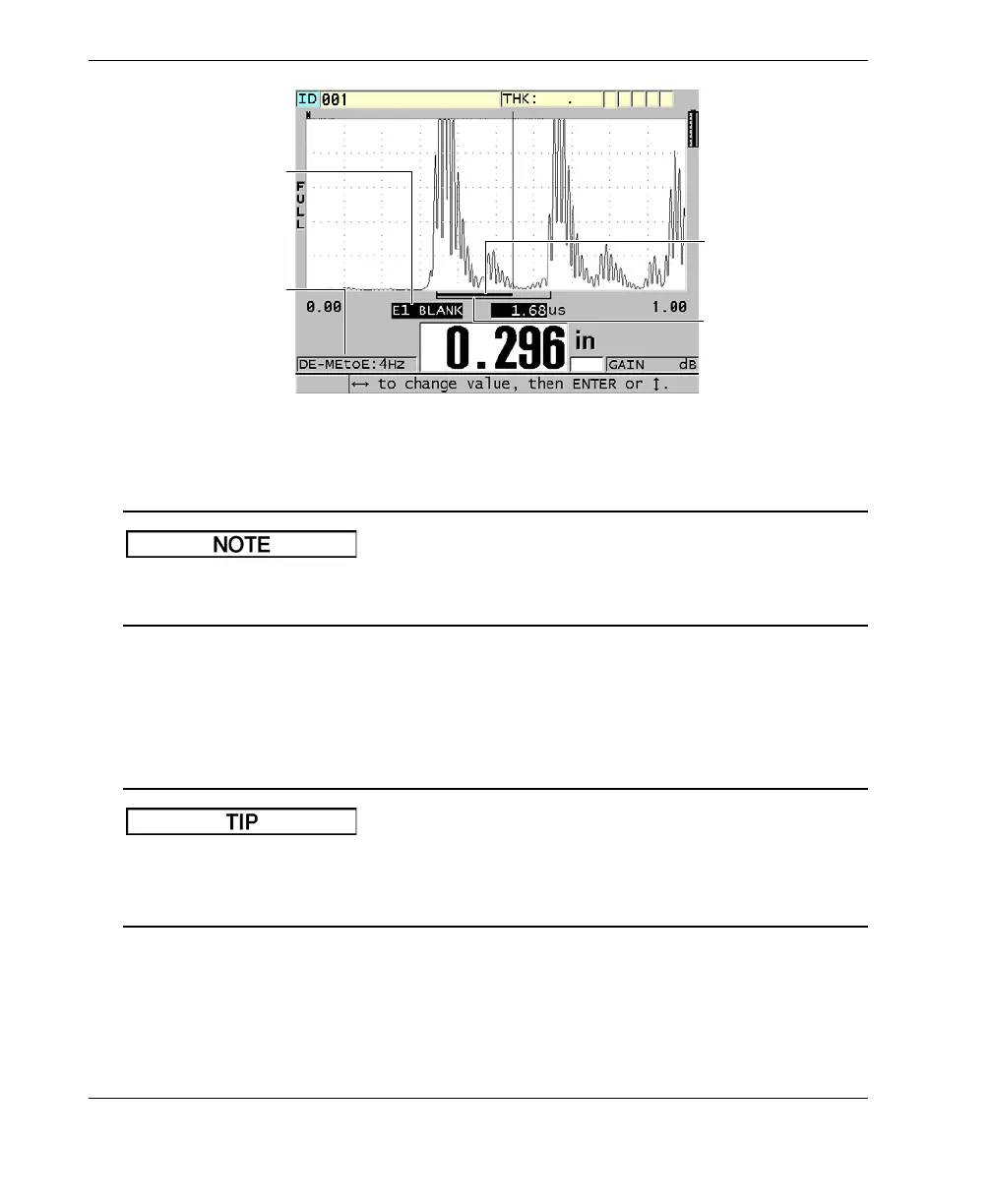

Figure 5‑14 Measuring with the manual echo‑to‑echo detection mode
In severe corrosion situations where valid multiple echoes are not present, you must
use the standard mode to be able to measure thicknesses.
You can use dual element transducers in all three modes. You can use all
measurement, display, and datalogger functions with the echo-to-echo modes. The
internal datalogger recognizes and saves all necessary echo-to-echo information to
upload and download thickness, waveform, and setup data.
You do not have to switch between echo detection modes when measuring both
coated and uncoated areas because you can measure uncoated wall thicknesses using
an echo-to-echo mode.
To change the echo detection mode
1. Press [2nd F], [ZOOM] (E‑TO‑E).
Dual element (DE)
manual echo-to-echo
(MEtoE) detection mode
E1 blank bar
Echo-to-echo detection
bar
[WAVE ADJ] parameter
To Next Page
