DMTA-10004-01EN, Rev. D, November 2016
Chapter 13
240
b) In the SAVE TO list, select one of the 35 available custom setup location.
Setups named SEUSER1 through SEUSER35 are empty locations. Use caution
when selecting a location that already contains a custom setup because the new setup
will replace the old information.
c) Select SAVE to save the custom setup.

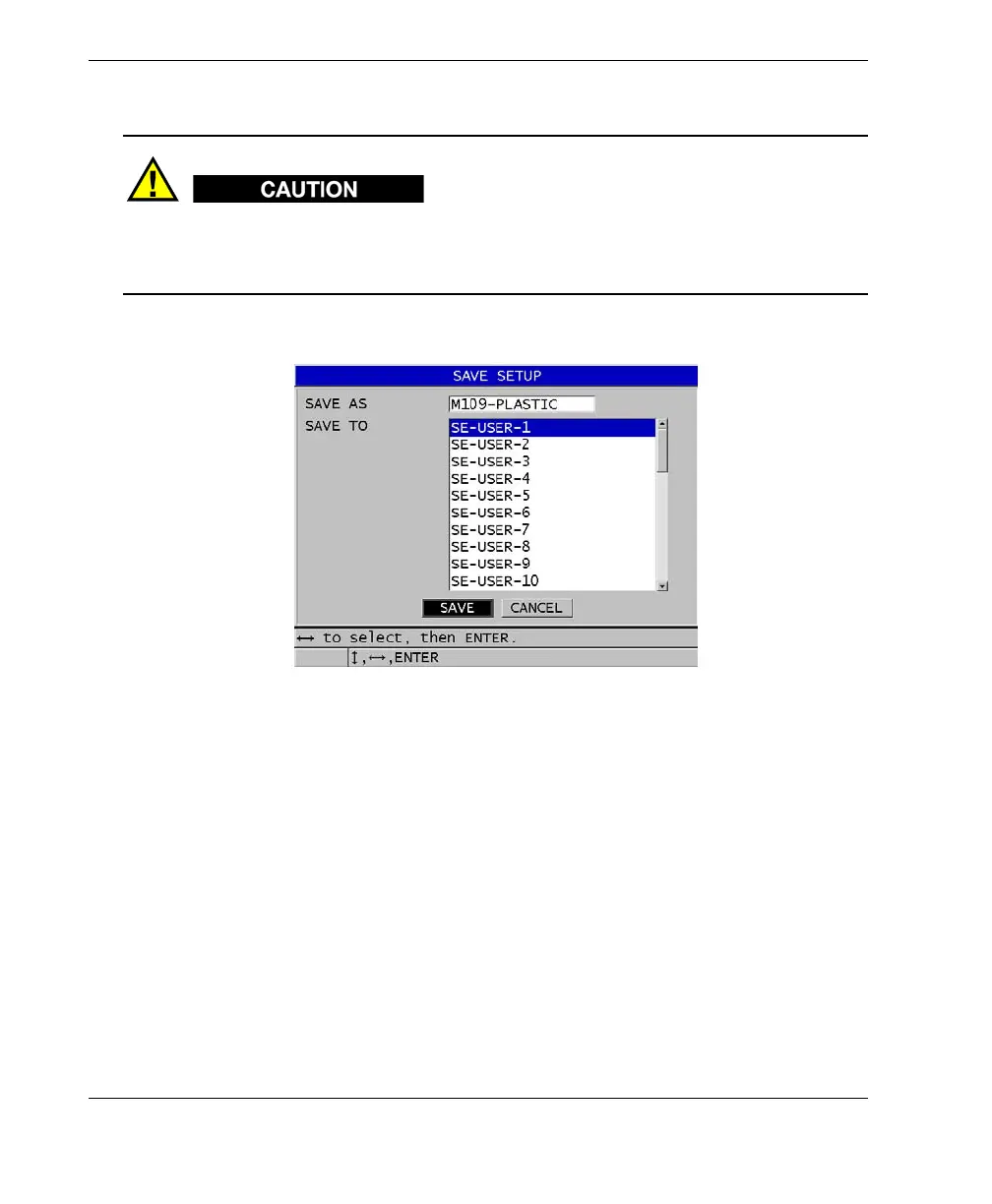

Figure 1317 Saving custom setups
5. In the ACTIVE screen, review the setup parameters.
6. Press [MEAS] to return to the measurement screen.
13.10 Quickly Recalling a Custom Setup for Single Element Transducers
Normally, you can change the setup for a custom application by pressing
[RECALL XDCR] to select the appropriate setup in the list of available setups, and
then press [MEAS]. This process is adequate for typical setups that are changed
infrequently. However, when it is necessary to frequently change between two or
more custom setups, rather use the quick setup recall function.
CAUTION
