Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Software Options 95
7.3.2 Setting Up for Oxide Layer Measurement
You need to connect an appropriate transducer, select the corresponding default
setup, and configure the oxide and material measurement parameters.
To set up for oxide layer measurement
1. Connect the M2017 or M2091 transducer to an LCM-74-4 cable.
2. Connect the cable to the T/R 1 single-element transducer connector at the top of
the 38DL PLUS.
3. Press [ON/OFF] to start the instrument.
4. While in the measurement screen, press [XDCR RECALL].
5. In the DEFAULT SINGLE ELEMENT screen, highlight DEF‑OXIDE/M2017 or
DEF‑OXIDE/M2091 depending on which transducer you are using.
6. Press [MEAS].
7. Press [SETUP MENU].
8. In the menu, select OXIDE.
9. In the OXIDE screen (see Figure 7-2 on page 95):
a) In OXIDE MEAS TYPE, select the type of measurement for the oxide layer
(THICKNESS or TIME OF FLIGHT).
b) In MATERIAL MEAS TYPE, select the type of measurement for the material
layer.

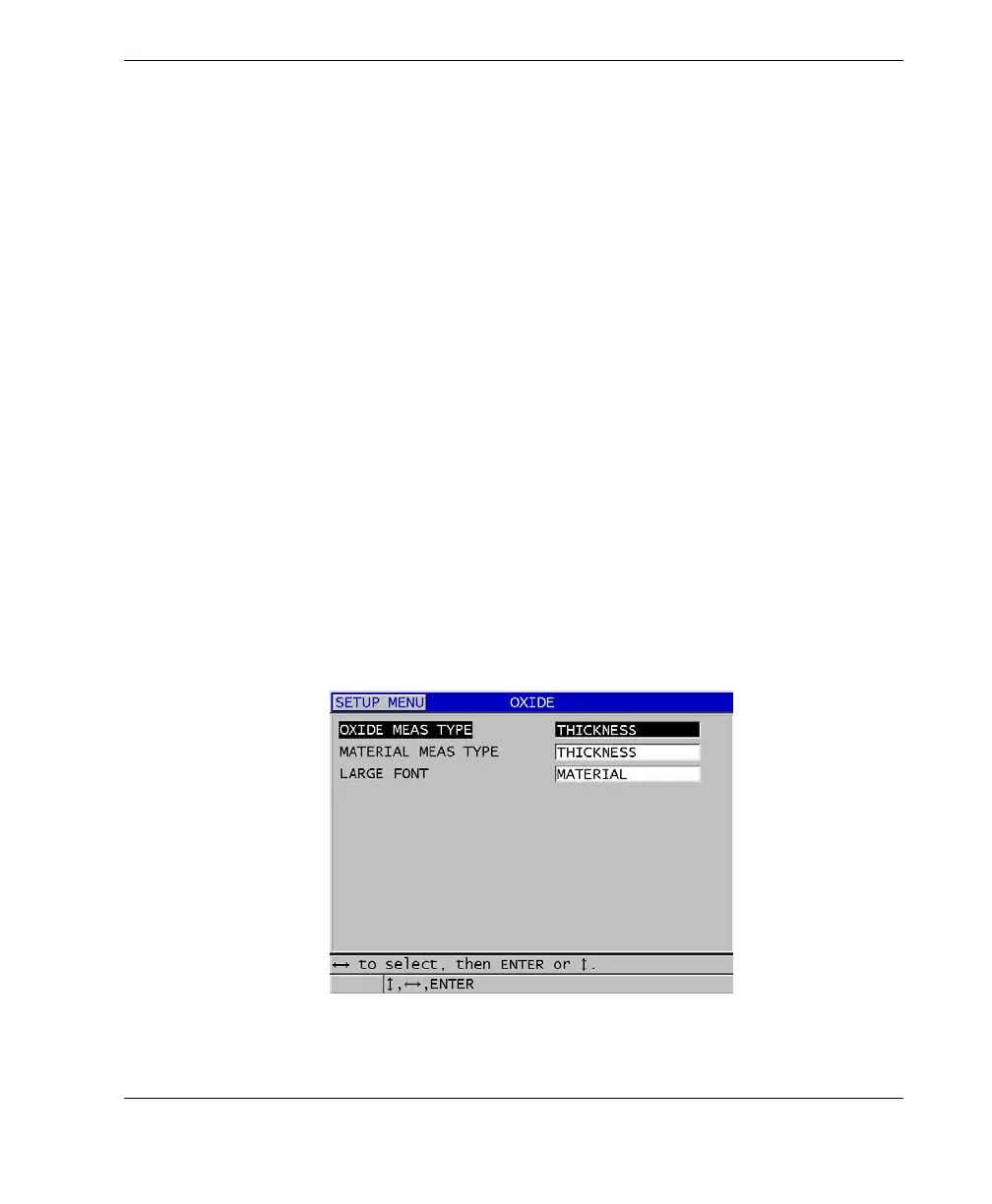

Figure 7‑2 The OXIDE screen

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
