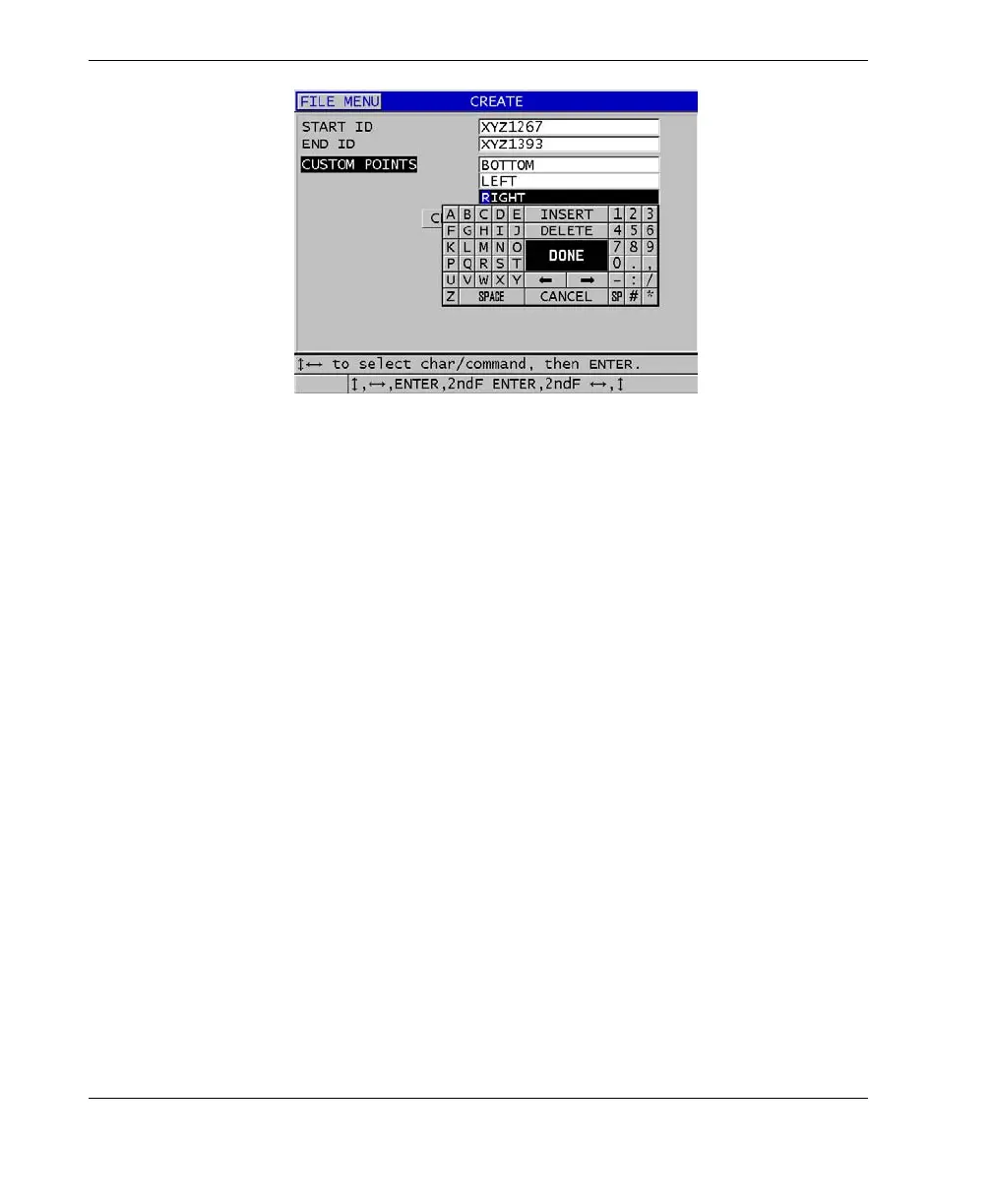

Figure 11‑6 Configuring the ID range for a sequential with custom points data file
type
11.2.1.4 2-D Grid Data File Type
A grid is a sequence of ID numbers arranged to describe a path through a two-
dimensional. Each part of the ID number corresponds to a particular matrix
dimension.
A 2-D (two-dimensional) sequence begins with the ID number that refers to the first
column and the first row (see Figure 11-7 on page 171). Then the column (or row)
increments one value at a time until the sequence reaches the last column (or row)
value while the other dimension value stays constant. At this point, the other
dimension increments from its first to its last value. This continues until the ID
number that refers to the last column and the last row is reached. You can select to
first increment either the columns or the rows.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
