The 38DL PLUS uses a transflective color display that reflects ambient light and
becomes brighter in direct light. With brighter ambient conditions, you can set the
display brightness to a lower percentage.
Reducing the display brightness percentage increases the battery life. Battery life
specifications are based on backlight brightness set to 50 %.
4.4.3 Waveform Rectification
The rectification mode is the way in which the ultrasonic echoes are represented on
the waveform display (see Figure 4-5 on page 54). The rectification mode does not
affect the thickness measurement in any way. The rectification indicator (FULL, POS,
NEG, or RF) appears on the left edge of the waveform display. From the measurement
screen, press [DISPLAY] to access the WAVEFORM RECTIFICATION parameter.

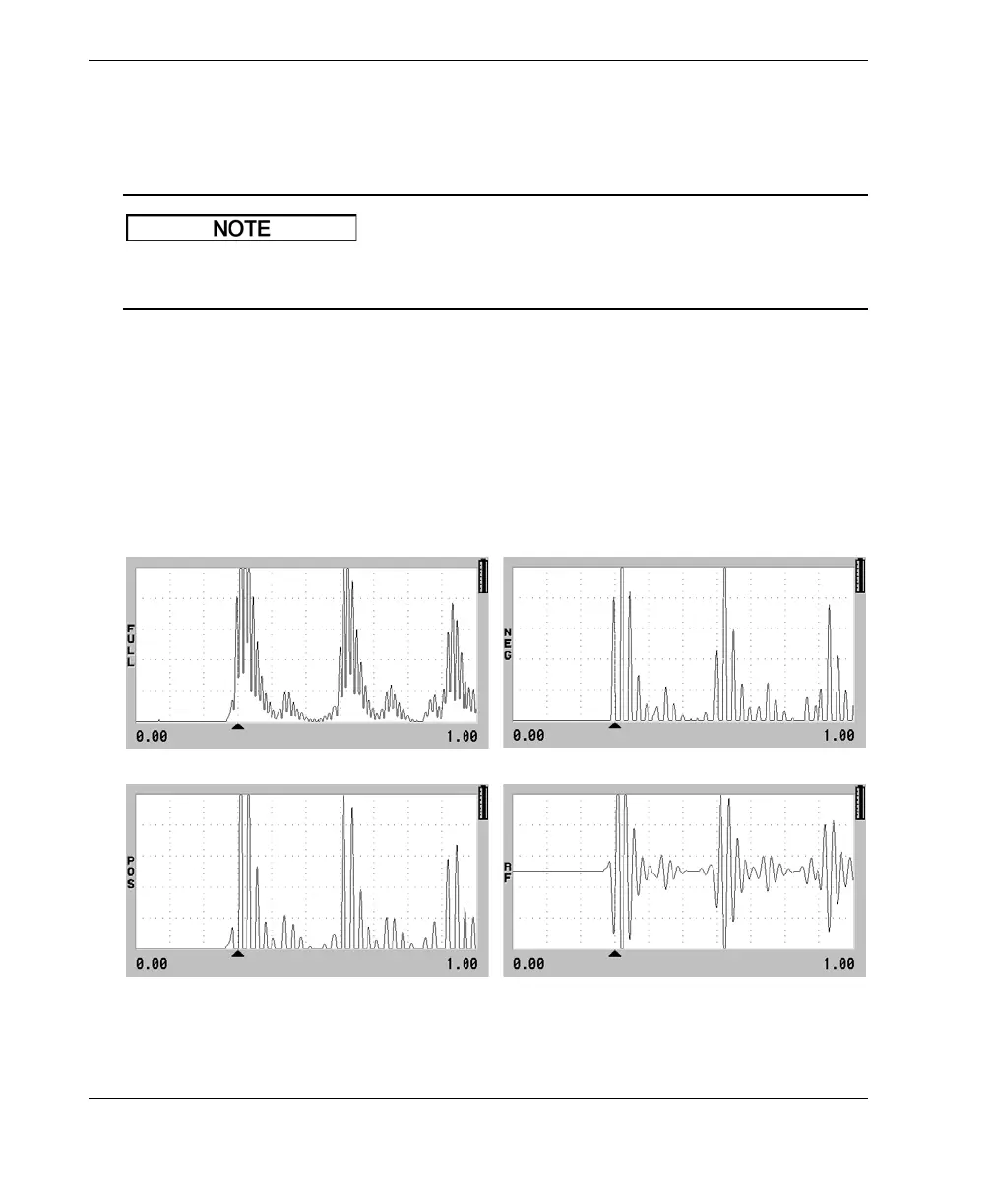

Figure 4‑5 Examples of the rectification modes
NOTE
Full Half–
Half+ RF

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
