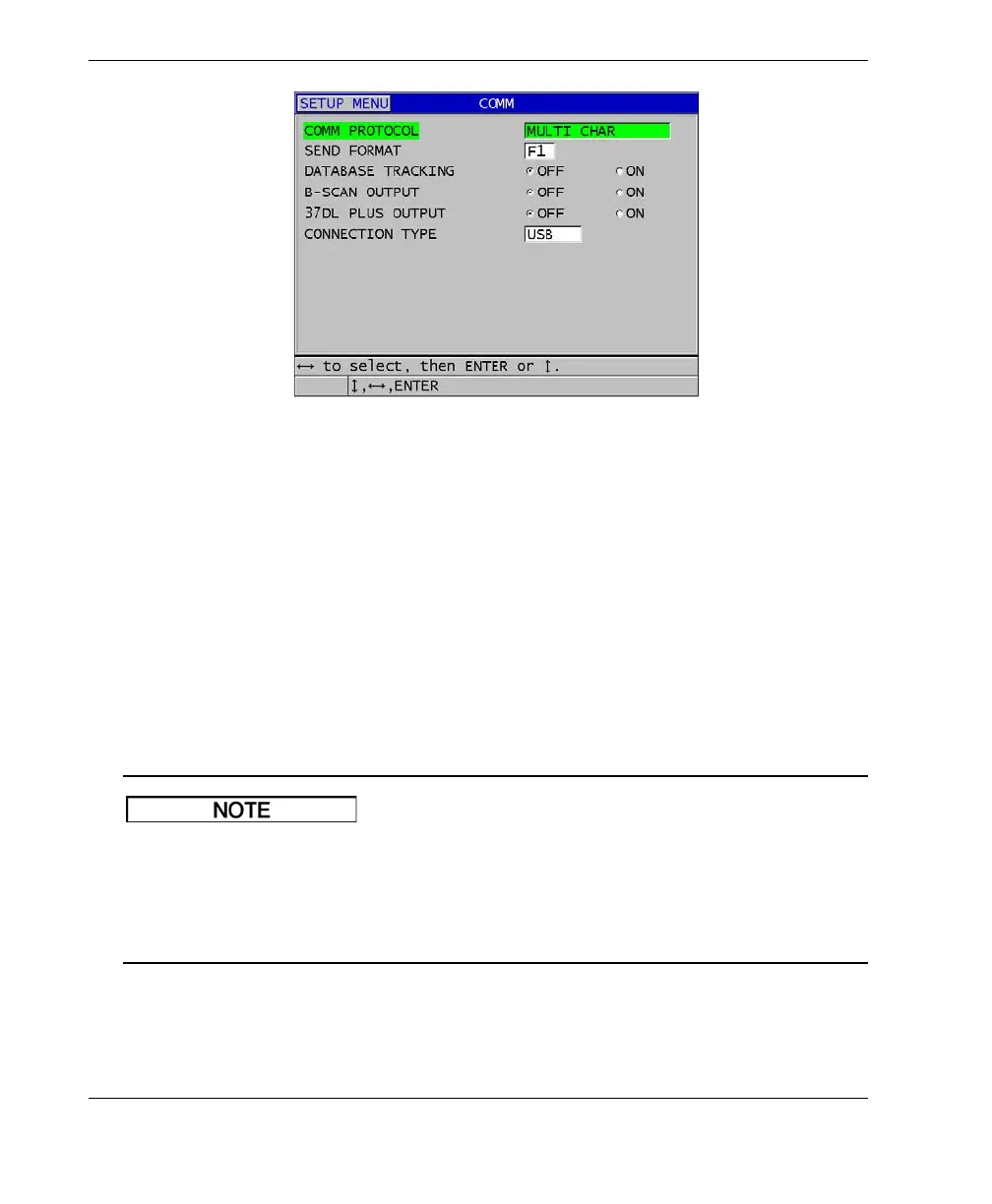

Figure 9‑3 Changing the communication parameters
a) In COMM PROTOCOL, select which remote command set the instrument
uses for communication:
○ MULTI CHAR: Multi character commands used for communication with
a computer running the GageView interface program.
○ SINGLE CHAR: Single character command normally used when an
external program is controlling the instrument by remotely sending
commands to mimic keystroke.
b) In OUTPUT FORMAT, select the format of the data being output (F1, F2,
F3,...F10). Refer to Table 24 on page 258 and Table 25 on page 259 for the
description of available output formats.
Contact Olympus for more information on the following communication parameters:
• Multi and single character remote commands.
• Send formats (F1, F2, F3, F4, F5, F6, F7, F8, F9, and F10).
c) Set DATABASE TRACKING to ON to allow the instrument to track the
measurement parameters (calibration settings, transducer type, gain etc.) that
were used in a previous inspection. In order for this feature to be
implemented, you must load the previous inspected file to the 38DL PLUS
NOTE

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
