Using Special Functions 121

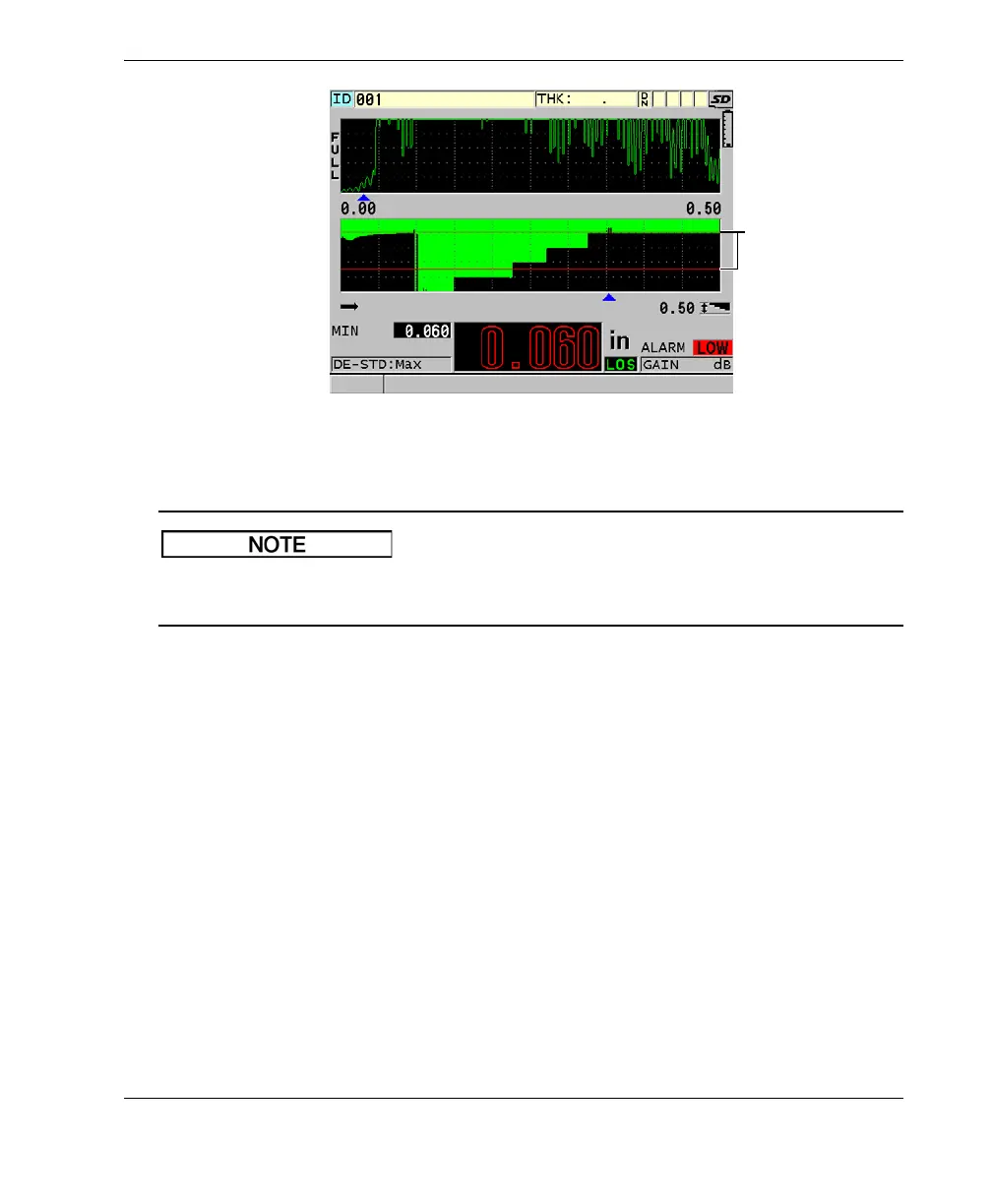

Figure 8‑5 Example of a B‑scan alarm mode
The thickness value and the alarm indicator appear in color only when the indoor
color scheme is active (see “Color Schemes” on page 52 to change the color scheme).
REDUCTION RT
The REDUCTION RT option appears only when the active file is configured with
FILE DATA MODE set to REDUCTION RT. You set the reduction percentage for
a low (YELLOW ALARM) and high (RED ALARM) limits, and the instrument
displays (see Figure 8-6 on page 122):
—The RED indicator for reduction rates that are greater than or equal to the
RED ALARM value.
—The YEL indicator for reduction rates that are between the YELLOW ALARM
and the RED ALARM values.
—The GRN indicator for reduction rates that are below the YELLOW ALARM
value.
Red alarm limits
NOTE

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
