To create a custom setup for a single element transducer
1. Connect the single element transducer to the 38DL PLUS (see “Setting Up the
Transducer” on page 63).
2. Press [XDCR RECALL].
3. In the menu, select the CUSTOM SINGLE ELEMENT.
4. In the CUSTOM SINGLE ELEMENT screen, select the desired custom setup
location (SE‑USER‑n) in which you wish to save the custom setup.
To reduce the number of changes to make to parameter values, you can also select an
existing single element setup with parameter values that are close to the desired
setup.
5. In the ACTIVE screen (see Figure 13-1 on page 222):
a) Set DET MODE to the desired detection mode (see “Detection Modes” on
page 225 for details).

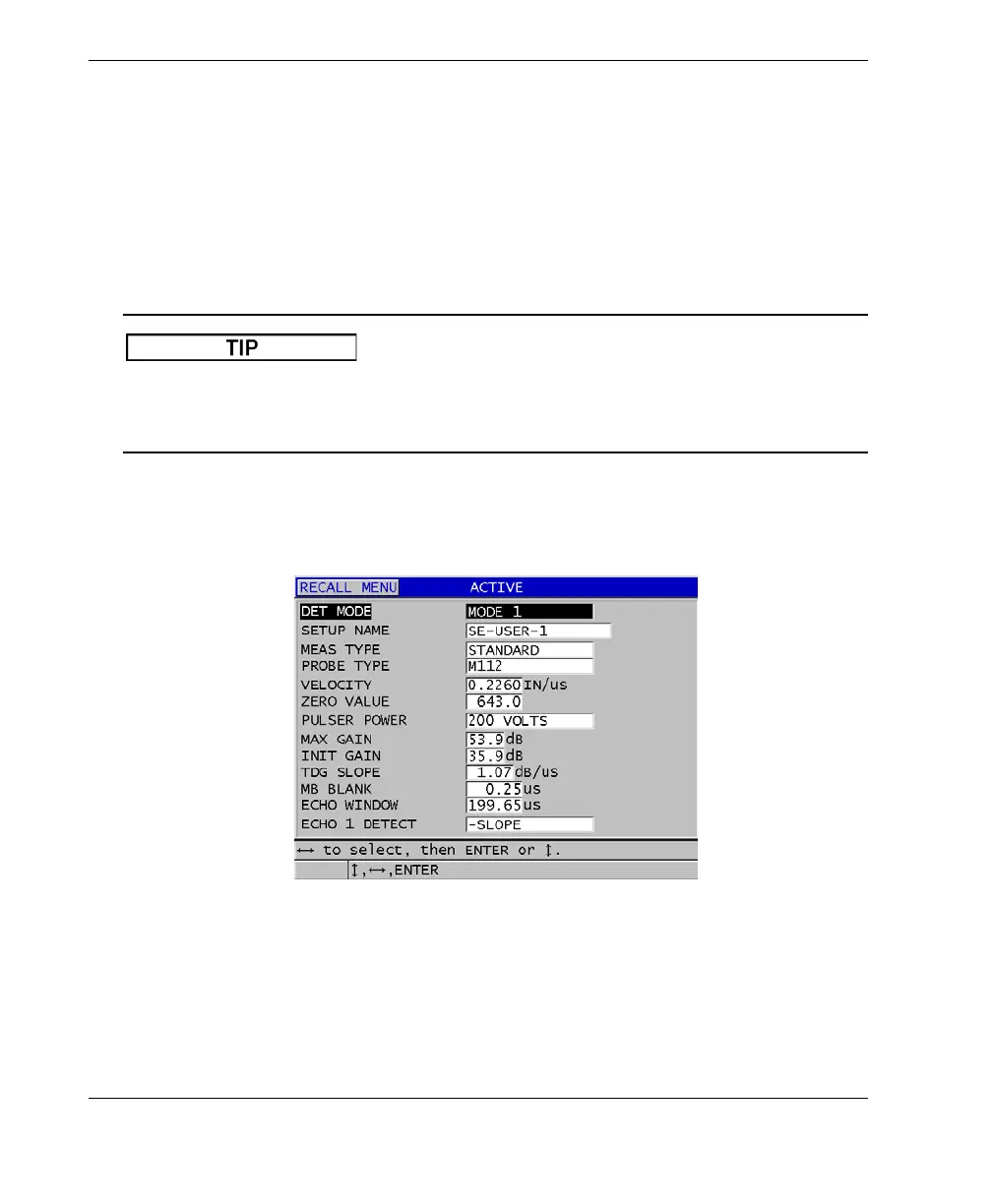

Figure 13‑1 The ACTIVE screen for the setup of a single element transducer
b) Enter a SETUP NAME that describes the transducer and/or the application
for which you create the setup.
c) Set MEAS TYPE to the desired measurement type. The available choices are:
TIP

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
