7. In the SAVE SETUP screen:
a) If needed, in SAVE AS, edit the setup name.
b) In the SAVE TO list, select the desired custom setup location where you want
to the save the setup.
c) Select SAVE.
8. Press [MEAS] to return to the measurement screen.
The saved setup becomes the active setup.
13.2 Quickly Adjusting Waveform Parameters For Single Element
Transducers
With single element transducers, you can quickly adjust individual waveform
parameters using the [WAVE ADJ] key.
To quickly adjust individual waveform parameters
1. Ensure that a single element transducer is connected to the 38DL PLUS.
2. From the measurement screen, press [WAVE ADJ].
The waveform adjustment parameter appears on the measurement screen above
the thickness value (see Figure 13-2 on page 224).

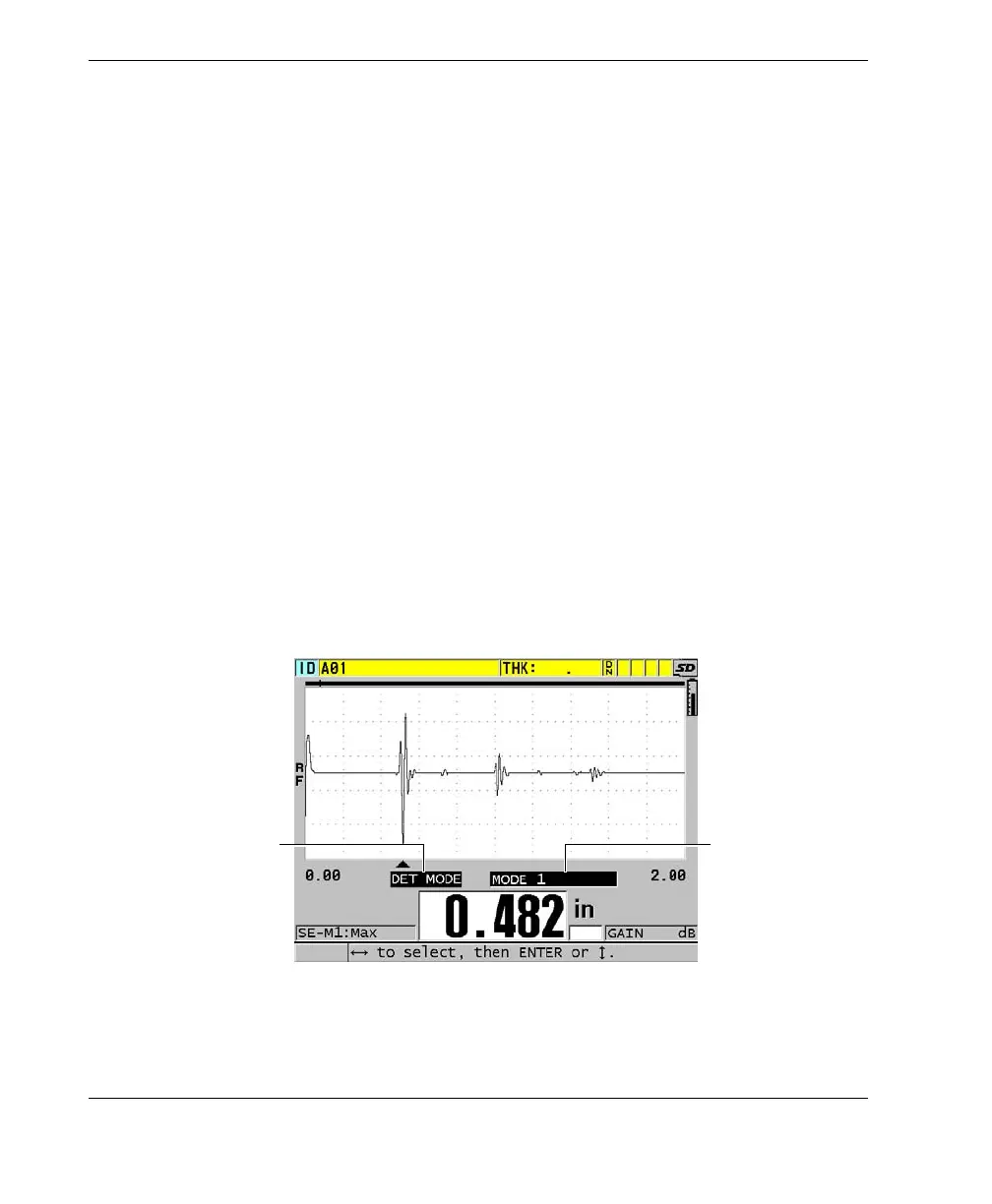

Figure 13‑2 Adjusting the waveform parameters
Waveform parameter
value
Waveform parameter

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
