Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Managing Communications and Data Transfer 249
(1) Set SORT BY to the desired sort option (NAME or DATE CREATED).
(2) In the file list, highlight each file, and then press [ENTER] to toggle the
file transfer check mark so that only files you wish to send have a check
mark on the right.
(3) Press [2nd F], [] to leave the file list.
c) Select the SEND button at the bottom of the screen.
The Accessing storage. Please wait message appears on the help text bar
while the data is transferred.

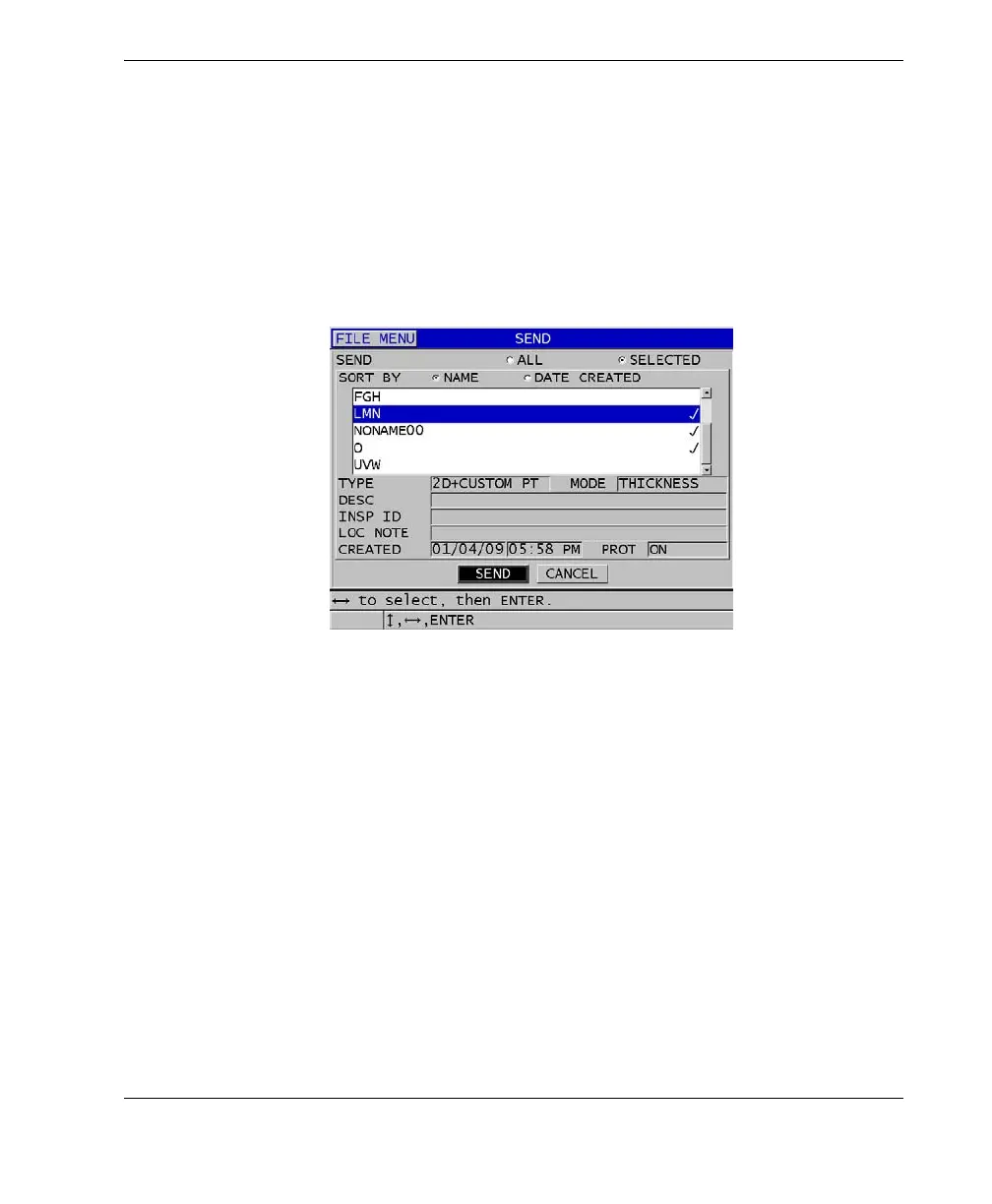

Figure 14‑3 Selecting a file to send
14.4.2 Sending an ID Range from a File (RS-232)
The 38DL PLUS allows you to only transmit a portion of a given file to a computer or
to a printer.
To send a specific range of ID numbers from a specific file
1. Ensure that the RS-232 communication is configured correctly (see “Setting Up
RS-232 Serial Communication” on page 245).
2. Open the file that contains the data to be transmitted, if the desired file is not
already the active file (see “Opening a File” on page 184).
3. From the measurement screen, press and hold [SAVE/SEND], until the ID ‑
RANGE SEND screen opens.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
