Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Chapter 11 184

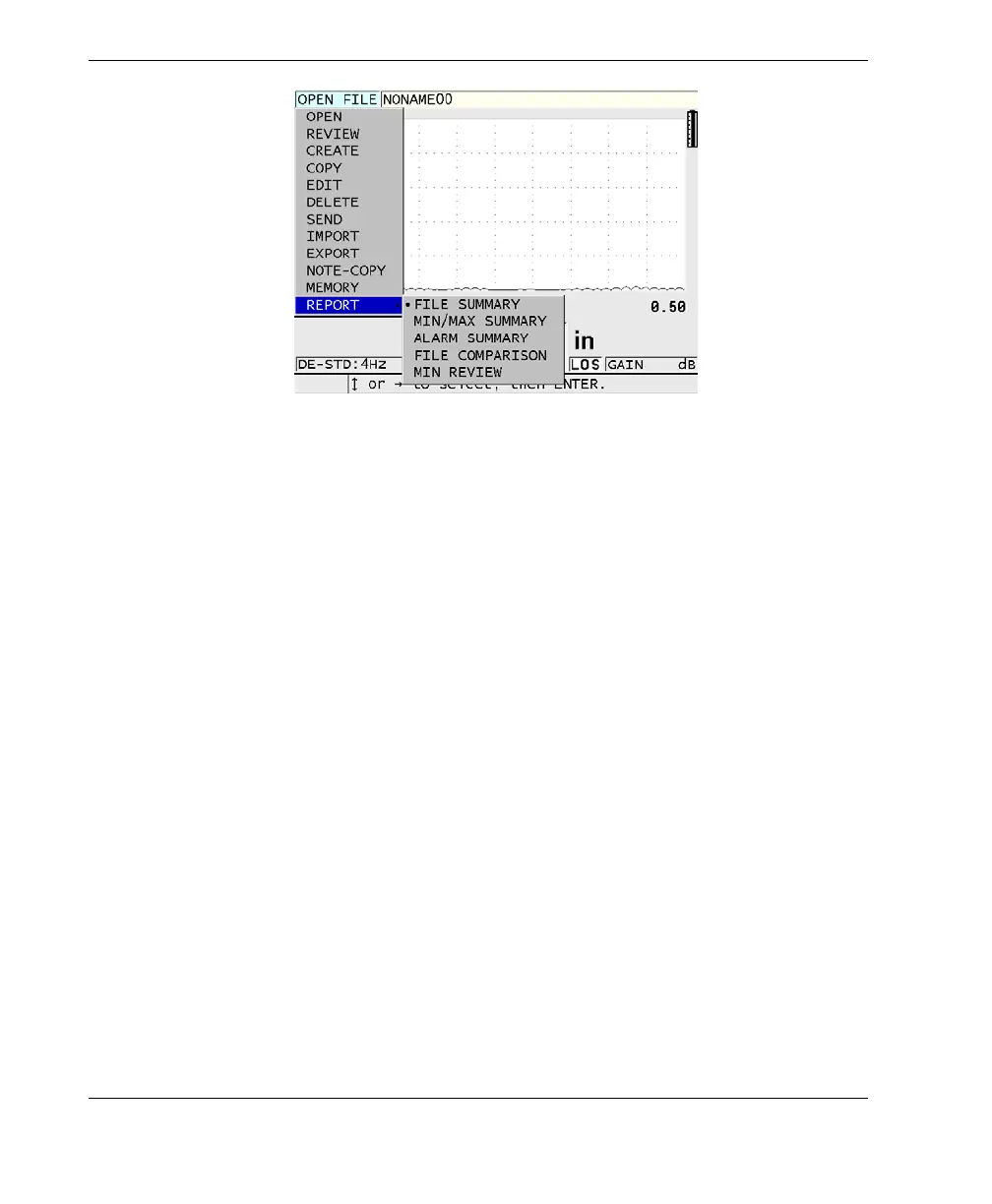

Figure 11‑15 The file menu and report submenu
11.3.1 Opening a File
You can open an existing file to make it the active file to which new measurements
will be saved.
To open a file
1. Press [FILE].
2. In the menu, select OPEN.
3. In the OPEN screen (see Figure 11-16 on page 185):
a) In SORT BY, select how files appearing on the screen are sorted (by NAME or
by DATE CREATED).
b) In the list of files, select the file that you wish to open.
The descriptive header for the highlighted file name appears on the lower
section of the display.
c) Select OPEN to return to the measurement screen with the selected file as the
active file and the ID number set to the first ID number in the file.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
