Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Using the Datalogger 173

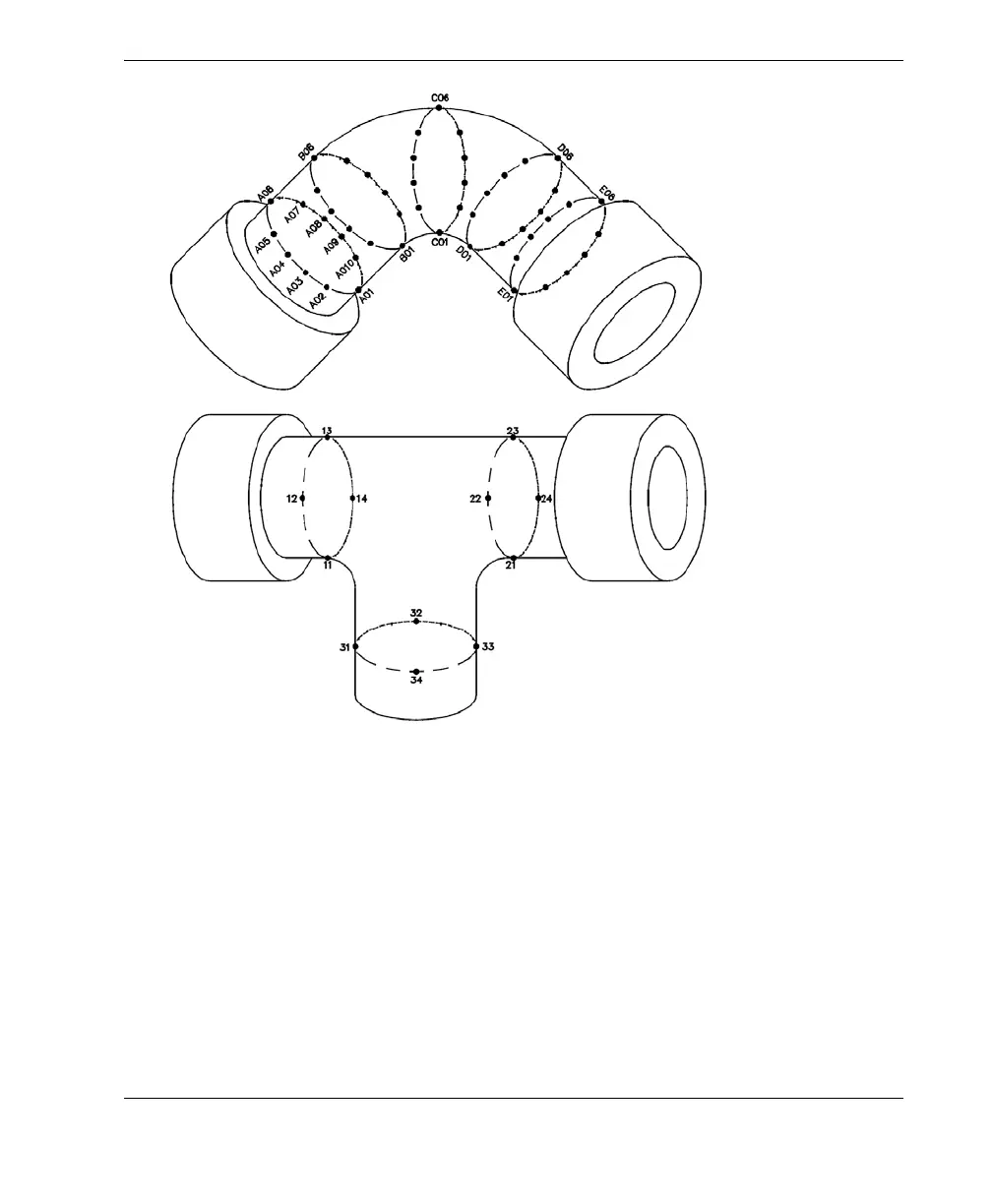

Figure 11‑9 Different named grid for each part
To create a 2-D grid data file
1. From the measurement screen, press [FILE], and then select CREATE in the menu
(see “Creating a Data File” on page 163 for details on the first parameters).
2. At the bottom of the CREATE screen, select CONTINUE.
3. In the second page of the CREATE screen (see Figure 11-10 on page 174):
a) Enter the START COLUMN, END COLUMN, START ROW, and END ROW
values.
Name: Elbow
Rows: 01 through 10
Columns: A through E
ID’s: Elbow/A0 through
Elbow/E10
Name: Tee
Rows: 1 through 4
Columns: 1 through 3
ID’s: Tee/11 through Tee/34

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
