Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Instrument Description 25

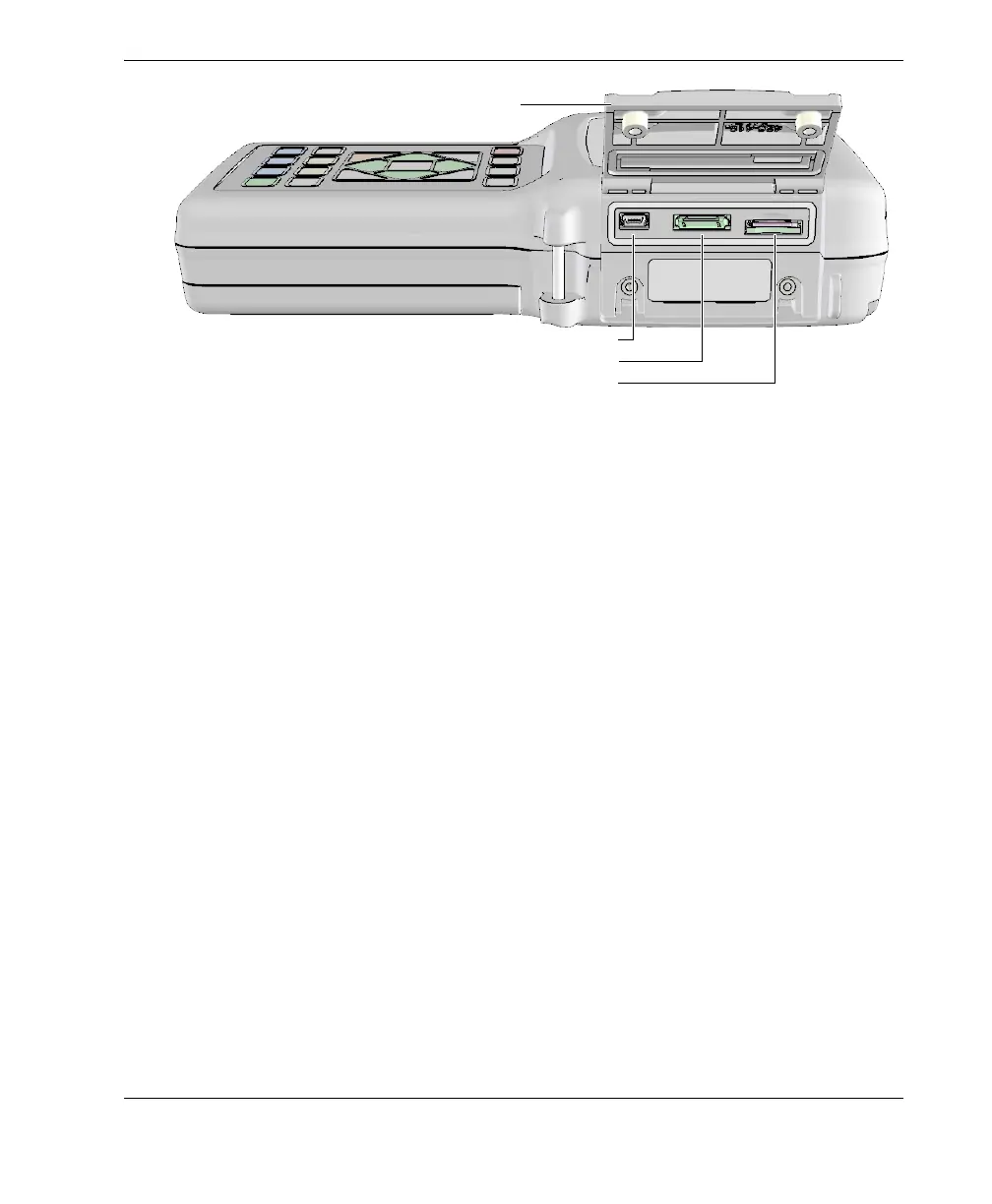

Figure 1‑5 The connectors behind the I/O door
1.5 Keypad Functions
The 38DL PLUS comes either with the English, international, Chinese, or Japanese
keypad (see Figure 1-6 on page 26). The functions are the same for all keypads. On the
international keypad, the text labels on many keys are replaced by pictograms. In this
document, keypad keys are referred to using the English label in bold and within
brackets (ex.: [MEAS]).
USB client connector
VGA output connector
microSD external memory card slot
I/O door

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
