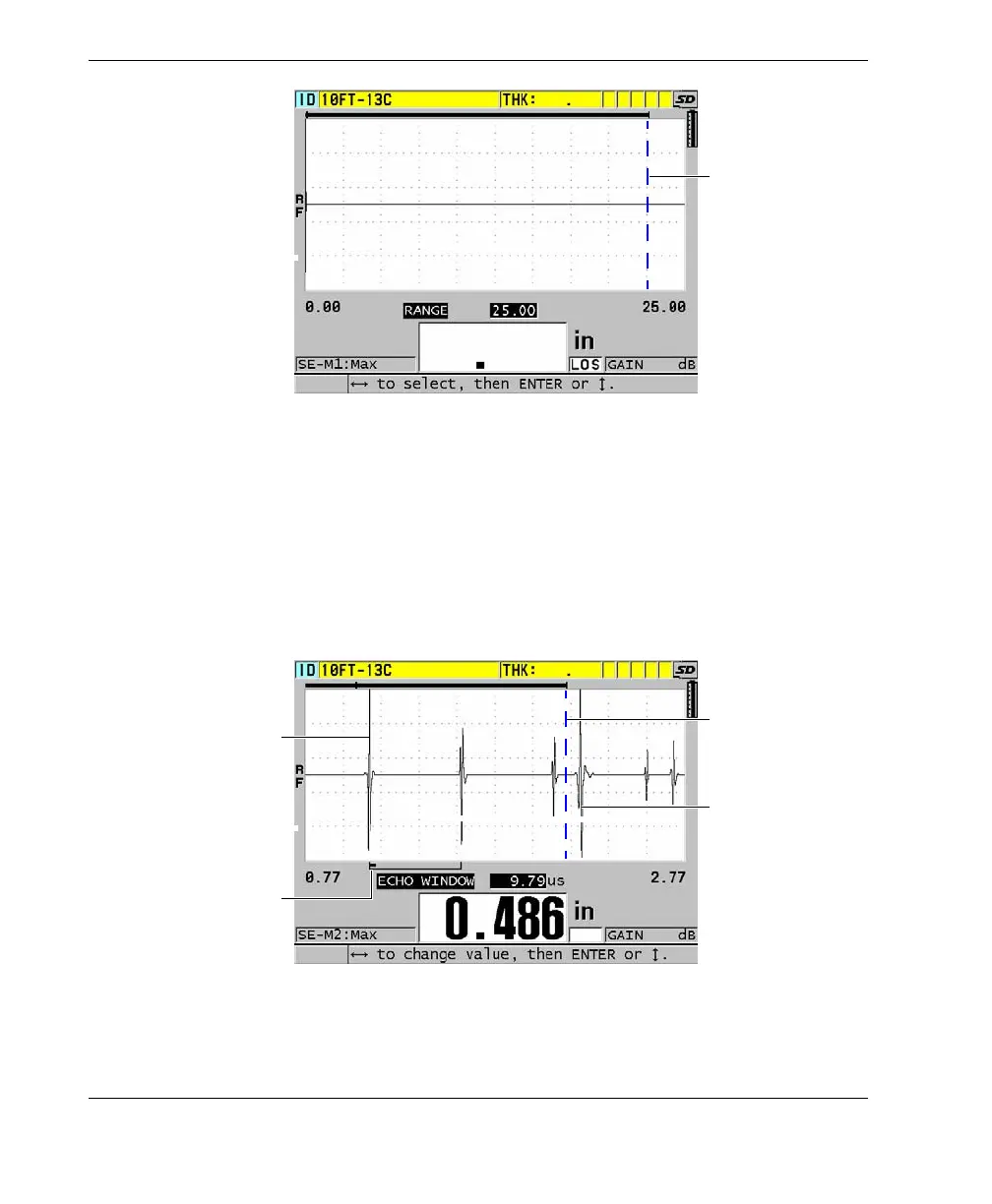

Figure 13‑11 Echo window setting for mode 1
In mode 2 and mode 3, the echo window is limited to the time interval between
successive interface echoes (see Figure 13-12 on page 234). The end of the echo
window must be set ahead of the second interface echo to prevent an incorrect
detection, which in turn determines a maximum measurable thickness. In
applications involving mode 2 and mode 3 immersion measurements, the echo
window placement must apply throughout the range of the water paths to be used.
Figure 13‑12 Echo window setting for mode 2 and mode 3
Echo window
Interface echo
Echo window
Interface blank
Second interface echo

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
