Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Software User Interface Elements 41

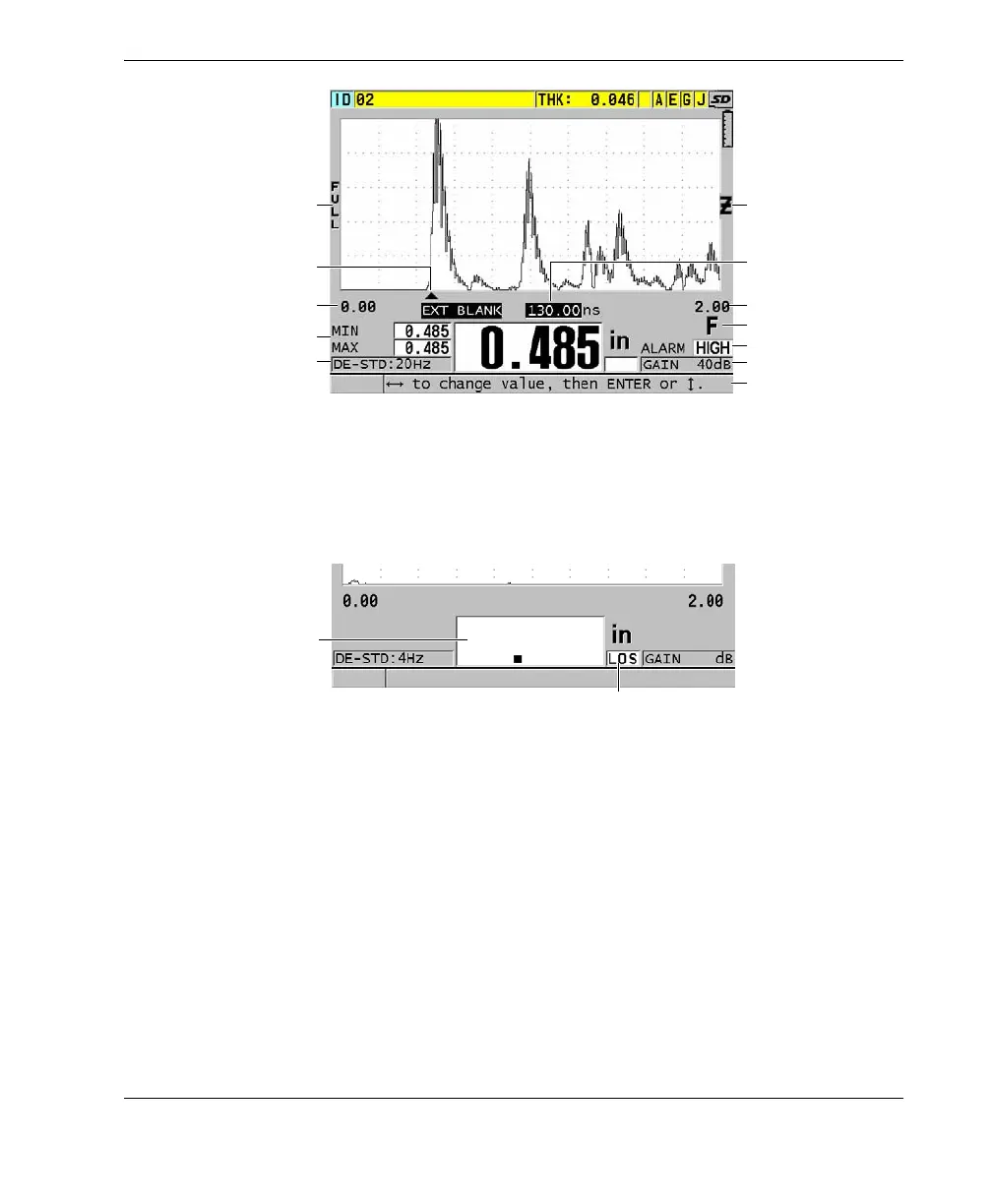

Figure 3‑3 Example of other elements appearing on the measurement screen
The loss-of-signal (LOS) appears and the thickness value is cleared when the
38DL PLUS no longer detects ultrasonic echoes (see Figure 3-4 on page 41).
Figure 3‑4 The loss‑of‑signal (LOS) indicator
3.2 Menus and Submenus
The 38DL PLUS displays menus and submenus when you press some of the front
panel keys. The menu appears at the top-left corner of the screen (see Figure 3-5 on
page 42). If applicable, a submenu also appears, conveniently showing the parameters
available for the highlighted menu command.
Zoom indicator
Rectification indicator
Echo detection marker
Delay value
Minimum/Maximum
Echo detection mode
and update rate
Freeze indicator
Alarm indicator
Gain
Range value
[WAVE ADJ]
parameter value
Help text bar
Loss-of-signal (LOS) indicator
No thickness value

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
