Chapter 8 122

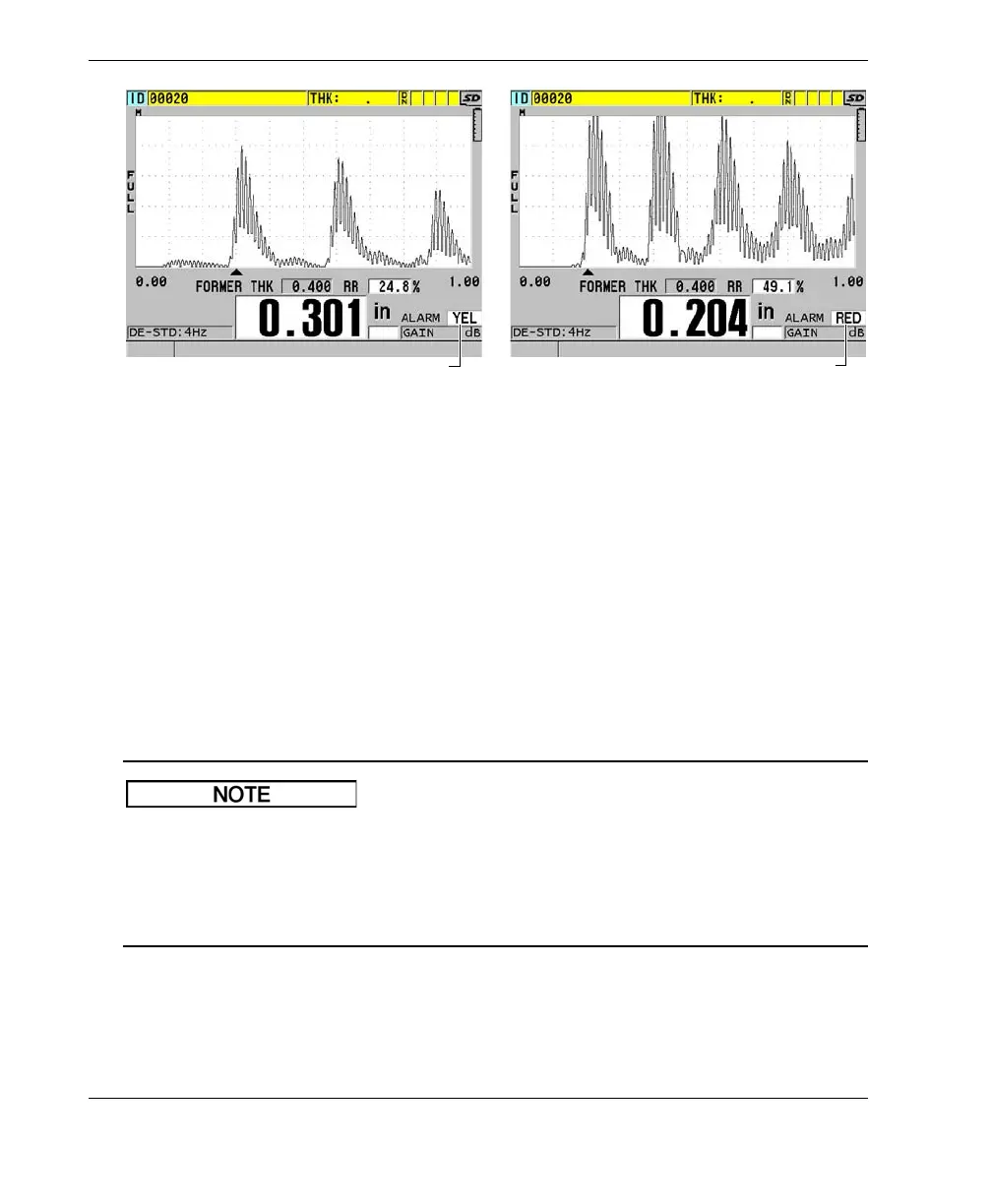

Figure 8‑6 YEL (yellow) and RED alarm indicators
To set the alarm
1. From the measurement screen, press [SETUP MENU].
2. In the menu, select ALARM.
3. In the ALARM screen (see Figure 8-7 on page 123):
a) Set ALARM ENABLE to ON to activate the alarm function.
b) In ALARM MODE, select the desired alarm mode (STANDARD,
PREVIOUS THK [previous thickness], B‑SCAN, or REDUCTION RT
[reduction rate]).
The other parameters vary depending on the alarm mode selection.
The B‑SCAN option appears only when the B-scan mode is active (see “Using the
B-Scan” on page 144).
The REDUCTION RT option appears only when the active file is configured with the
FILE DATA MODE parameter set to REDUCTION RT (see “File Data Modes” on
page 182).
YEL alarm indicator
RED alarm indicator
NOTE

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
