DMTA-10004-01EN, Rev. D, November 2016
Chapter 14
250

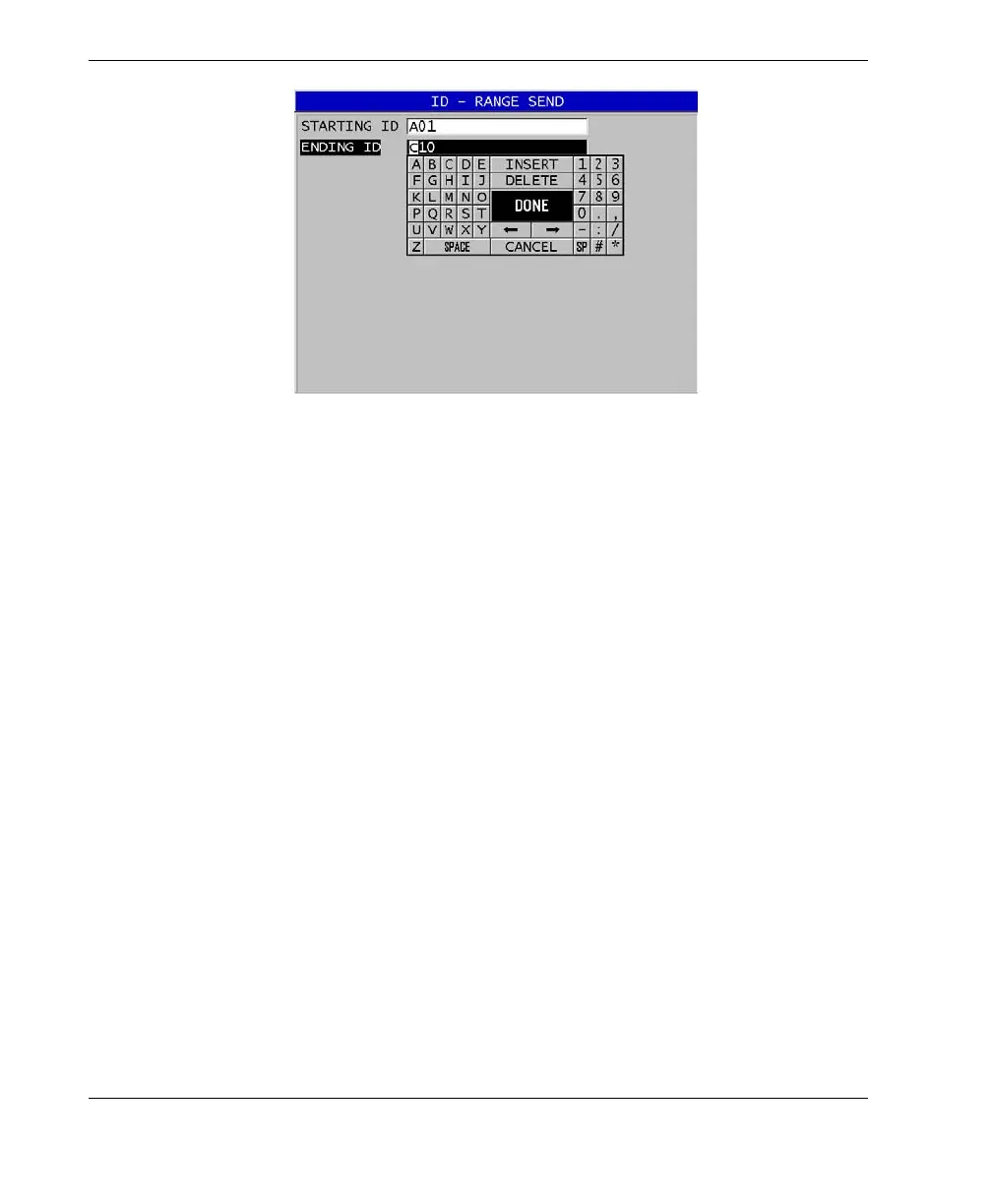

Figure 144 Identifying a range of ID numbers to send
4. Enter the STARTING ID and the ENDING ID of the desired range of ID
numbers that you want to transmit.
5. Select SEND.
The gage transmits the data for the specified range.
14.4.3 Sending the Currently Displayed Measurement (RS-232)
You can transmit the current displayed measurement data only. This function is useful
when the 38DL PLUS is continuously connected to an external device (printer, data
collector, or computer) and you need to collect only data on command.
To perform a single send
1. Ensure that the RS-232 communication is configured correctly (see “Setting Up
RS-232 Serial Communication” on page 245).
2. Setup the desired measurement screen on the 38DL PLUS.
3. Make a thickness reading.
4. Press [SAVE/SEND] briefly (release in less than one second).
The displayed measurement data with its appropriate setup flags is transmitted
and the instrument returns to the original measurement screen.
