DMTA-10004-01EN, Rev. D, November 2016
Chapter 15
270
To assess the software diagnostic
1. Press [2nd F], [SETUP MENU] (SP MENU).
2. In the menu, select SW DIAG.
The SW DIAG screen appears, showing the log of errors (see Figure 15-4 on
page 270).

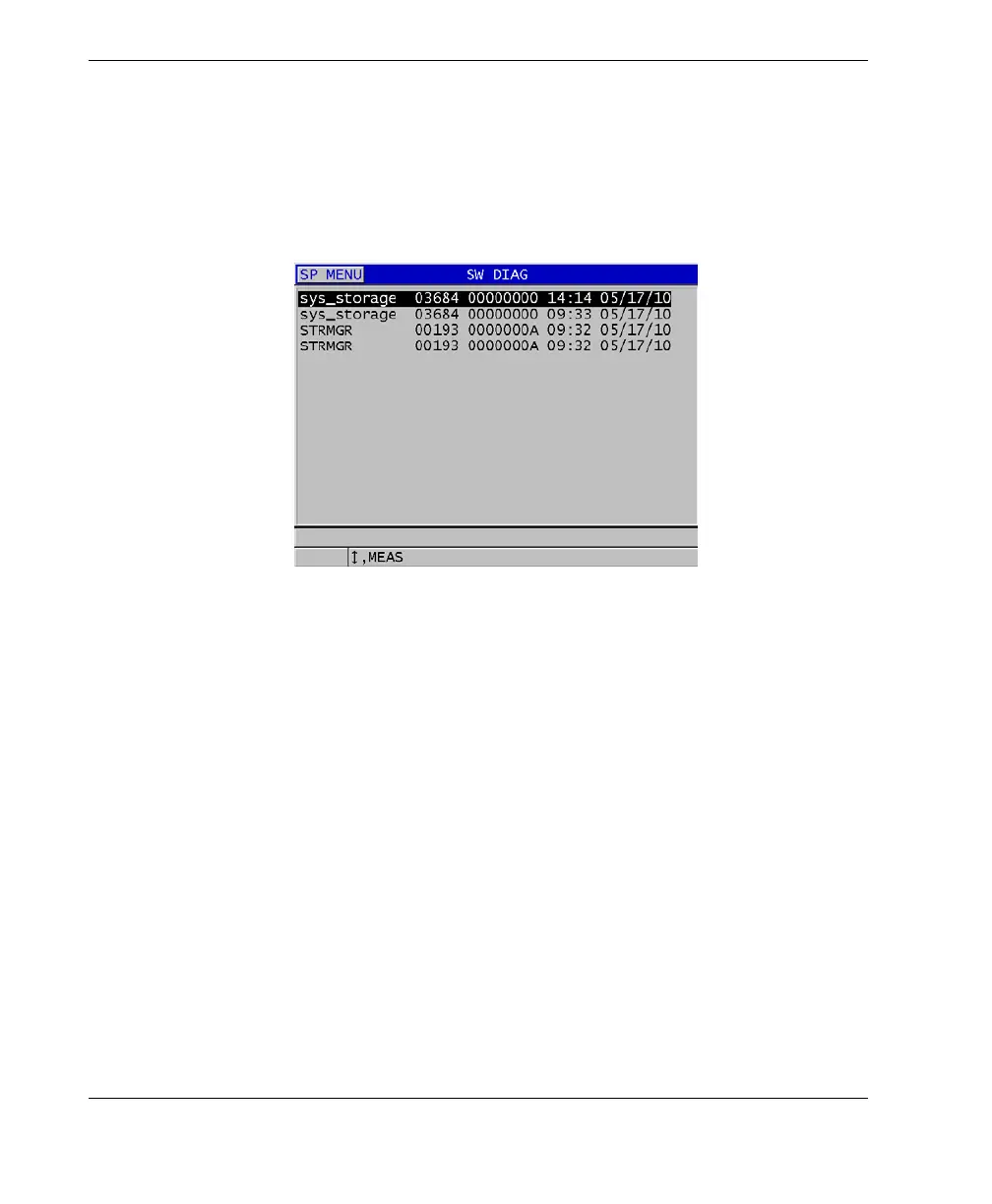

Figure 154 Example of the SW DIAG screen
3. Press [MEAS] to return to the measurement screen.
15.7 Viewing the Instrument Status
The STATUS screen lists important information about the instrument. The status
screen shows the following information:
Current instrument internal temperature
Current battery charge level
Instrument model
Software release date (build date)
•Software version
Hardware version
Options code (S/N) to be communicated to Olympus for software option
activation
