Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Managing Communications and Data Transfer 257

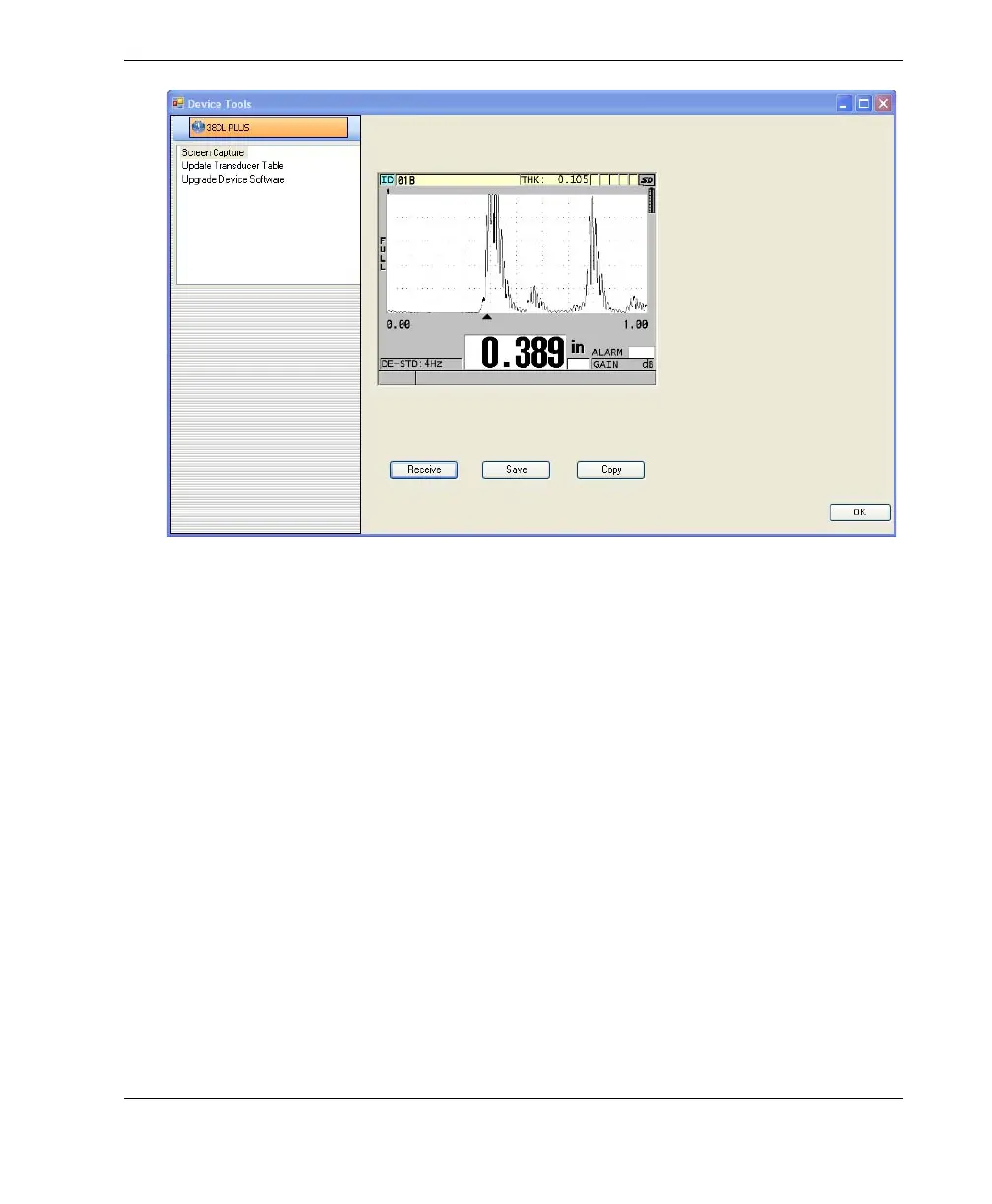

Figure 14‑8 The Device Tools dialog box with a screen capture
14.5.2 Sending a Screen Capture to the External microSD Card
The 38DL PLUS has the ability to copy the contents of the current screen to the
external microSD card. The screen shot is saved as a bitmap (.bmp) file. You can then
connect the microSD card to a computer and open the file in any program that can
view bitmap (.bmp) files.
To send a screen capture to the external microSD card
1. Ensure that a microSD memory card is inserted in its slot under the I/O door on
the right side of the 38DL PLUS (see Figure 1-5 on page 25).
2. If you inserted the microSD memory card while the 38DL PLUS was turned on,
turn the 38DL PLUS off, and then back on so that it recognizes the presence of the
memory card.
3. Ensure that the function to save a screen capture to the microSD card is enabled:
a) From the measurement screen, press [SETUP MENU].
b) In the menu, select SYSTEM.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
