Instrument Description 27
The [], [], [], and [] keys, together with the [ENTER] key, are used to select
menu items or screen parameters and to change parameter values. Use the [MEAS]
key at any time to return to the measurement screen. The yellow keys are related to
calibration. The blue keys are related to the display configuration.
Table 2 on page 27 lists the key functions available from the 38DL PLUS keypad.

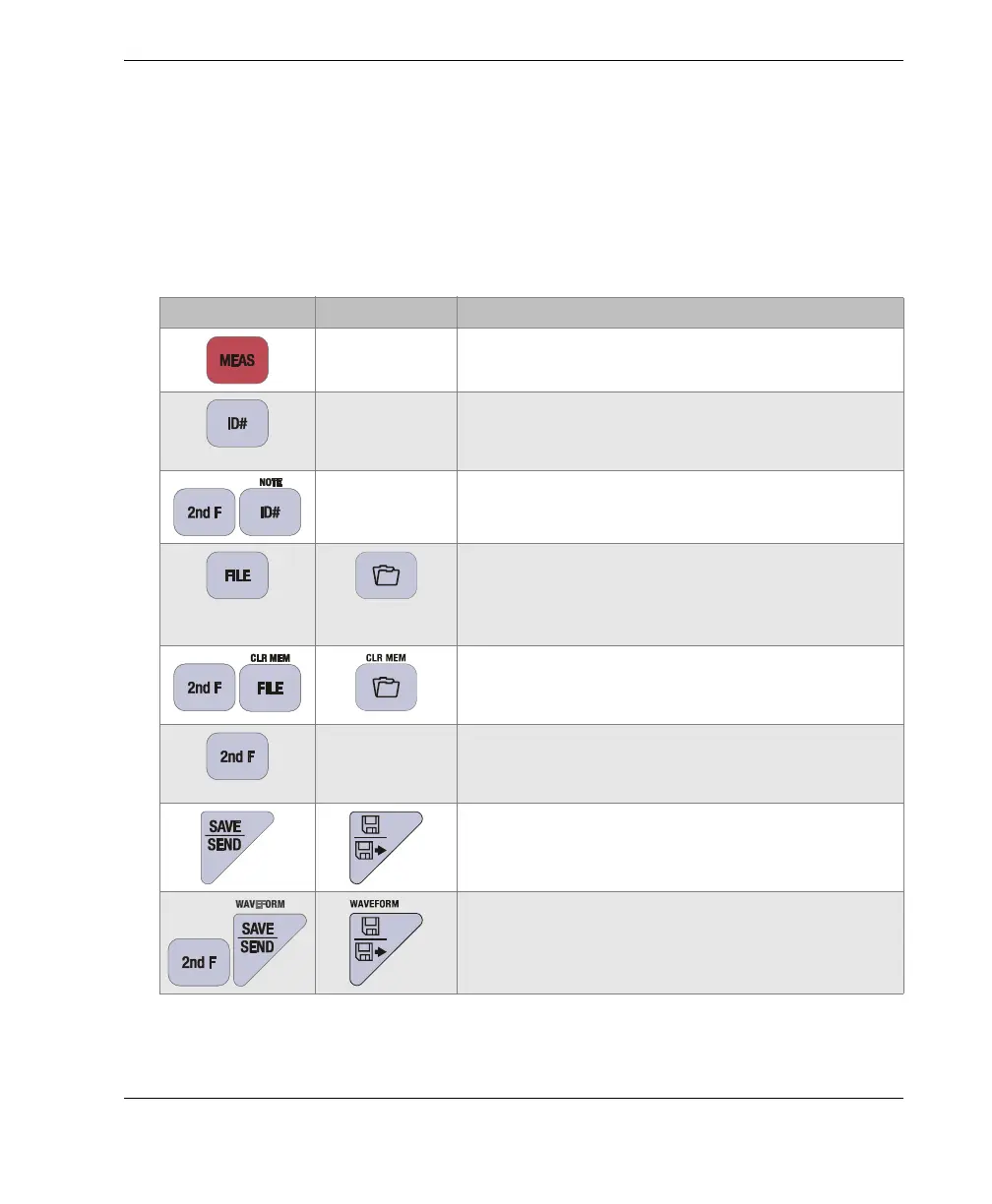

Table 2 Keypad functions
English International Functions
Measurement — Completes the current operation
and returns to the measurement screen.
Identification number — Accesses several
functions related to the ID numbers for the
thickness measurement location.
Note — Allows you to create or select comments
to store at an ID number location.
File — Opens the file menu to access file
commands (open, review, create, copy, edit,
delete, send, import, export, note-copy, memory,
and report).
Clear memory — Acts as an alternative method to
erase an entire file. Also erases a range of data in a
file or a single ID number location.
Secondary function — Needs to be pressed prior
to a key to activate the secondary function of the
key.
Save or send — Stores a measurement and
optionally the corresponding waveform in the
datalogger at the current ID number.
Save waveform — Stores a measurement and the
corresponding waveform in the datalogger at the
current ID number.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
