DMTA-10004-01EN, Rev. D, November 2016
Using the Datalogger
197

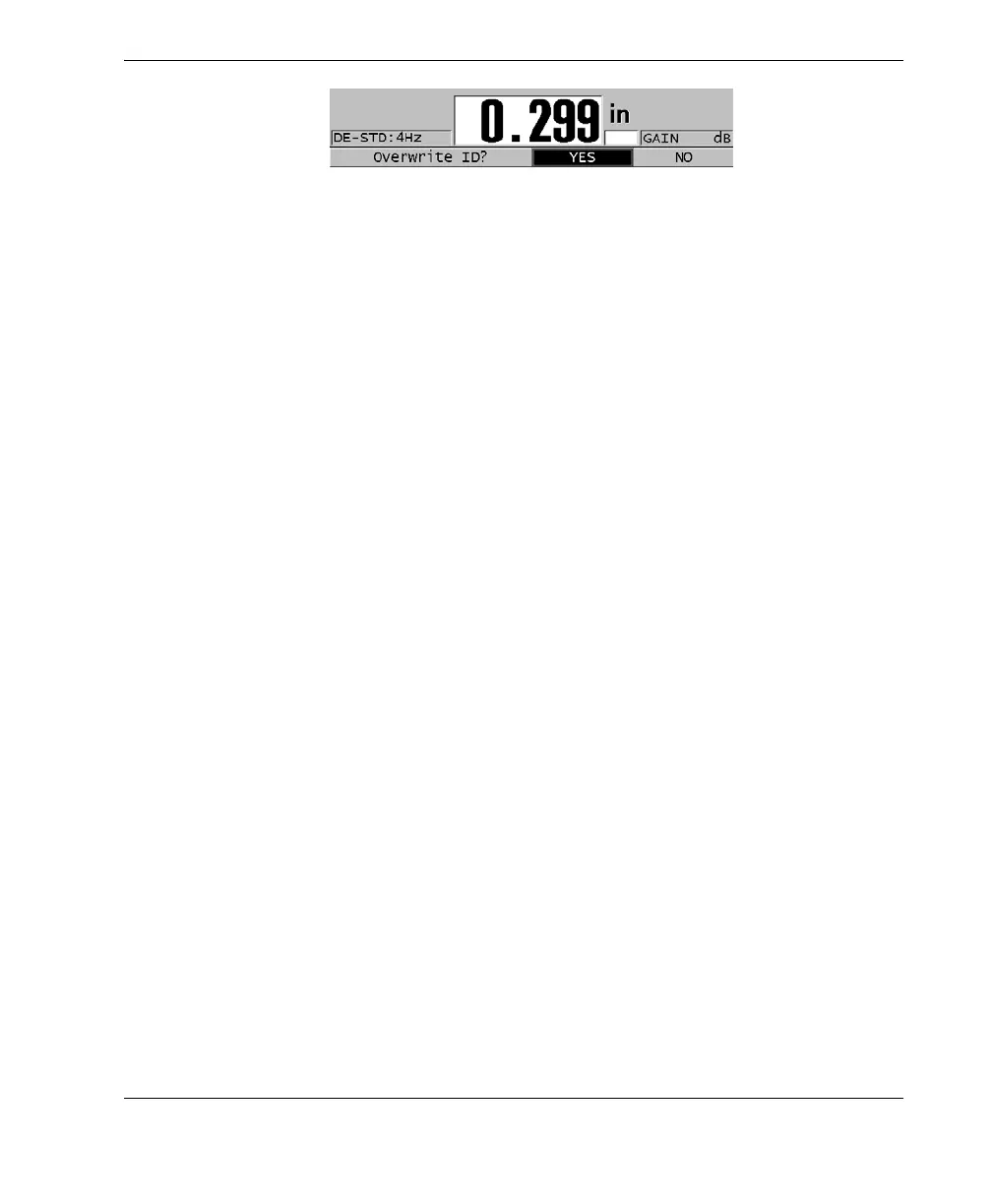

Figure 1126 The ID overwrite protection message
To set the ID overwrite protection
1. From the measurement screen, press [SETUP MENU].
2. In the menu, select MEAS.
3. In the MEAS screen, set ID OVERWRITE PROTECTION to ON or OFF.
4. Press [MEAS] to return to the measurement screen.
11.6 ID Review Screen
You can review the data stored in the active file using the ID review screen. You toggle
the state of the ID review screen by pressing [ID#]. The ID review screen shows the
waveform and the data for the active ID.
Figure 11-27 on page 198 shows an example of ID review screen and describes its
contents. The area under the waveform is reserved for status flags describing the
displayed stored thickness values. The flags are the same single letter abbreviations
for status words that are transmitted by the gage using the send commands (see
“Managing Communications and Data Transfer” on page 243).
