Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Software Options 101
To use the multi-measurement normal mode
1. Create and store a custom setup to measure the thickness of each individual layer
(see “Dual Element Transducer Setups” on page 211).
2. Ensure that the multi-measurement software option is activated (see “Activating
Software Options” on page 92).
3. Press [SETUP MENU].
4. In the menu, select MULTI.
5. In the MULTI screen (see Figure 7-7 on page 101):
a) Set MULTI ENABLE to ON.

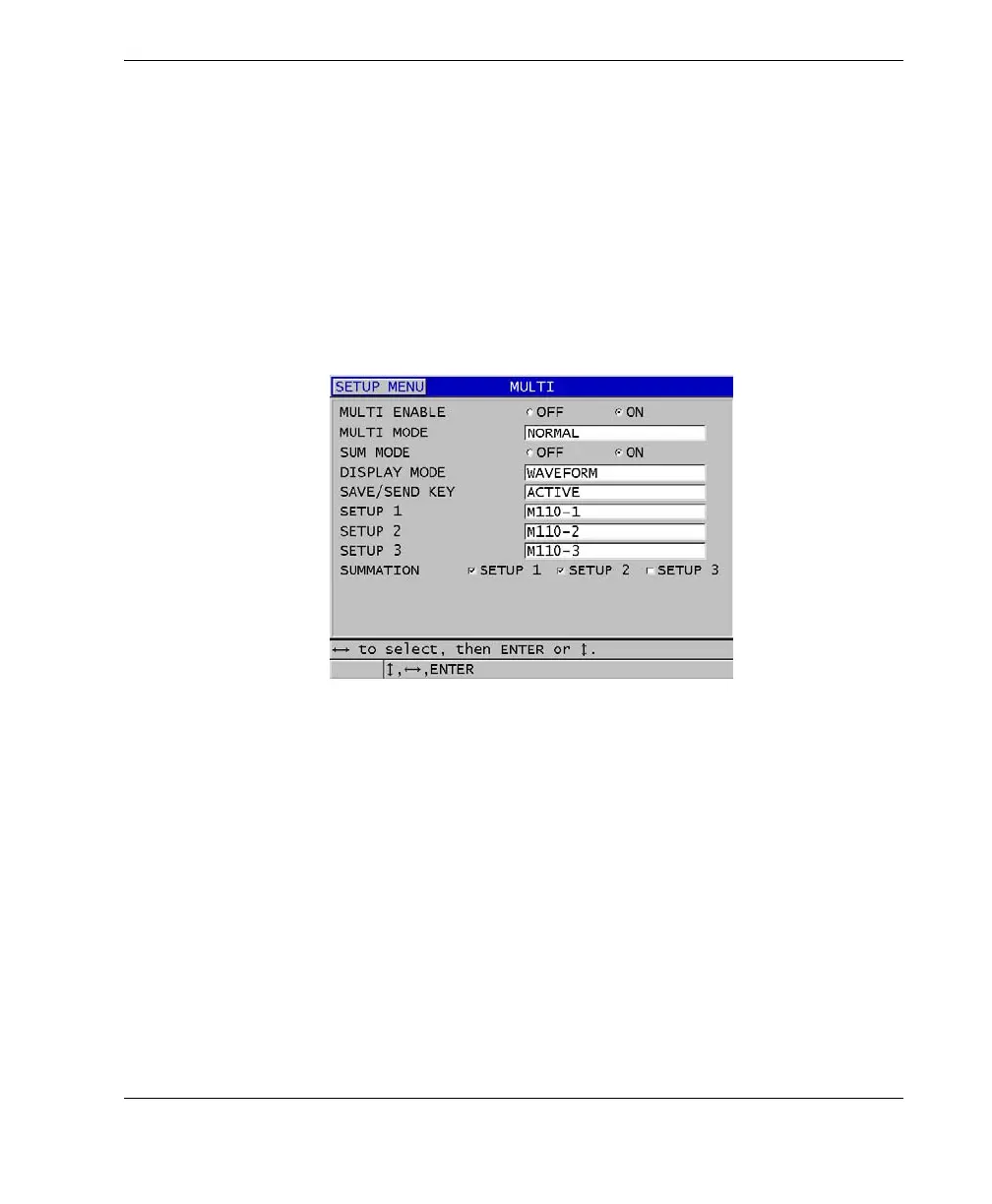

Figure 7‑7 Setting multi-measurement parameters in the normal mode
b) Set MULTI MODE to NORMAL.
c) Set SUM MODE to one of the following options:
○ ON: Measures and displays up to three individual layer thicknesses and
calculates and displays the sum of thicknesses for selected layers.
○ OFF: Measures and displays up to four individual layer thicknesses.
d) Set DISPLAY MODE to (see Figure 7-8 on page 102):
○ WAVEFORM to display the multiple measurements horizontally below
the waveform display.
○ LARGE FONT to display the multiple measurements vertically using
large fonts.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
