2.3.3 Replacing the Battery
The battery is located in a compartment that is accessible from the back of the
38DL PLUS (see Figure 2-4 on page 36).

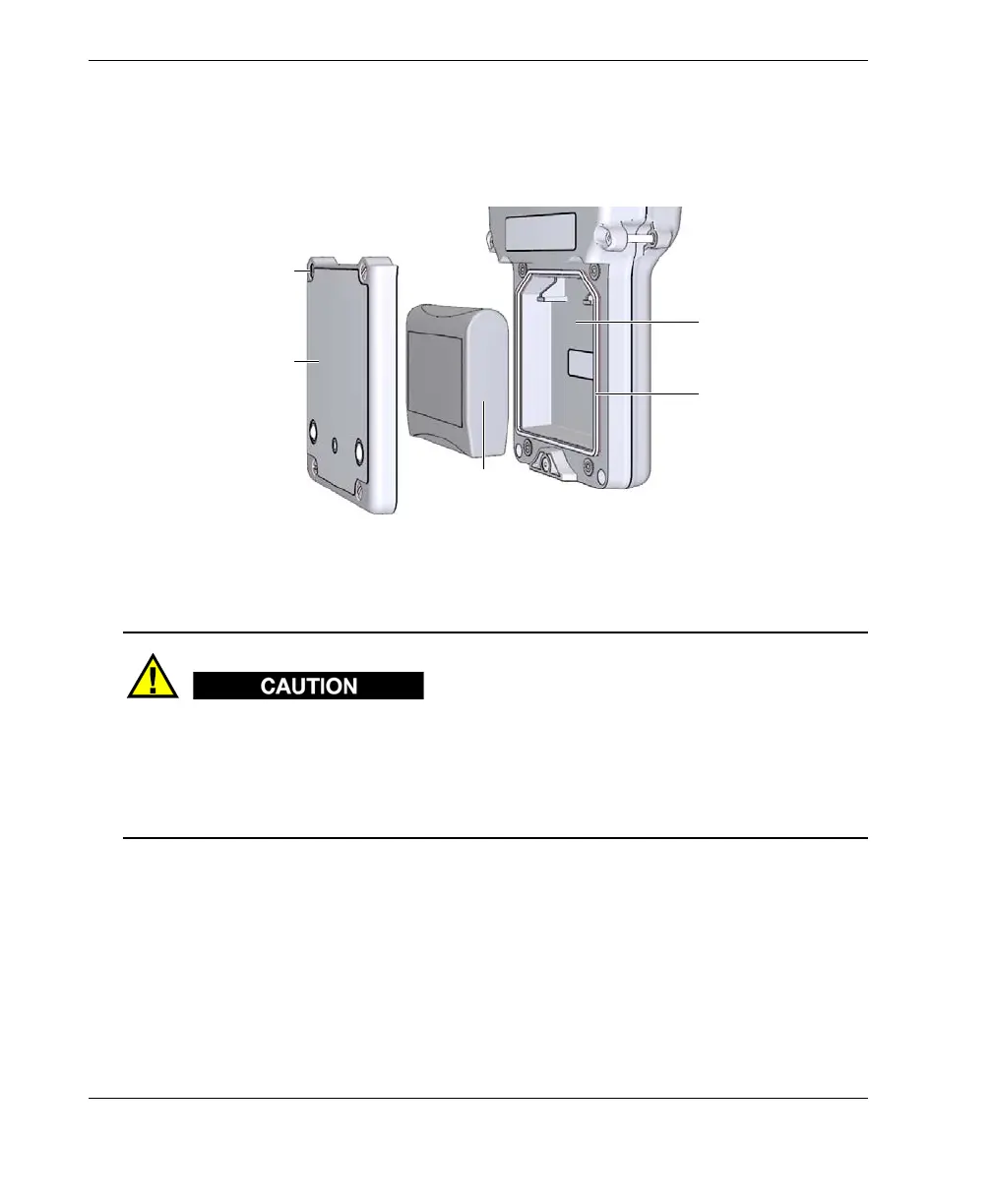

Figure 2‑4 Opening the battery compartment
Do not attempt to replace the battery while the instrument is ON and/or connected to
charger/adaptor. Dispose of used battery promptly. Keep away from children. The
battery used in this device may present a risk of fire or chemical burn if mishandled.
Do not disassemble, heat above 50 °C, or incinerate the battery. Replace the battery
only with an Olympus battery (P/N: 38-BAT [U8760054]).
To replace the battery
1. Disconnect the instrument from the charger/adaptor.
2. Ensure that the 38DL PLUS power is off.
3. Disconnect any other cable connected to the 38DL PLUS.
4. Remove the hand strap.
5. Remove the protective rubber boot.
Battery compartment
door
Screws (4)
Battery compartment
Battery compartment
gasket
Battery (P/N: 38-BAT
[U8760054])
CAUTION
