DMTA-10004-01EN, Rev. D, November 2016
Using the Datalogger
171

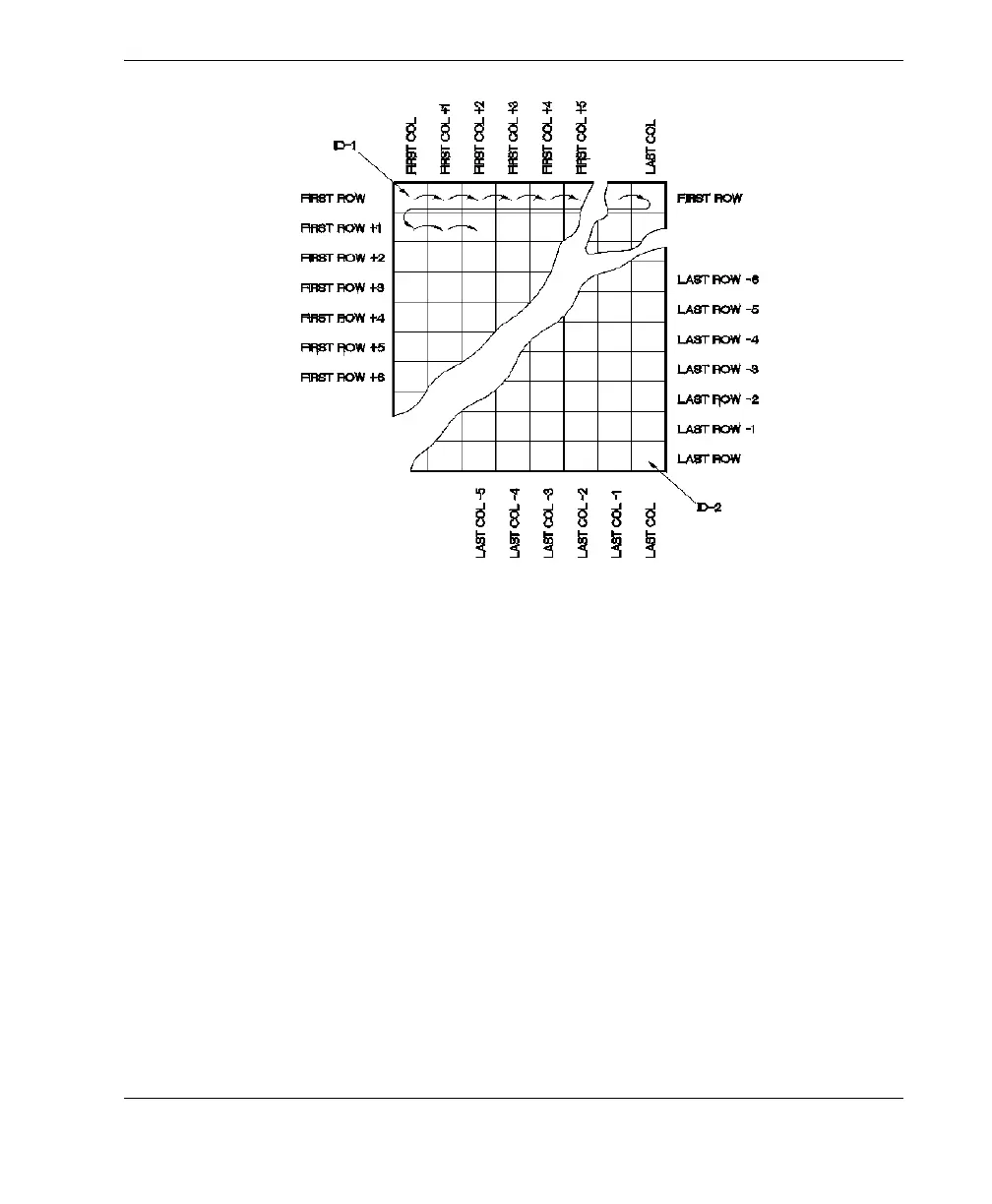

Figure 117 General 2D grid example
A grid structure may associate one dimension of the grid with the physical parts
whose wall thickness is to be measured. The particular measurement points on each
part are then associated with the other dimension of the grid (see the example in
Figure 11-8 on page 172).
