Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Maintaining and Troubleshooting the 38DL PLUS 267

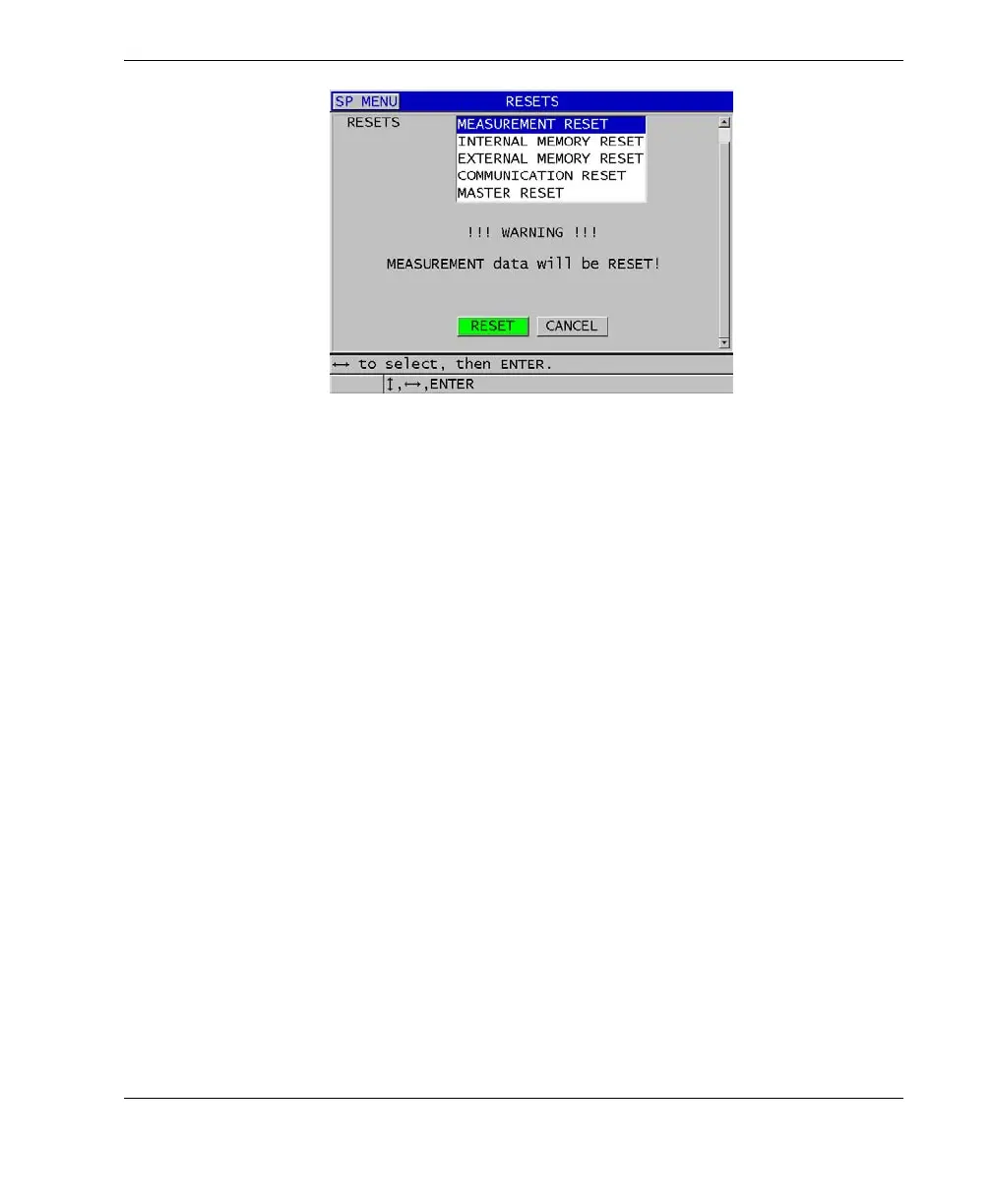

Figure 15‑1 Activating a reset function
15.5 Performing Hardware Diagnostic Tests
The 38DL PLUS includes a function to perform several diagnostic self tests. The tests
can help in localizing a suspected hardware problem or to verify correct hardware
operation. Some tests are designed for Olympus internal testing procedures during
the manufacturing process.
The available tests are:
•Keypad test
•Video test
• Internal microSD card test (Pass or Fail)
• External microSD card test (Pass or Fail)
• Dual element transducer test
• ESS Test (Electronic Stress Screening) [for Olympus internal use only]
• B-scan Test (for Olympus internal use only)
• Battery Test (for Olympus internal use only)
• One-wire test (for Olympus internal use only)
To perform a diagnostic test
1. Press [2nd F], [SETUP MENU] (SP MENU).

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
