3. Software User Interface Elements
The following sections describe the main elements of the 38DL PLUS software screens
and menus.
3.1 Measurement Screen
The 38DL PLUS starts with the measurement screen where you can see the ultrasonic
echo on the waveform display and read the measured thickness value (see Figure 3-1
on page 39). The measurement screen is the main screen of the 38DL PLUS software.
From anywhere in the 38DL PLUS software, simply press [MEAS] to return to the
measurement screen. The power indicator is always present on the right side of the
38DL PLUS screen (see “Using Battery Power” on page 33 for details).

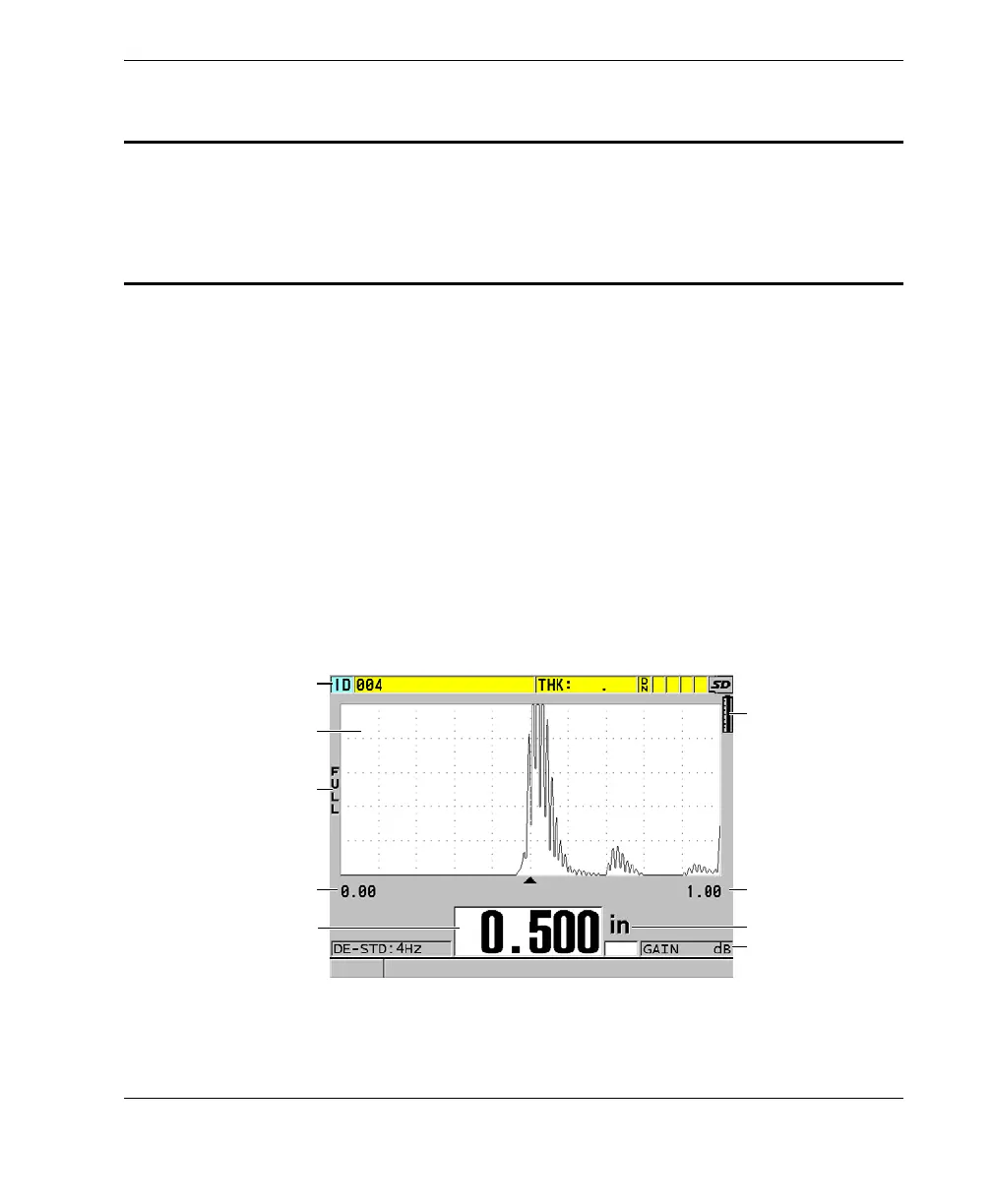

Figure 3‑1 The main elements of the measurement screen
Rectification indicator
Delay
Thickness value
Power indicator
Gain value
Range
Waveform display
(A-scan)
ID bar
Measurement units
