To measure thicknesses
1. Apply couplant to the test block or tested part at the measuring spot.
In general, use a thinner couplant such as propylene glycol, glycerin, or water for
smooth material surfaces. Rough surfaces require a more viscous couplant such as gel
or grease. Special couplants are required for high temperature applications.
2. Using moderate to firm pressure, couple the tip of the transducer to the surface of
the test material, and keep the transducer as flat as possible on the material
surface (see Figure 5-9 on page 76).

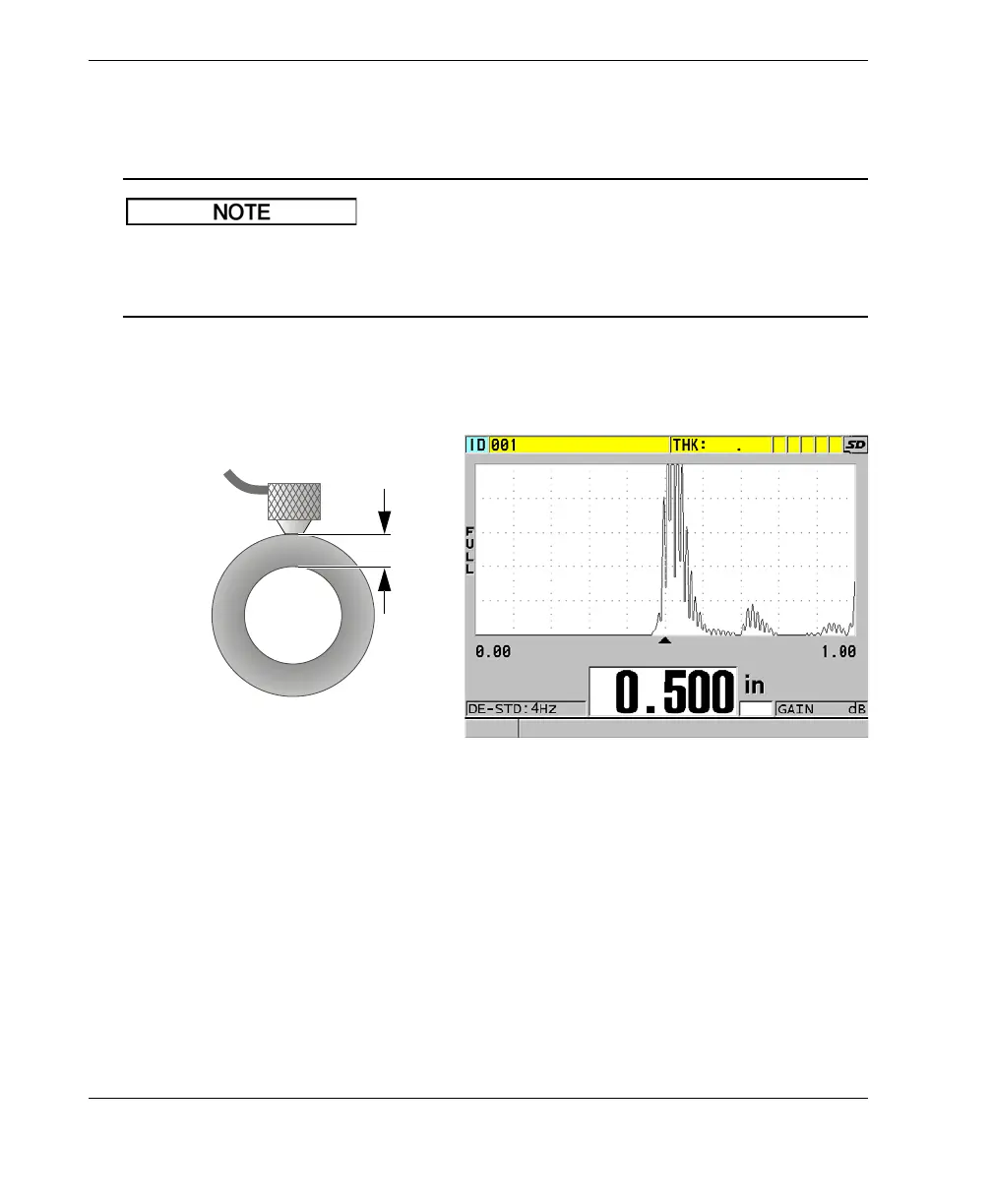

Figure 5‑9 Coupling dual element transducer and reading the measured thickness
3. Read the measured thickness value for the tested part.
5.4 Saving Data
The 38DL PLUS datalogger is a file based system where one file is opened at a time.
The active file stores a measurement at a thickness measurement location ID. Each
time you press [SAVE/SEND], the displayed value is saved to the active file at the
NOTE
12.7 mm
(0.500 in.)

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
