Transducer Setups” on page 211 for information about creating custom setups. All
custom setups included in the multi-measurement configuration must use the same
PROBE TYPE.
7.4.1 Active Measurement
With the multi-measurement, one of the displayed measurement is the active
measurement. The value of the active measurement is highlighted and is repeated at
the bottom of the screen. The corresponding waveform appears in the waveform
display (see Figure 7-6 on page 100).

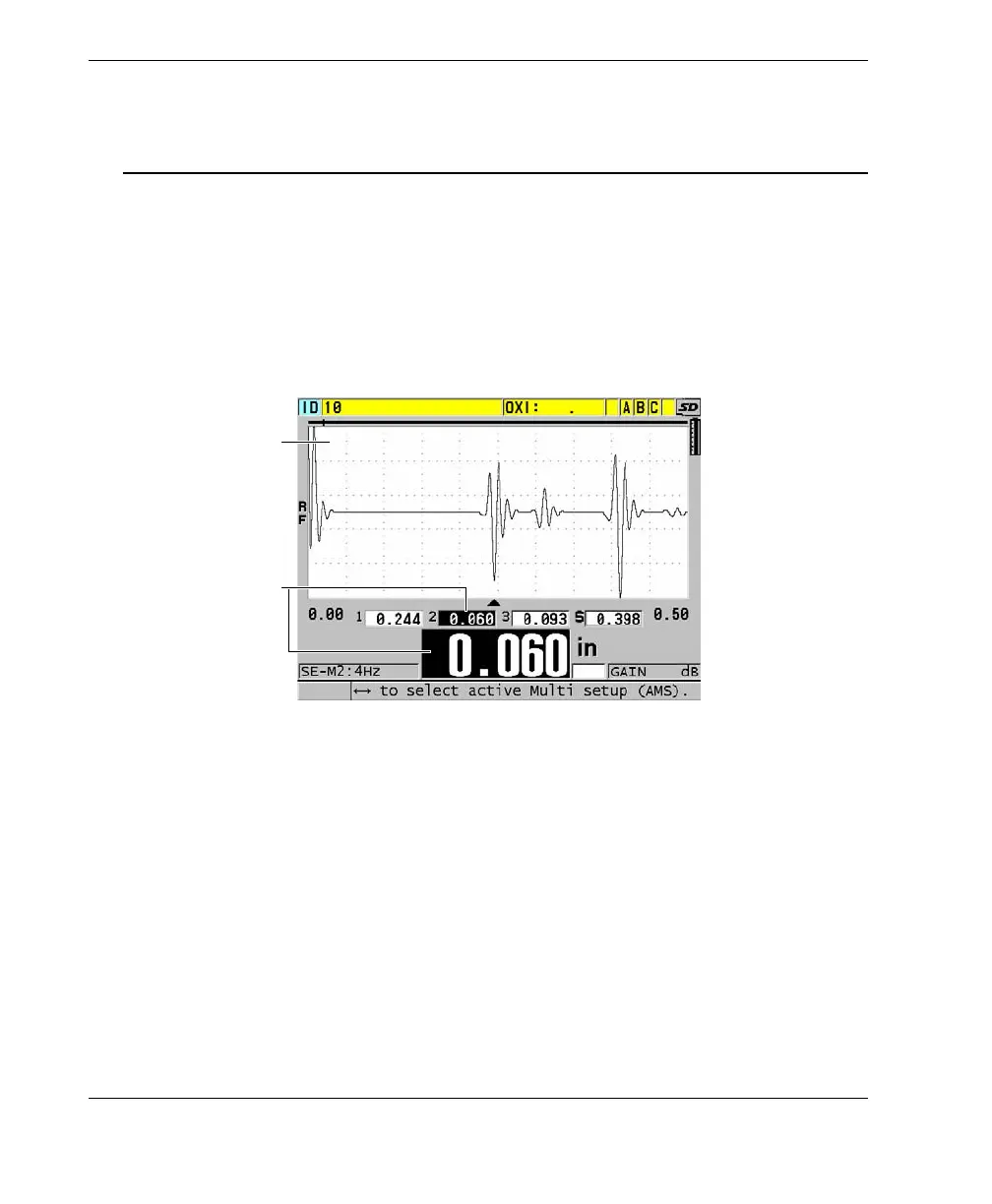

Figure 7‑6 Waveform display screen
To change the active measurement
1. Enable the multi-measurement mode (see “Using the Multi-Measurement with
the Soft Contact Mode” on page 102).
2. Use the arrows keys to change the active measurement.
7.4.2 Using the Multi-Measurement Normal Mode
Use the multi-measurement normal mode unless you want to show thickness values
as a percentage of the total thickness or when you want to inspect soft contact lenses.
Active measurement
value
Waveform
corresponding to the
active measurement

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
