DMTA-10004-01EN, Rev. D, November 2016
Chapter 3
42

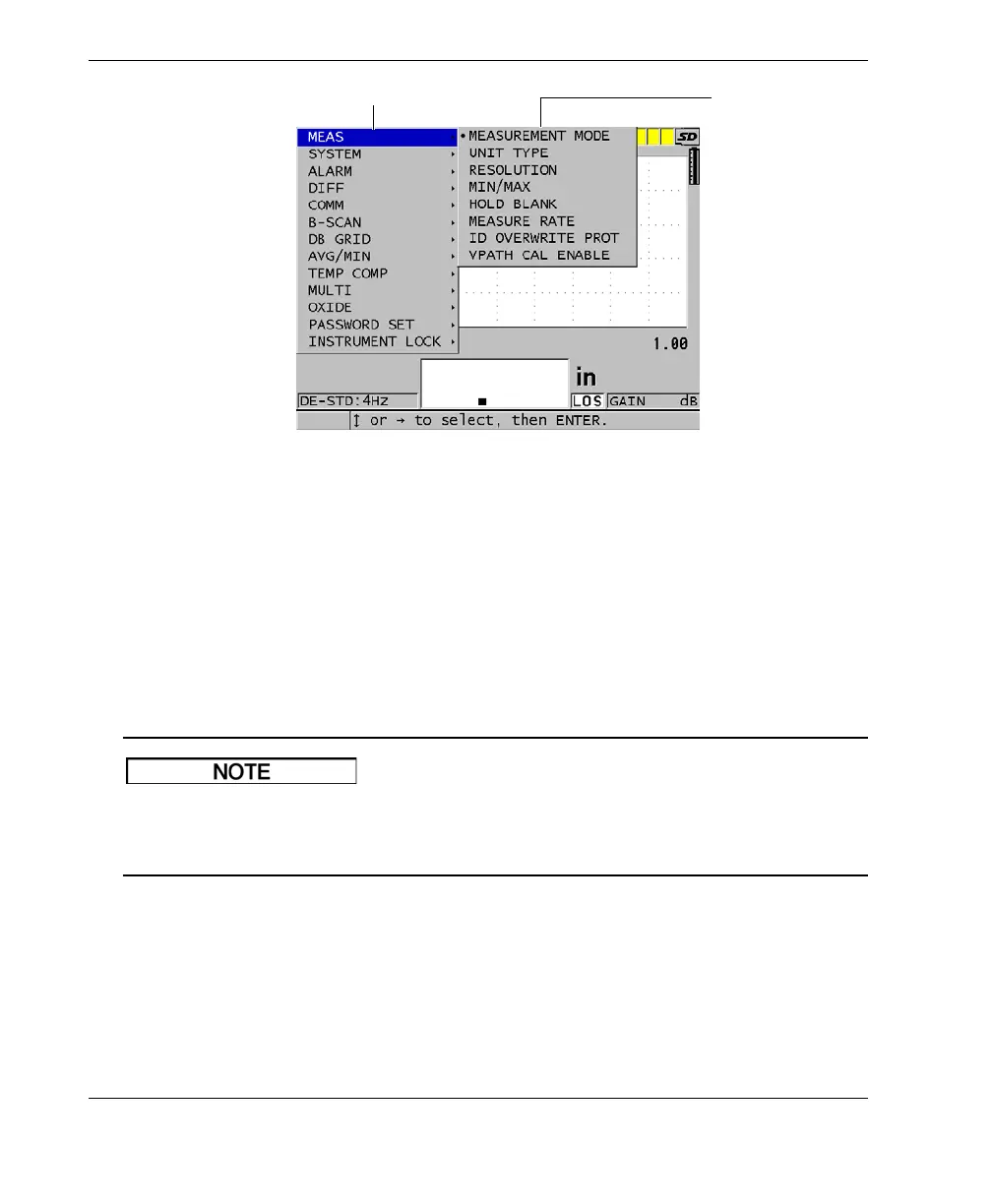

Figure 35 Menu and submenu example
To select a menu or a submenu command
1. Press one of the front panel keys to display a menu.
2. Use the [] and [] keys to highlight the desired menu command.
3. If applicable and needed, use the [] key to move the highlight to the submenu,
and then use the [] and [] keys to highlight the desired submenu command.
4. Press [ENTER] to select the highlighted menu, or submenu command.
In the remainder of this document, the above procedure is summarized by simply
stating to select a specific menu or submenu command. For example: “In the menu,
select MEAS.”
3.3 Parameter Screens
The 38DL PLUS parameters are logically grouped in parameter screens that you
access using front panel keys or menu commands. Figure 3-6 on page 43 shows the
MEAS parameter screen as an example.
Menu
Submenu for the
highlighted menu
command
