To avoid the risk of injuries or equipment damage, use only the AC power cord
supplied with the 38DL PLUS. Do not use this AC power cord with other products.
The DC power, USB/RS-232 communication, and Transmit/Receive probe connectors
are located on the top end of the 38DL PLUS (see Figure 1-4 on page 24).

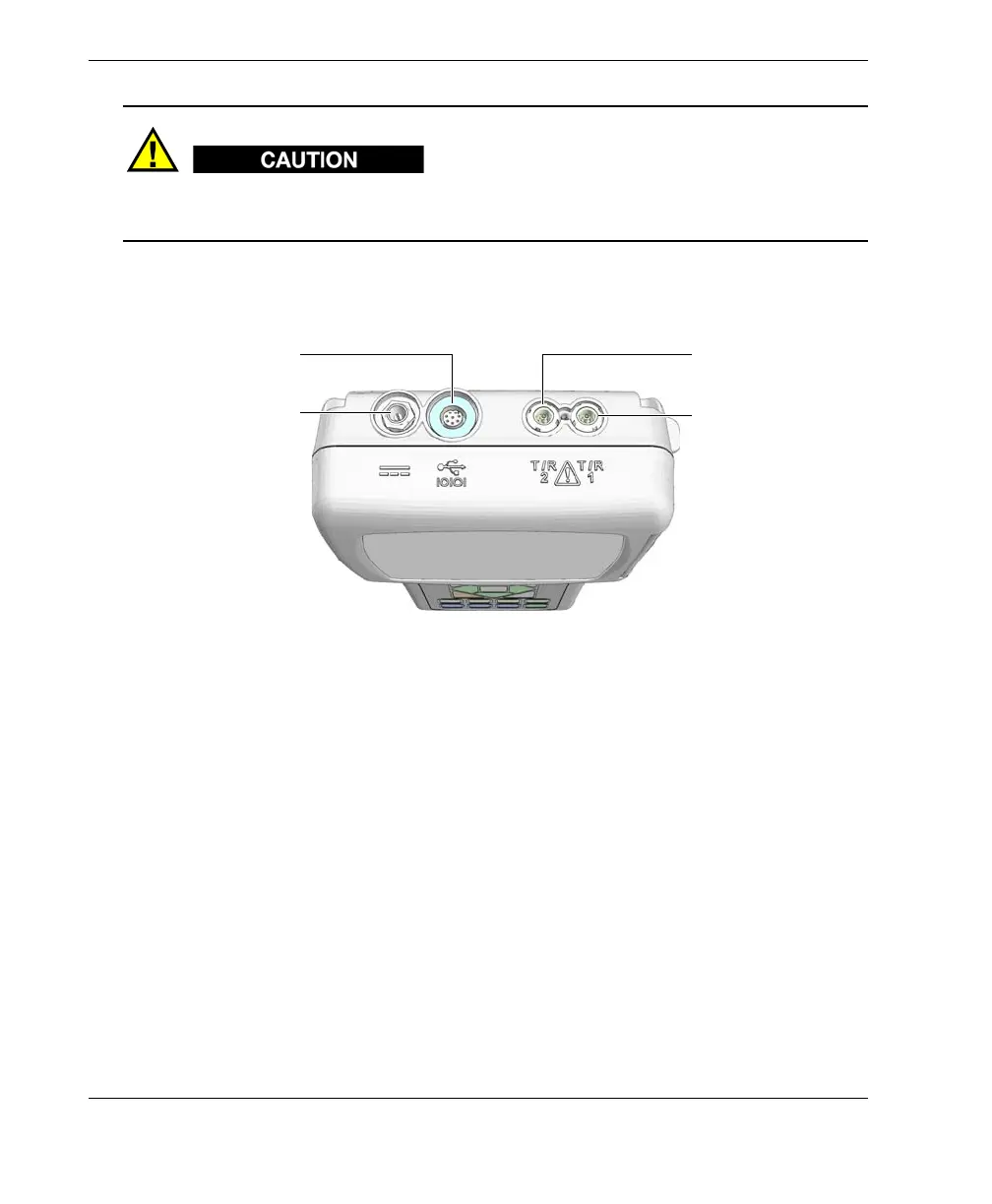

Figure 1‑4 The top end connectors
The USB client connector, the VGA output connector, and the external microSD
memory card slot are located on the right side of the instrument, hidden behind the
I/O door (see Figure 1-5 on page 25).
CAUTION
DC power connector
USB/RS-232 serial
communication connector
Transmit/Receive
transducer connector 2
Transmit/Receive
transducer connector 1

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
