Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Software User Interface Elements 45

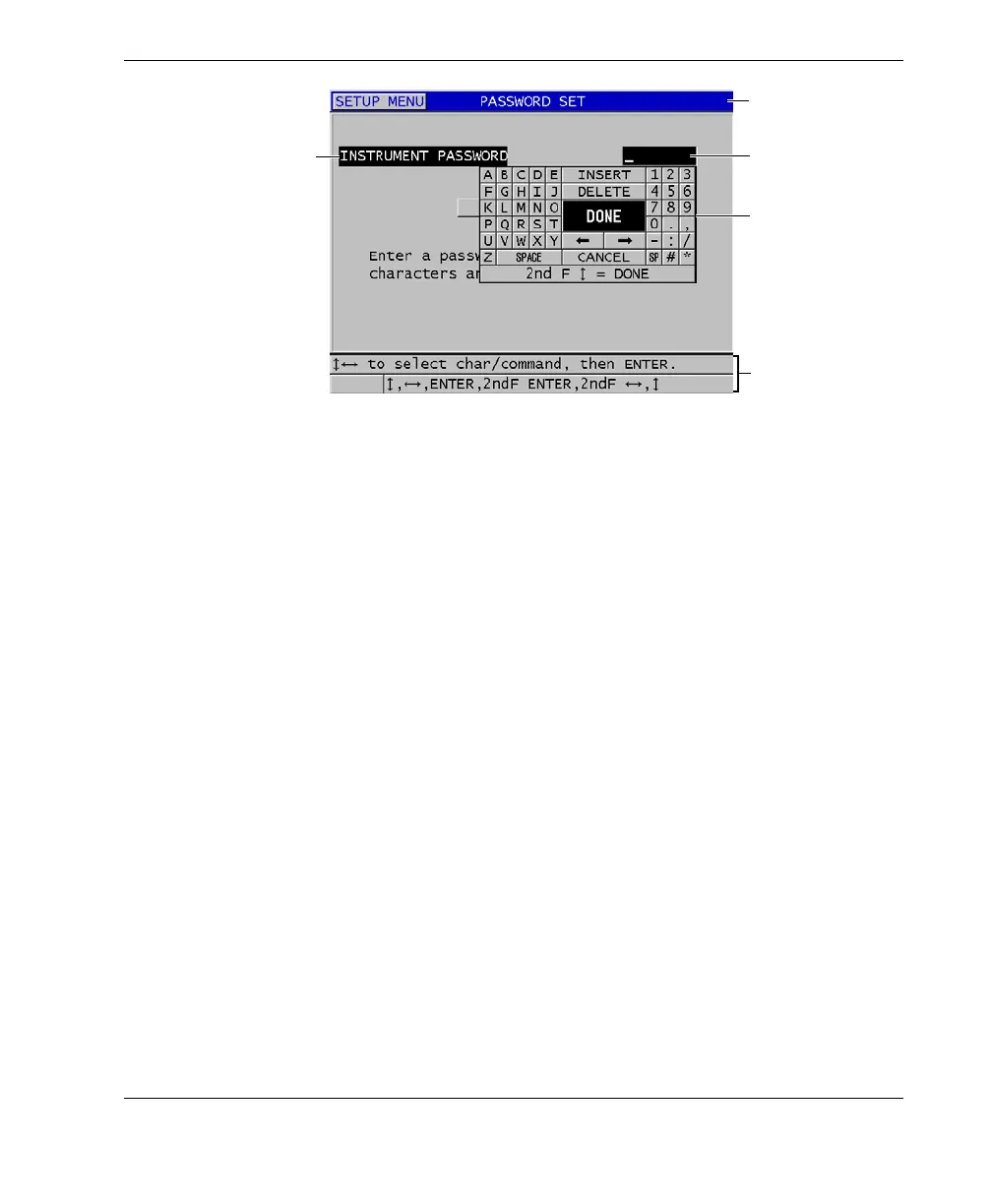

Figure 3‑7 Example of the virtual keyboard
To edit an alphanumeric parameter value using the virtual keyboard
1. Select an alphanumeric parameter.
The virtual keyboard appears.
2. Use the [], [], [], and [] keys to highlight the character that you wish to
enter, and then press [ENTER].
The selected character appears in the parameter value text box and the cursor
moves to the next character position.
3. Repeat the previous step to enter other characters.
4. If you need to move the position of the cursor in the value text box, on the virtual
keyboard, highlight either the left or right arrow button (below DONE), and then
press [ENTER].
The cursor moves by one character position.
5. When you need to delete a character:
a) Move the cursor to the character you wish to delete.
b) On the virtual keyboard, highlight DELETE, and then press [ENTER].
6. When you need to insert a character:
a) Move the cursor to the character in front of which you wish to insert a
character.
b) On the virtual keyboard, highlight INSERT, and then press [ENTER].
c) Enter the desired character in the inserted space.
Help text bars
Title bar
Selected alphanumeric
parameter
Virtual keyboard
Parameter value text
box

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
