DMTA-10004-01EN, Rev. D, November 2016
Using the Datalogger
207

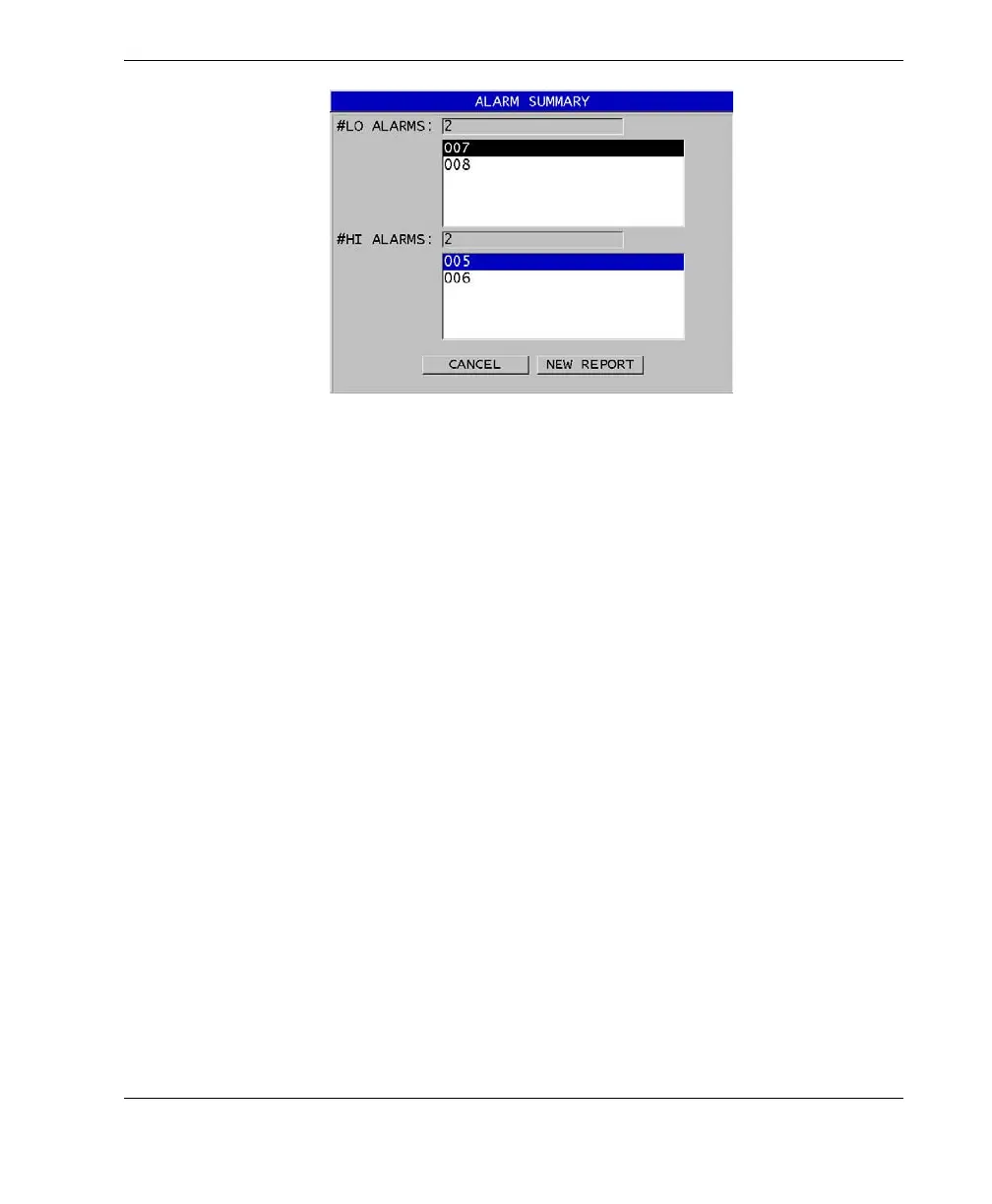

Figure 1135 The ALARM SUMMARY report result screen
c) Review the low and the high alarm location lists.
d) Select CANCEL to return to the measurement screen or NEW REPORT to
generate another report.
8. In the MIN REVIEW screen:
a) Select the file for which you want to generate the report.
b) Select REPORT.
The MIN/MAX SUMMARY report result screen opens with the minimum
thickness ID highlighted (see Figure 11-36 on page 208).
