Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Chapter 11 194
b) Press [ENTER].
A checkmark appears in the check box to the left of the letter code.
c) Repeat steps 2.a to 2.b when you want to associate other notes (up to four).
d) In ID, enter the ID or the start ID of the range to which you want to associate
the note(s).
e) In TO, enter the ID or the end ID of the range to which you want to associate
the note(s).
f) Select SAVE to save the note list to the file.
The letter codes for the checked notes are assigned to the selected ID range.

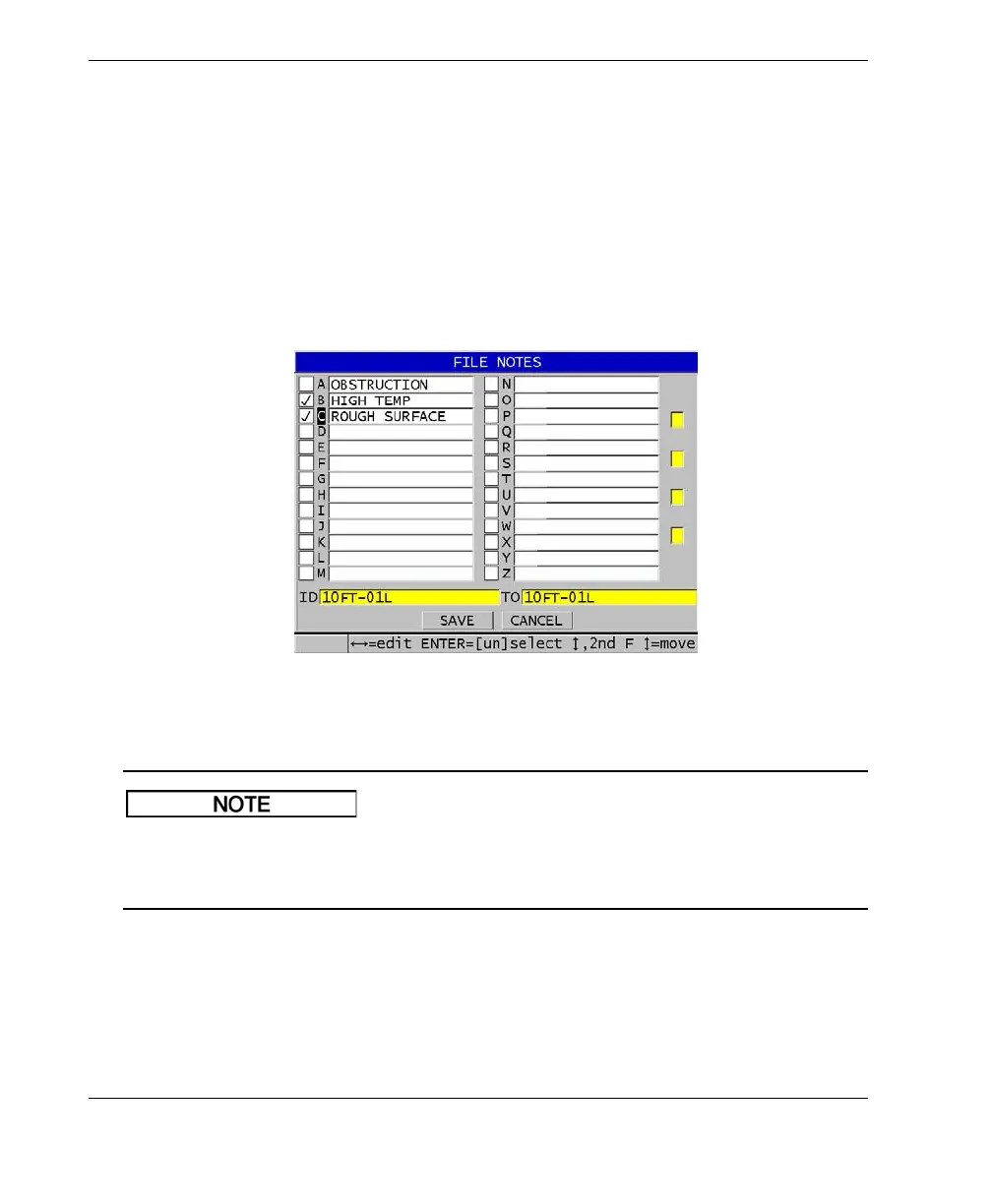

Figure 11‑24 Selecting a note from the notes table
The letter codes are automatically untagged every time you press [SAVE/SEND].
Therefore, you must select the desired comment code before using the [SAVE/SEND]
key.
11.4.3 Deleting a Note from a File
You can delete a note from a file.
NOTE

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
