Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Using the Datalogger 185

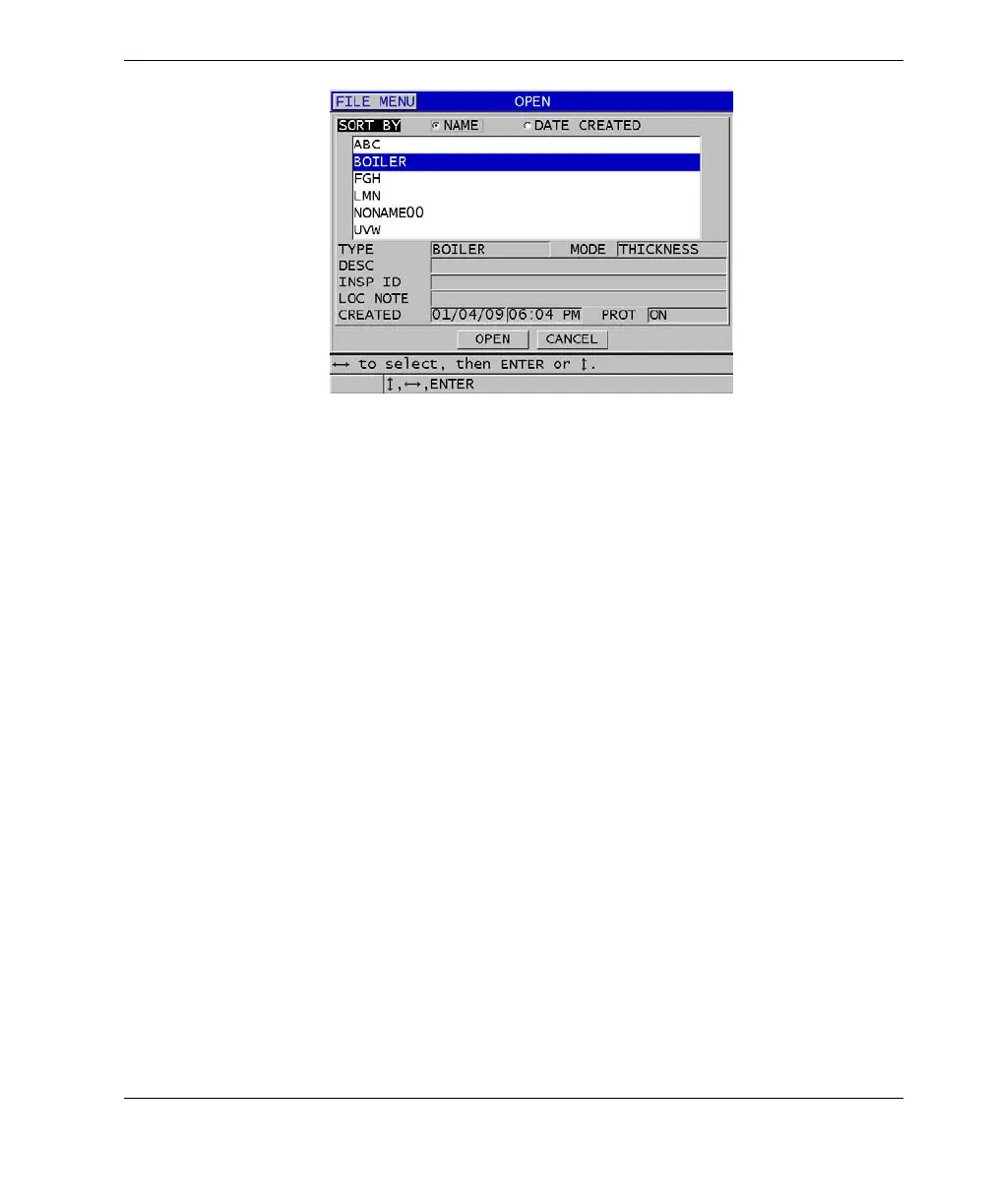

Figure 11‑16 Opening a file
11.3.2 Copying a File
You can duplicate a file that already exists in the datalogger. The file copy function is
useful when you need to create a new file with the exact same ID number structure as
a previously created file. You can also choose to copy the thickness data.
The file copy only allows you to copy an existing file in the internal memory to the
internal memory. Use the file import and export functions to copy data between the
internal memory and the external microSD card.
To copy a file
1. From the measurement screen, press [FILE].
2. In the menu, select COPY.
3. In the COPY screen (see Figure 11-17 on page 186):
a) In the list, select the source file.
b) In COPY NAME, enter the file name for the destination file.
c) Set COPY THICKNESS DATA to YES when you want to also copy the
thickness readings from the original file into the new file.
d) Select COPY.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
