Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Chapter 10 138
3. Use the [] or [] keys to respectively increase or decrease the blank value until
you exclude early unwanted echoes from detection.
The extended blank horizontal bar just above the waveform display indicates the
extended blank length (see Figure 10-2 on page 138).

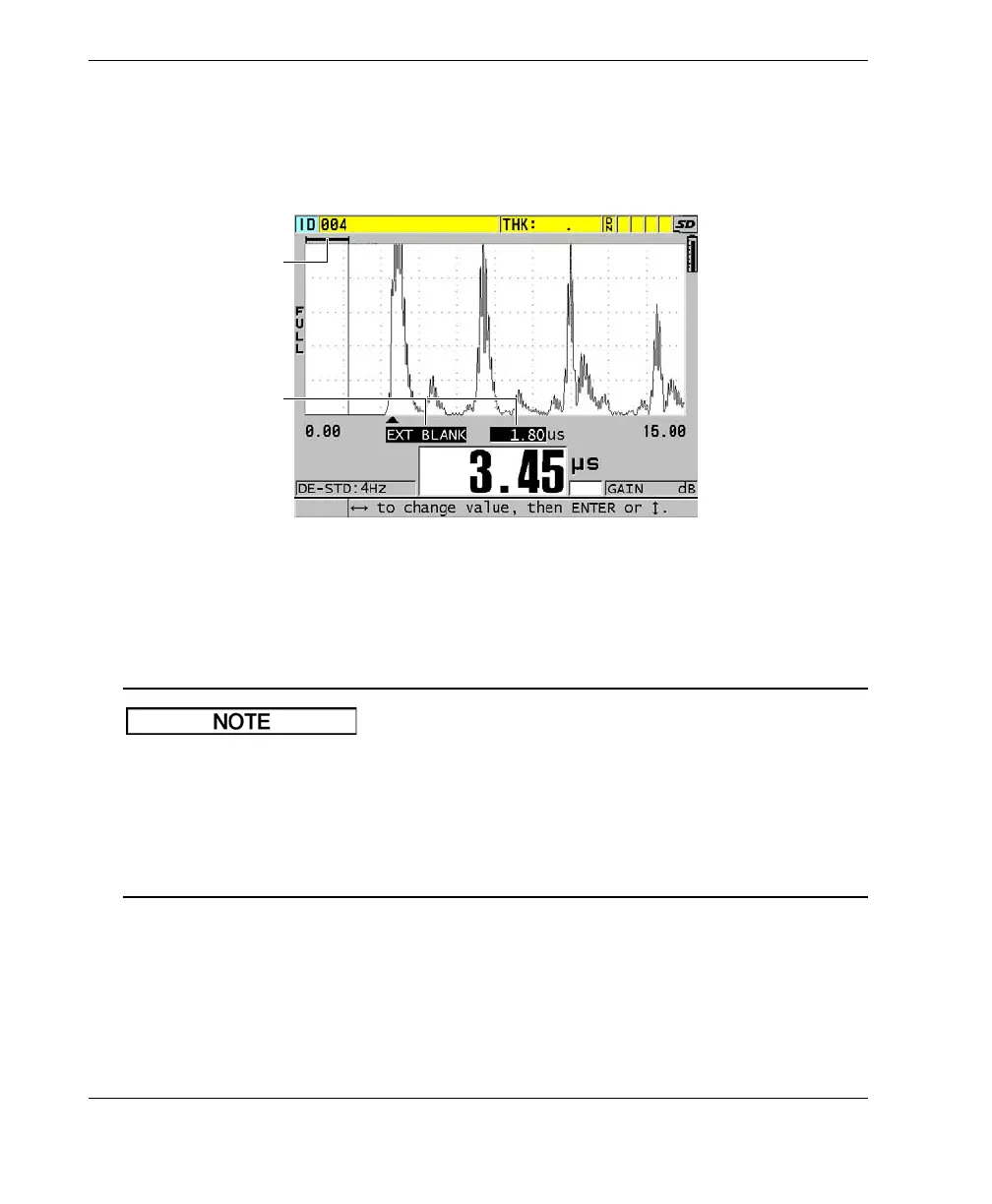

Figure 10‑2 Adjusting the extended blank length
4. To turn off the extended blank, use the [] key to decrease the extended blank
value back to zero.
If the measurement point changes when the extended blank is moved, echoes can
change in height. This is because in the normal waveform display mode, the
38DL PLUS attempts to adjust the height.
The instrument also attempts to make the most accurate measurement by identifying
the beginning of an echo. When the extended blank is positioned within an echo
instead of to its left, the gage is unable to make an accurate detection.
Waveform adjustment
parameter and value
Extended blank bar
NOTE

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
