Maintaining and Troubleshooting the 38DL PLUS 271
To view the instrument status
1. Press [2nd F], [SETUP MENU] (SP MENU).
2. In the menu, select STATUS (see Figure 15-5 on page 271).

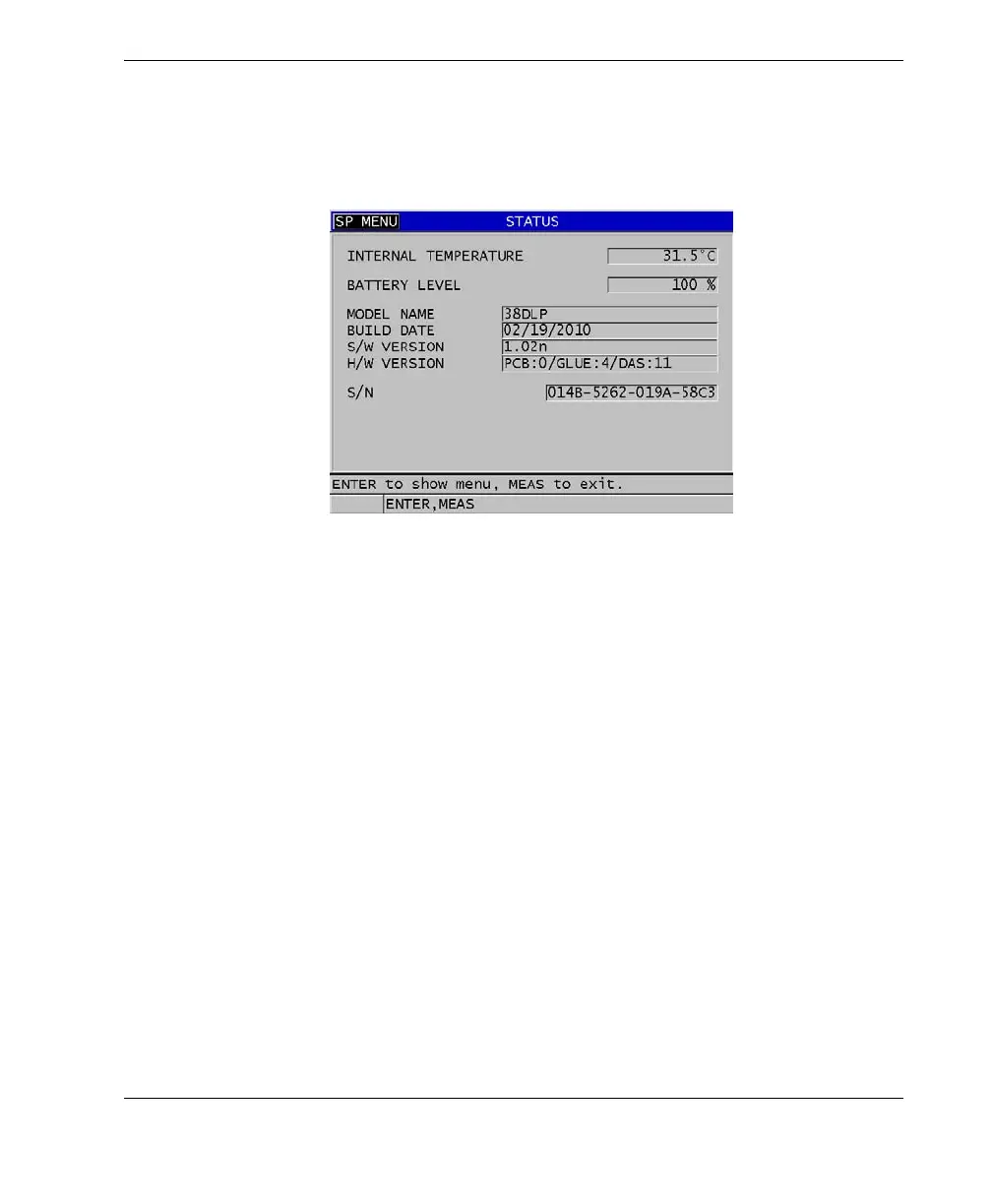

Figure 15‑5 Example of the STATUS screen
3. Press [MEAS] to return to the measurement screen.
15.8 Understanding Error Messages
When operating the gage, certain error messages may appear. Usually these messages
indicate a problem with the operating procedure, but some might indicate a physical
problem with the gage itself. If you do not understand an error message, contact
Olympus for assistance.
15.9 Resolving Battery Pack and Charger Problems
The power indicator (in the upper-right corner of the display) shows bars that indicate
the percentage of remaining battery charge level. When the charge level becomes low,
the gage automatically turns off. If the gage turns off immediately after you turn it on
or if you cannot turn it on, the battery pack is probably depleted.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
