Electrical Installation
3
3.3 Main Circuit Wiring
SIEPCYEUOQ2V01A Q2V Technical Manual 49
■ Models 2056, 4031 - 4038

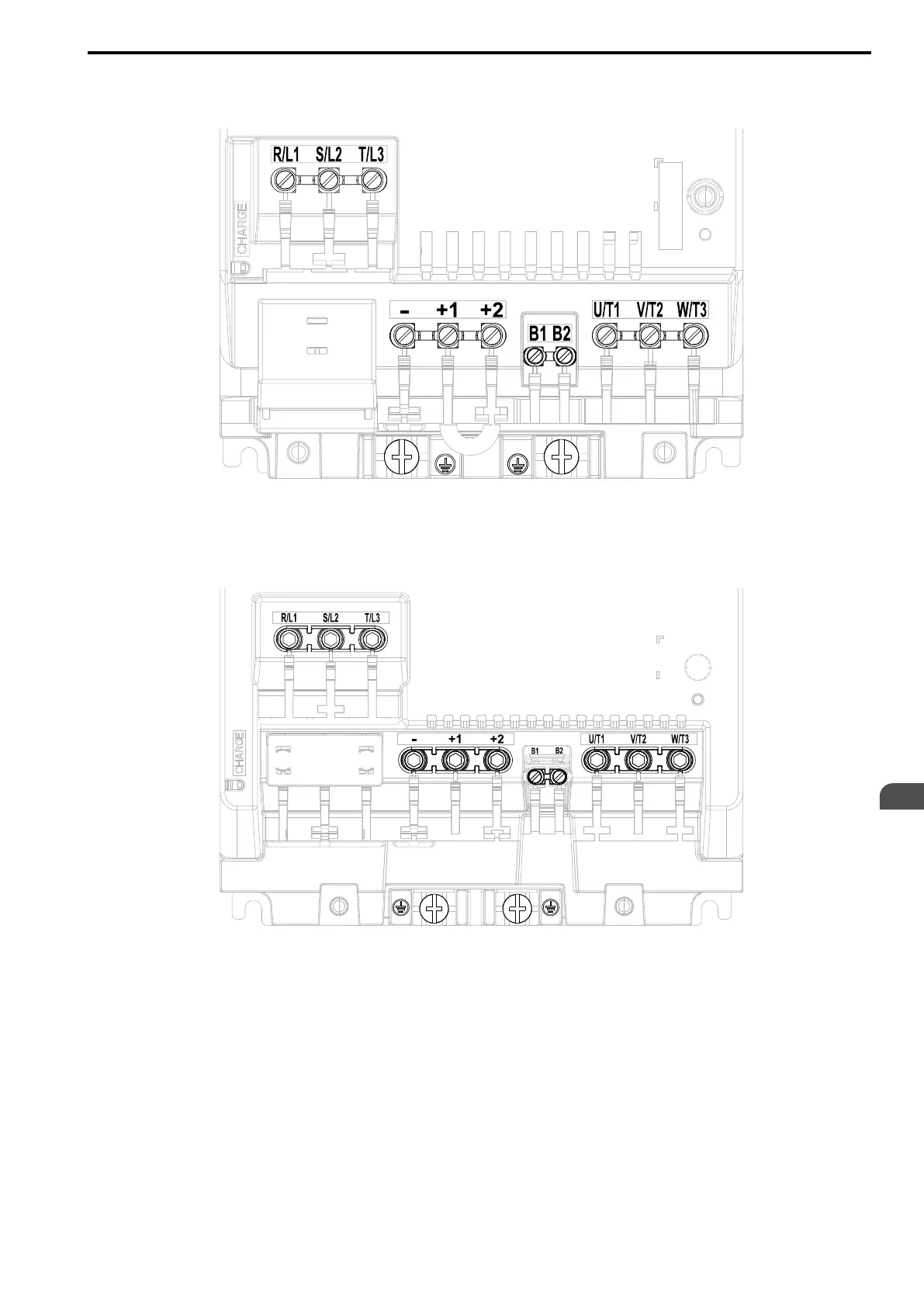

Figure 3.11 Three-Phase, With a Built-in EMC Filter
■ Models 2070, 2082
Figure 3.12 Three-Phase, With a Built-in EMC Filter
