4.5 Start-up Procedures
114 SIEPCYEUOQ2V01A Q2V Technical Manual

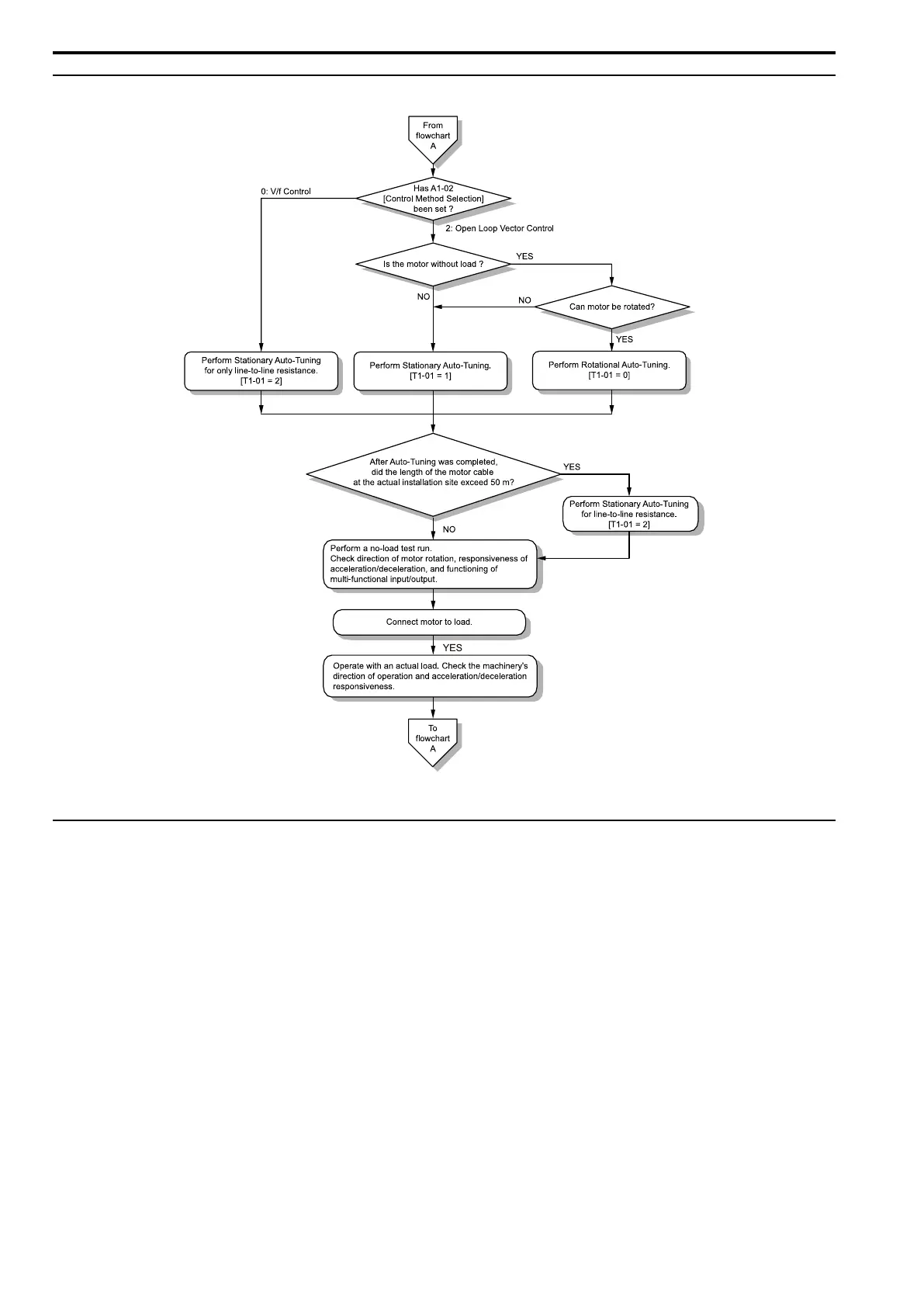

◆ Sub-Chart A-1: Induction Motor Auto-Tuning and Test Run Procedure
Figure 4.10 Induction Motor Auto-Tuning and Test Run Procedure
◆ Sub-Chart A-2: PM Motor Auto-Tuning and Test Run Procedure
Sub-Chart A-2 gives the basic steps to start up the drive for a PM motor.
WARNING! Crush Hazard. Test the system to make sure that the drive operates safely after you wire the drive and set
parameters. If you do not test the system, it can cause damage to equipment or serious injury or death.
To Next Page
