3.5
Control
Circuit
Wiring
74
SIEPCYEUOQ2V01A
Q2V
T
echnical
Manual
3.5
Control
Circuit
Wiring
◆
Control
Circuit
Connection
Diagram
W
ire
the
drive
control
circuit
as
shown.

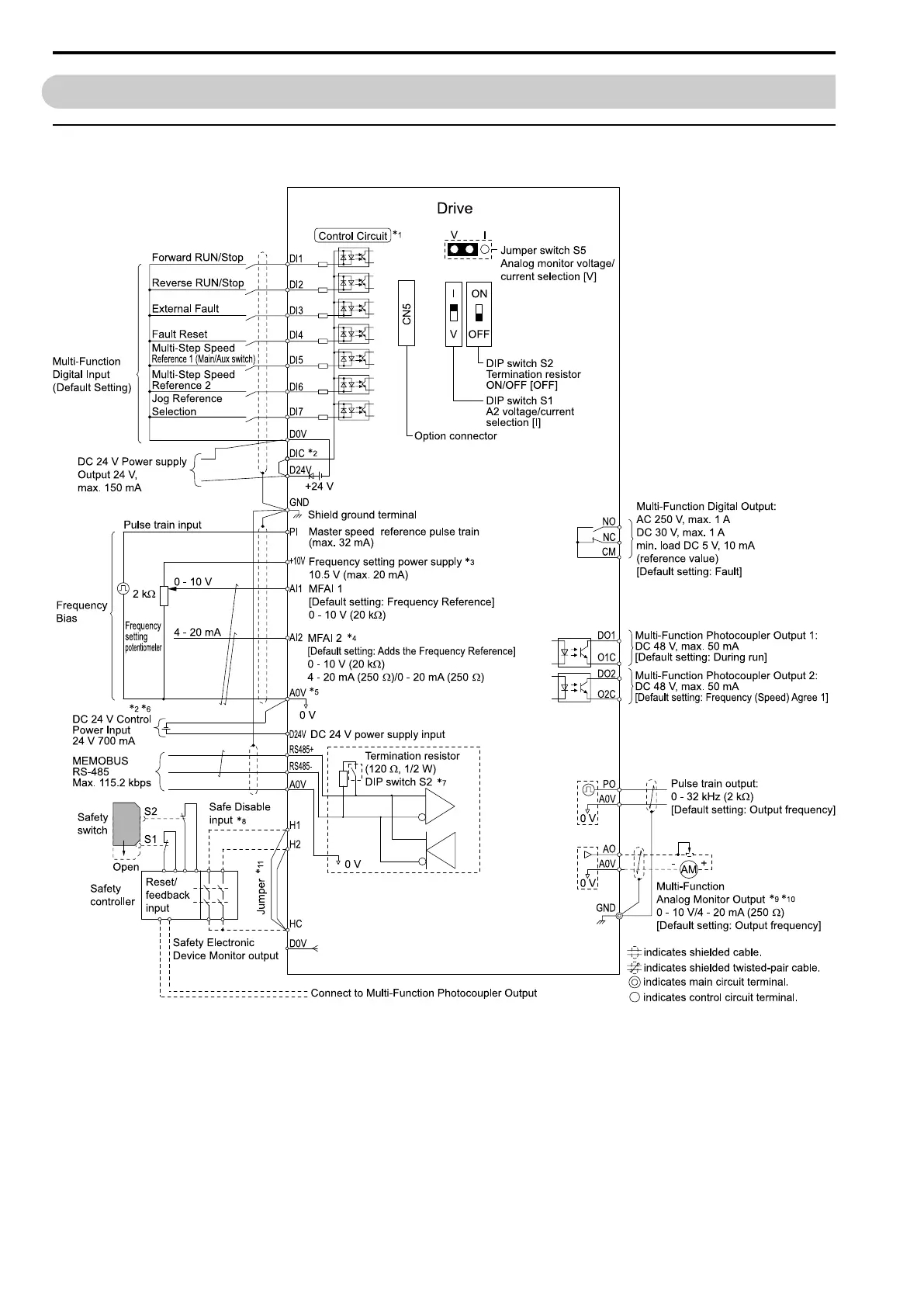

Figure
3.20
Control
Circuit
Connection
Diagram
*1
Connect
a
24
V
power
supply
to
terminals
D24V
-A0V
to
operate
the
control
circuit
while
the
main
circuit
power
supply
is
OFF
.
73
75
