5.2 European Standards
158 SIEPCYEUOQ2V01A Q2V Technical Manual
Drive Model
Fuse
Manufacturer: Bussmann
2008 FWH-70B
2010 FWH-70B
2012 FWH-70B
2018 FWH-90B
2021 FWH-90B
Drive Model
Fuse
Manufacturer: Bussmann
2030 FWH-100B
2042 FWH-150B
2056 FWH-200B
2070 FWH-200B
2082 FWH-225A
Table 5.6 Recommended Fuse: Single-Phase 200 V Class
Drive Model
Fuse
Manufacturer: Bussmann
B001 FWH-25A14F
B002 FWH-25A14F
B004 FWH-60B
B006 FWH-80B
Drive Model
Fuse
Manufacturer: Bussmann
B010 FWH-100B
B012 FWH-125B
B018 FWH-150B
Table 5.7 Recommended Fuse: Three-Phase 400 V Class
Drive Model
Fuse
Manufacturer: Bussmann
4001 FWH-40B
4002 FWH-40B
4004 FWH-50B
4005 FWH-70B
4007 FWH-70B
4009 FWH-90B
4012 FWH-90B
Drive Model
Fuse
Manufacturer: Bussmann
4018 FWH-80B
4023 FWH-100B
4031 FWH-125B
4038 FWH-175B
4044 FWH-200B
4060 FWH-200B
◆ EMC Directive
Use drives with built-in EMC filters or install external EMC filters to the drive input side to comply with the
EMC Directive. Drives with built-in EMC filters were tested in accordance with European standard EN 61800-
3:2004/A1:2012, and comply with the EMC Directive.
■ Install a Drive to Conform to the EMC Directive
Install the drives with this procedure to comply with the EMC Directive when the drive is a single unit or installed
in a larger device.
1. Install the drive on a grounded metal plate.
2. Wire the drive and motor.
3. Ground the wire shielding on the drive side and motor side.

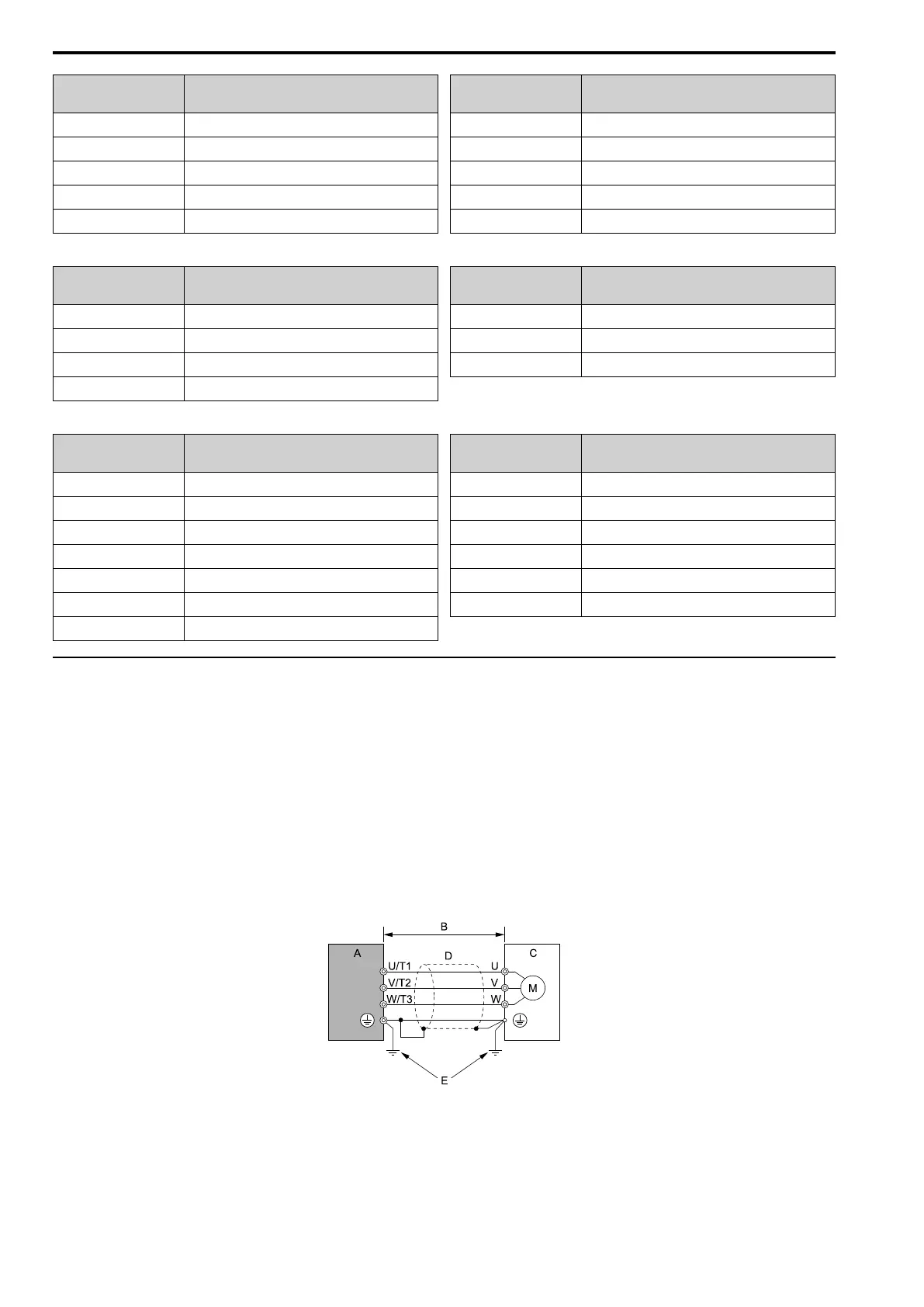

A - Drive
B - Wiring length
*1
C - Motor
D - Metal conduit
E - Grounding wire
Figure 5.4 Wiring the Drive and Motor
