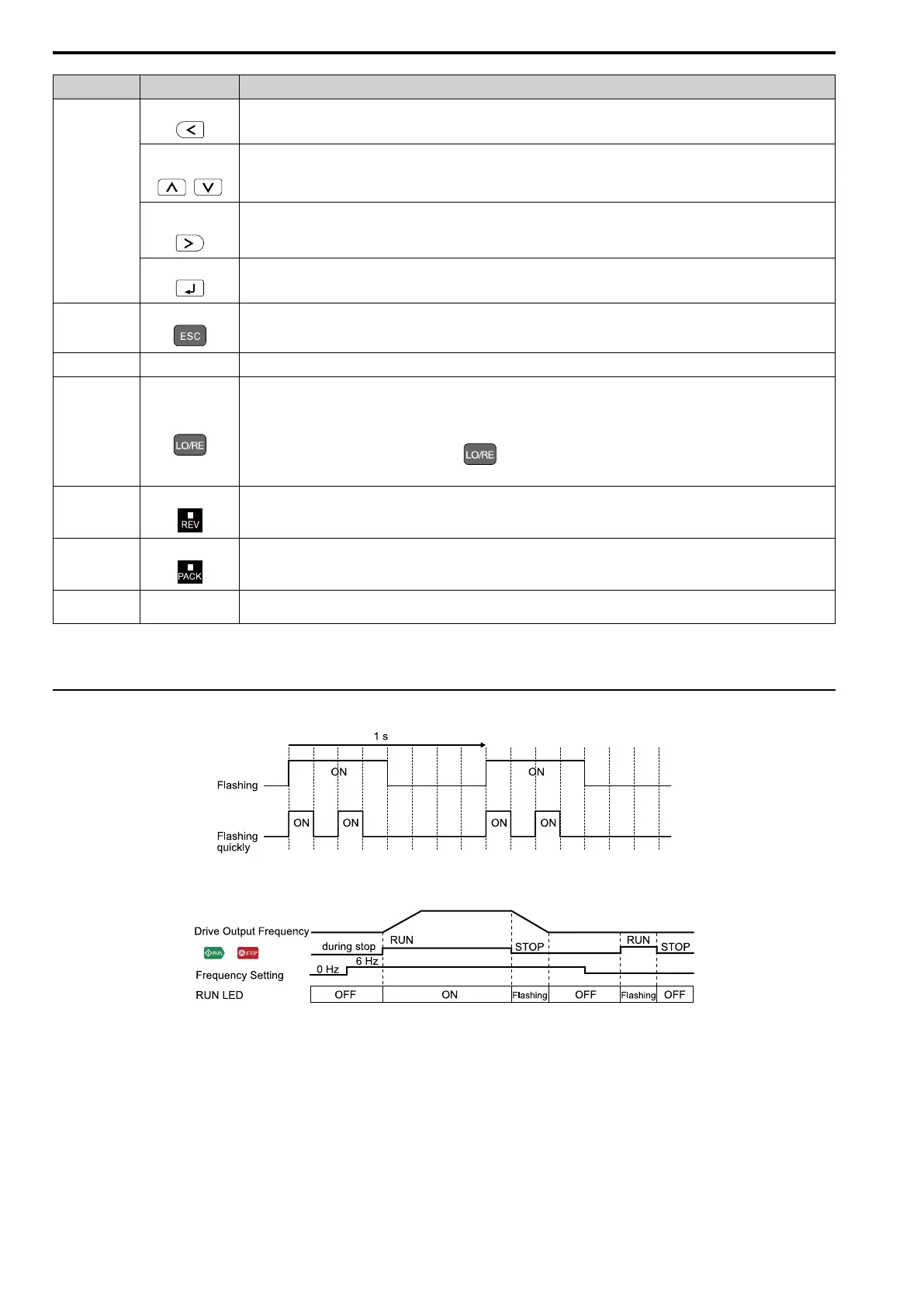

4.2 Component Names and Functions
106 SIEPCYEUOQ2V01A Q2V Technical Manual
Symbol Name Function
G
Left Arrow Key Moves the cursor to the left.
Up Arrow Key/
Down Arrow Key
/
• Moves to a different screen.
• Selects parameter numbers and increments or decrements setting values.
Right Arrow Key
(RESET)
• Moves the cursor to the right.
• Restarts the drive to clear a fault.
ENTER Key • Enters parameter values and settings.
• Selects each mode, parameter, and set value.
H
ESC Key • Goes back to the previous screen.
• Push and hold to go back to the frequency reference screen (the initial screen).
I LED Display
Shows parameters, errors, and other data.
J
LO/RE Selection
Key
Switches drive control for the Run command and frequency reference between the keypad (LOCAL) and an external source
(REMOTE).
Note:
• The LOCAL/REMOTE Selection Key continuously stays enabled after the drive stops in Drive Mode. If the application must not
switch from REMOTE to LOCAL because it will have a negative effect on system performance, set o2-01 = 0 [LO/RE Key
Selection of Function = Disabled] to disable .
• The drive will not switch between LOCAL and REMOTE when it is receiving a Run command from an external source.
K
REV LED Illuminated: The drive received a Reverse run command.
L
PACK LED Illuminated: The drive is In Q2pack operation.
M RJ-45 Connector
Connects to the drive. Use an RJ-45 8-pin straight through UTP CAT5e extension cable to install the keypad in a different location
than the drive.
WARNING! Sudden Movement Hazard. If you change the control source when b1-07 = 2 [LO/RE Run Selection = Accept RUN],
the drive can start suddenly. Before you change the control source, remove all personnel from the area around the drive, motor,
and load. Sudden starts can cause serious injury or death.
◆ LED Flashing Statuses
Figure 4.2 About indicator flashing statuses
Figure 4.3 Relation between RUN indicator and Drive Operation
