Startup Procedure and Test Run
4
4.2 Component Names and Functions
SIEPCYEUOQ2V01A Q2V Technical Manual 105
4.2 Component Names and Functions

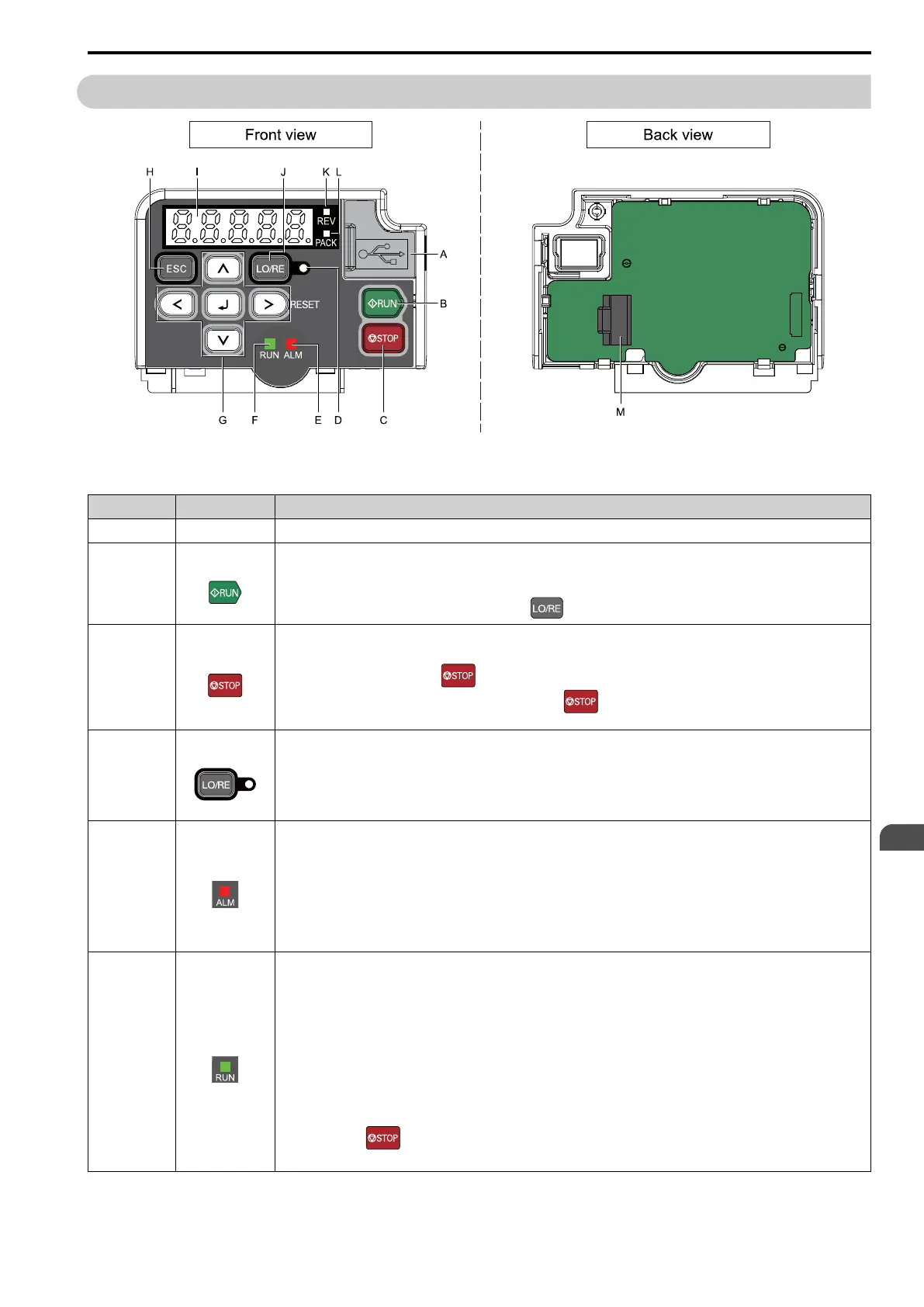

Figure 4.1 Keypad
Table 4.1 Keypad: Names and Functions
Symbol Name Function
A USB Terminal
Insertion point for a USB cable. Uses a USB cable (USB standard 2.0, type A - mini-B) to connect the keypad to a PC.
B
RUN Key
Starts the drive in LOCAL Mode.
Starts the operation in Auto-Tuning Mode.
Note:
Before you use the keypad to operate the motor, push on the keypad to set the drive to LOCAL Mode.
C
STOP Key
Stops drive operation.
Note:
Uses a stop-priority circuit. Push to stop the motor. This will also stop the motor when a Run command is active at an
external Run command source (REMOTE Mode). To disable priority, set o2-02 = 0 [STOP Key Selection of Function =
Disabled].
D
LO/RE LED
Illuminated: The keypad controls the Run command (LOCAL Mode).
OFF: The control circuit terminal or serial transmission device controls the Run command (REMOTE Mode).
Note:
• LOCAL: Operated using the keypad. Use the keypad to enter Run/Stop commands and the frequency reference command.
• REMOTE: Operated from the control circuit terminal or serial transmission. Use the frequency reference source entered in b1-01
and the Run command source selected in b1-02.
E
ALM/ERR LED
Illuminated: The drive detects a fault.
OFF: There are no drive faults or alarms.
Flashing:
• An alarm
• Operation Errors
• An Auto-Tuning error
Note:
The LED will illuminate to identify a fault if the drive detects a fault and an alarm at the same time.
F
RUN LED
Illuminated: The drive is in regular operation.
OFF: The drive is stopped.
Flashing:
• The drive is decelerating to stop.
• The drive received a Run command, but the frequency reference is 0 Hz.
Flashing quickly:
• The drive received a Run command from the MFDI terminals and is switching to REMOTE Mode while the drive is in LOCAL
Mode.
• The drive received a Run command from the MFDI terminals when the drive is not in Drive Mode.
• The drive received a Fast Stop command.
• The safety function shuts off the drive output.
• The user pushed on the keypad while the drive is operating in REMOTE Mode.
• The drive is energized with an active Run command and b1-17 = 1 [RUN@PowerUp Selection = Disregard RUN].
To Next Page
