10.9 Drive Exterior and Mounting Dimensions
308 SIEPCYEUOQ2V01A Q2V Technical Manual
◆ IP20/UL Open Type (Models 2010 to 2021, B006 to B018, 4001 to 4012)

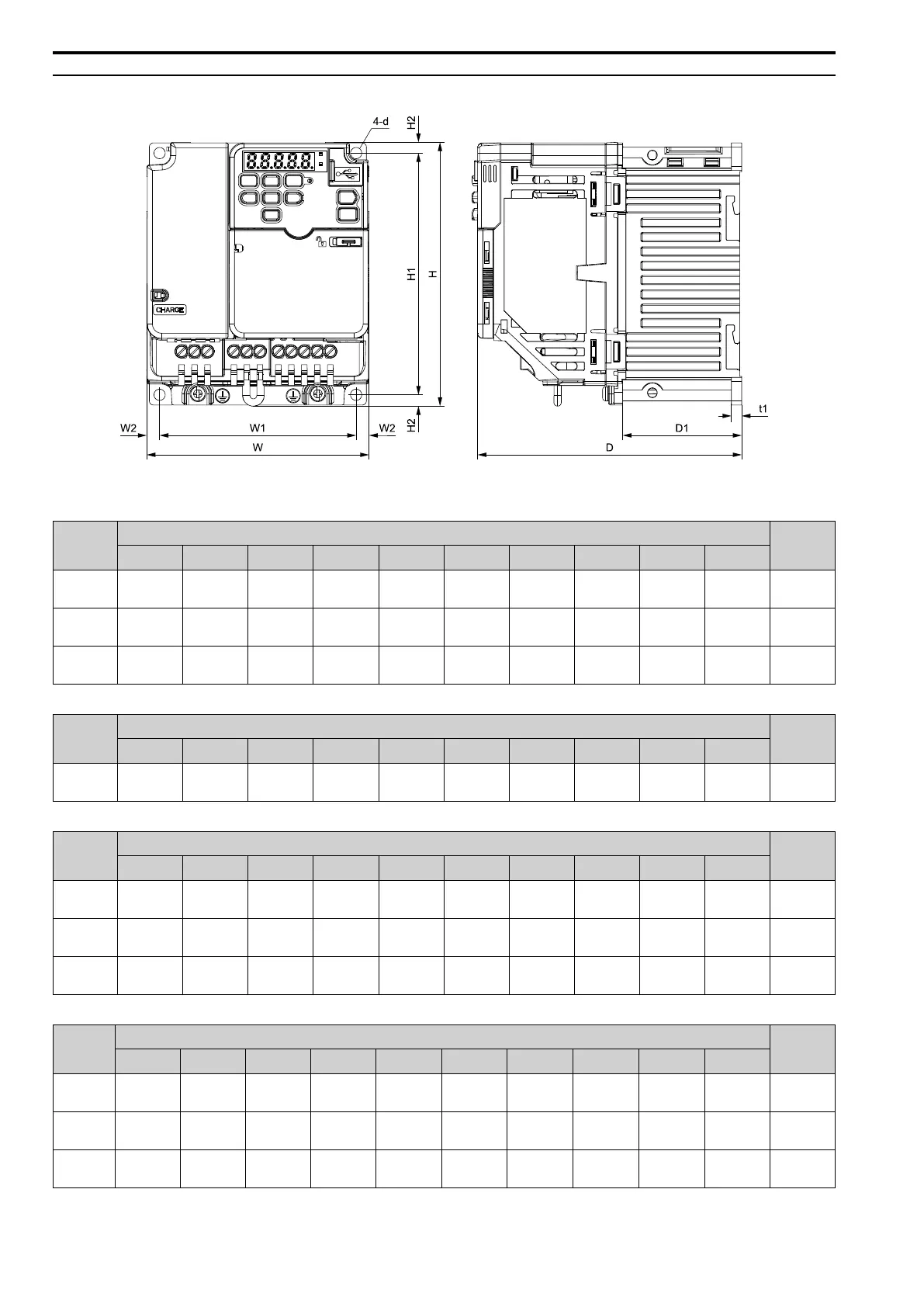

Figure 10.3 Exterior and Mounting Dimensions
Table 10.28 Three-Phase 200 V Class (IP20/UL Open Type, with Built-in EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1 d
2010
108
(4.25)
128
(5.04)
174
(6.85)
96
(3.78)
6
(0.24)
118
(4.65)
5
(0.20)
56.5
(2.22)
5
(0.20)
M5
1.6
(3.5)
2012
108
(4.25)
128
(5.04)
182.5
(7.19)
96
(3.78)
6
(0.24)
118
(4.65)
5
(0.20)
56.5
(2.22)
5
(0.20)
M5
1.6
(3.5)
2021
140
(5.51)
128
(5.04)
193
(7.60)
128
(5.04)
6
(0.24)
118
(4.65)
5
(0.20)
65
(2.56)
5
(0.20)
M5
2.4
(5.3)
Table 10.29 Single-Phase 200 V Class (IP20/UL Open Type, without Built-in EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1 d
B018
170
(6.69)
128
(5.04)
180
(7.09)
158
(6.22)
6
(0.24)
118
(4.65)
5
(0.20)
65
(2.56)
5
(0.20)
M5
2.9
(6.4)
Table 10.30 Single-Phase 200 V Class (IP20/UL Open Type, with Built-in EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1 d
B006
108
(4.25)
128
(5.04)
182.5
(7.19)
96
(3.78)
6
(0.24)
118
(4.65)
5
(0.20)
56.5
(2.22)
5
(0.20)
M5
1.8
(4.0)
B010
108
(4.25)
128
(5.04)
199
(7.83)
96
(3.78)
6
(0.24)
118
(4.65)
5
(0.20)
56.5
(2.22)
5
(0.20)
M5
1.8
(4.0)
B012
140
(5.51)
128
(5.04)
203
(7.99)
128
(5.04)
6
(0.24)
118
(4.65)
5
(0.20)
65
(2.56)
5
(0.20)
M5
2.7
(6.0)
Table 10.31 Three-Phase 400 V Class (IP20/UL Open Type, with Built-in EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1 d
4001
108
(4.25)
128
(5.04)
126
(4.96)
96
(3.78)
6
(0.24)
118
(4.65)
5
(0.20)
8.5
(0.33)
5
(0.20)
M5
1.4
(3.1)
4002
108
(4.25)
128
(5.04)
144
(5.67)
96
(3.78)
6
(0.24)
118
(4.65)
5
(0.20)
26.5
(1.04)
5
(0.20)
M5
1.5
(3.3)
4004
108
(4.25)
128
(5.04)
182.5
(7.19)
96
(3.78)
6
(0.24)
118
(4.65)
5
(0.20)
56.5
(2.22)
5
(0.20)
M5
1.9
(4.2)
