Omron Q2V Series - Sub-Chart A-3: EZ Open Loop Vector Control Test Run Procedure

Startup Procedure and Test Run
4
4.5 Start-up Procedures
SIEPCYEUOQ2V01A Q2V Technical Manual 115

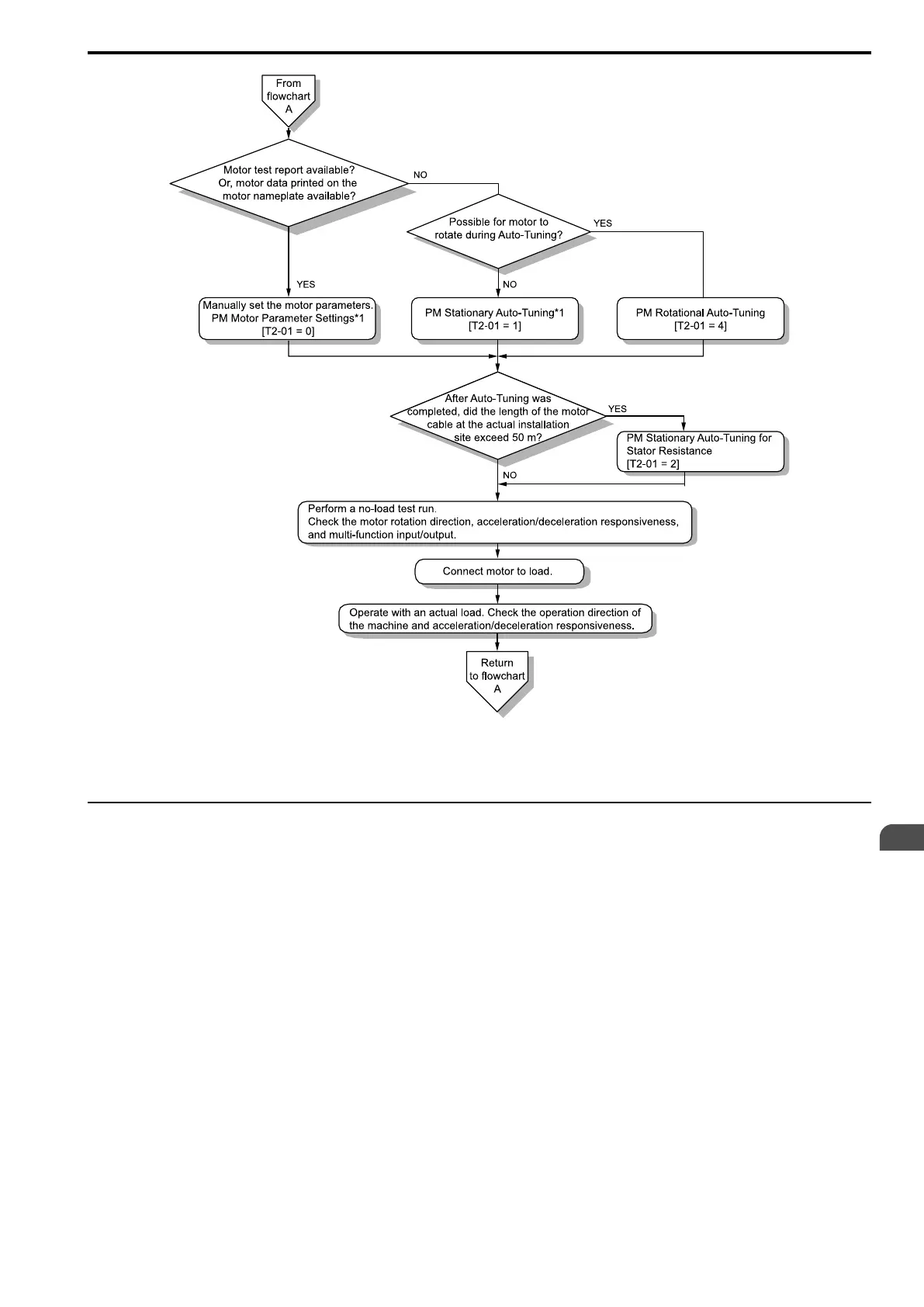

Figure 4.11 PM Motor Auto-Tuning and Test Run Procedure
*1 For Yaskawa PM motors (SMRD, SMRA-series, or SSR1-series), set E5-01 [PM Mot Code Selection]. For PM motors from a
different manufacturer, set E5-01 = FFFF.
◆ Sub-Chart A-3: EZ Open Loop Vector Control Test Run Procedure
Sub-chart A-3 gives the setup procedure to run a PM motor in EZ Open Loop Vector Control.
