10.9 Drive Exterior and Mounting Dimensions
SIEPCYEUOQ2V01A Q2V Technical Manual 307
10.9 Drive Exterior and Mounting Dimensions
◆ IP20/UL Open Type (Models 2001 to 2006, B001 to B004)

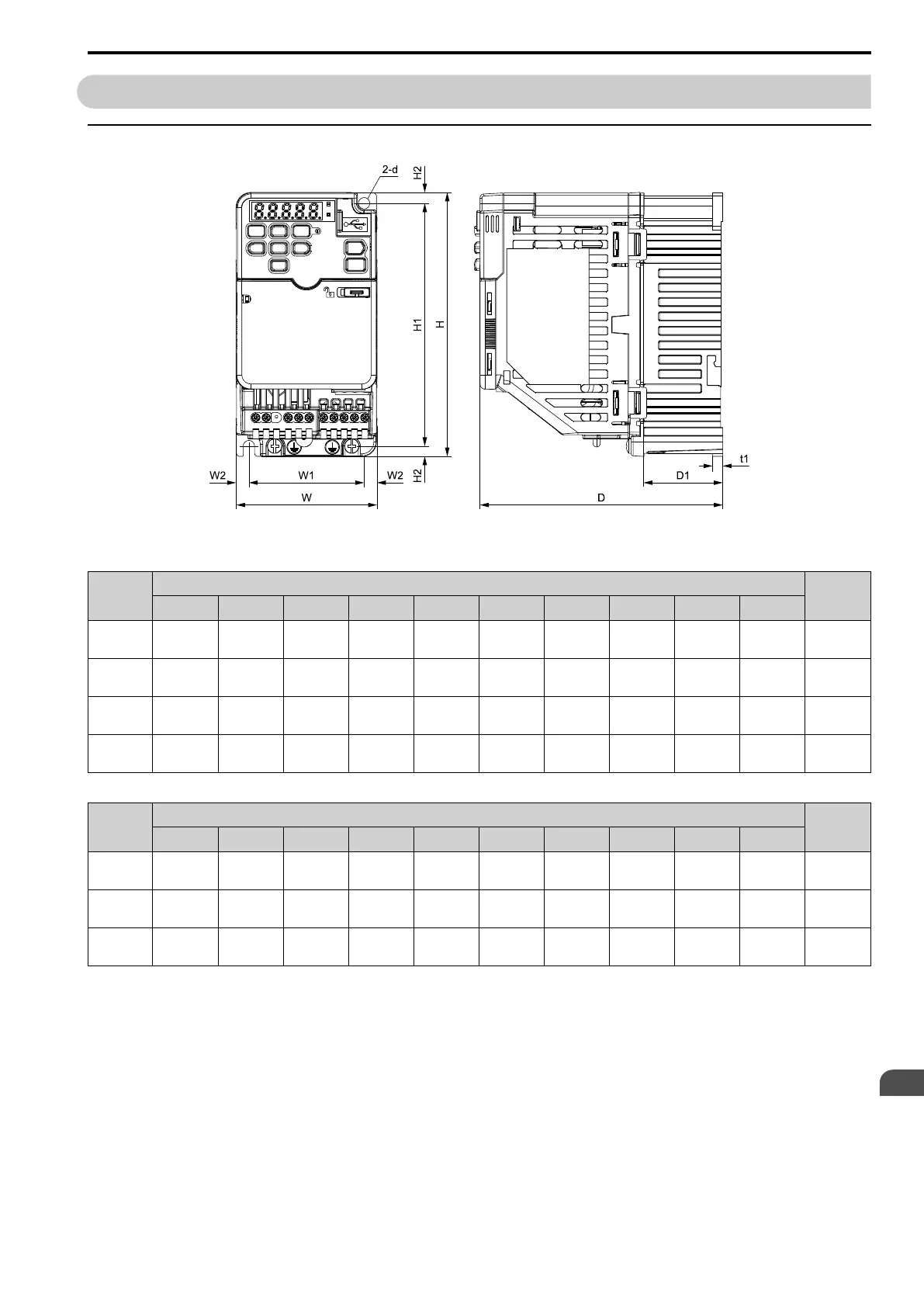

Figure 10.2 Exterior and Mounting Dimensions
Table 10.26 Three-Phase 200 V Class (IP20/UL Open Type, with Built-in EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1
d
2001
68
(2.68)
128
(5.04)
116
(4.57)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
6.5
(0.26)
3
(0.12)
M5
0.6
(1.3)
2002
68
(2.68)
128
(5.04)
116
(4.57)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
6.5
(0.26)
3
(0.12)
M5
0.6
(1.3)
2004
68
(2.68)
128
(5.04)
148
(5.83)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
38.5
(1.52)
5
(0.20)
M5
0.9
(2.0)
2006
68
(2.68)
128
(5.04)
168
(6.61)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
58.5
(2.30)
5
(0.20)
M5
1.1
(2.4)
Table 10.27 Single-Phase 200 V Class (IP20/UL Open Type, with Built-in EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1
d
B001
68
(2.68)
128
(5.04)
116
(4.57)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
6.5
(0.26)
3
(0.12)
M5
0.7
(1.6)
B002
68
(2.68)
128
(5.04)
116
(4.57)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
6.5
(0.26)
3
(0.12)
M5
0.7
(1.6)
B004
68
(2.68)
128
(5.04)
158
(6.22)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
38.5
(1.52)
5
(0.20)
M5
1.0
(2.2)
