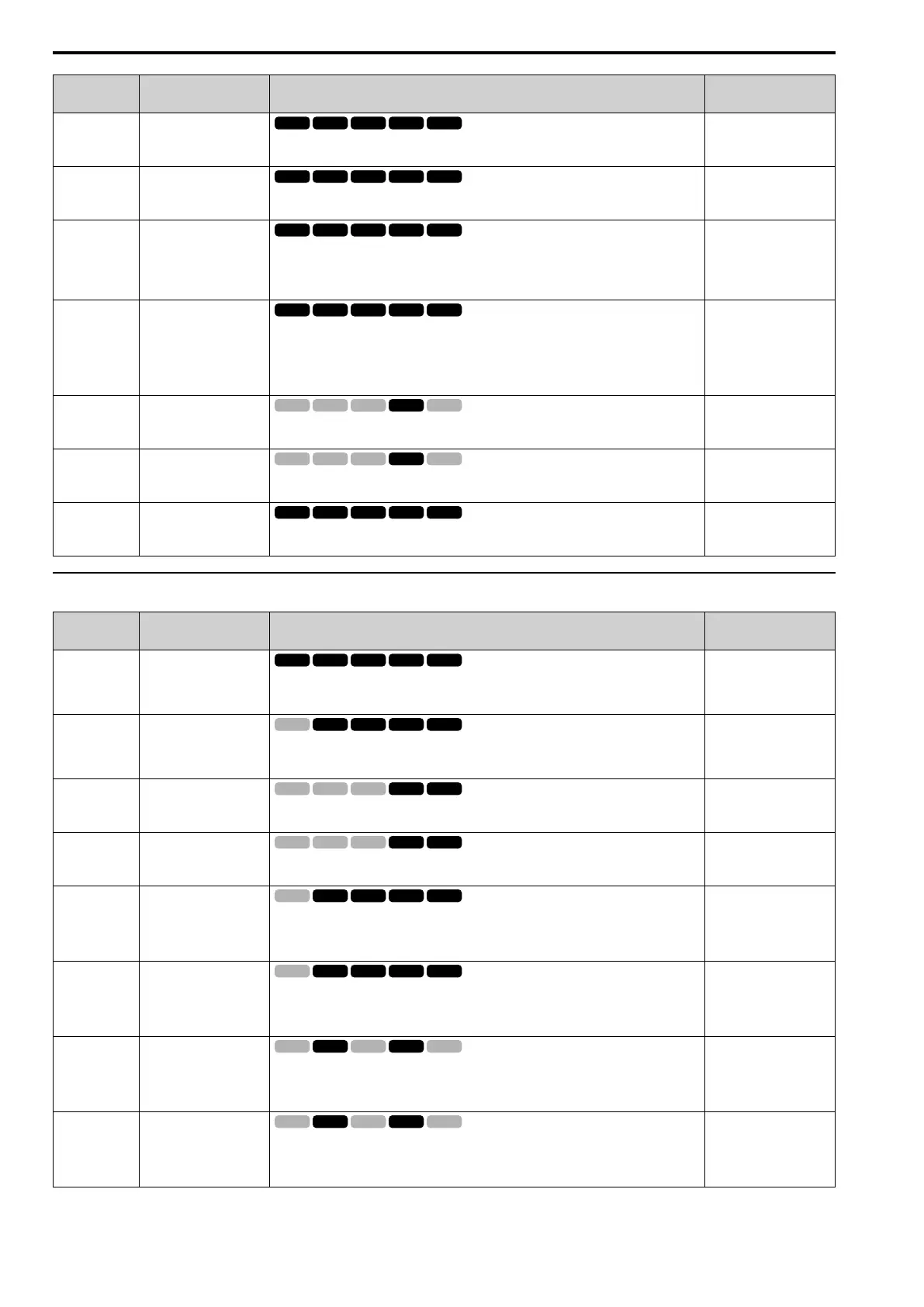

11.16 U: MONITORS
400 SIEPCYEUOQ2V01A Q2V Technical Manual
No.
(Hex.)
Name Description MFAO Signal Level
U5-03
(0064)
PID Output
Shows the PID control output as a percentage of the maximum output frequency.
Unit: 0.01%
10 V = Maximum
frequency (-10 V to +10 V)
U5-04
(0065)
PID Setpoint
Shows the PID setpoint. Parameter b5-20 [PID Unit Selection] sets the display units.
Unit: 0.01%
10 V = Maximum
frequency (-10 V to +10 V)
U5-05
(07D2)
PID Diff.Feedbk
Shows the PID differential feedback value as a percentage of the maximum output frequency.
This monitor is available after you set H3-02 or H3-10 = 11 [AI1 Function Selection or AI2
Function Selection = Diff PIDFbk].
Unit: 0.01%
10 V: Maximum frequency
(-10 V to +10 V)
U5-06
(07D3)
PID AdjustFeedback
Shows the difference from calculating U5-05 - U5-01 [PID Diff.Feedbk] - [PID Feedback].
Unit: 0.01%
Note:
U5-01 [PID Feedback] = U5-06 when H3-02 or H3-10 11 [AI1 Function Selection or AI2
Function Selection Diff PIDFbk].
10 V: Maximum frequency
(-10 V to +10 V)
U5-21
(0872)
Expert
Energy Save Ki Coeff
Shows the energy-saving coefficient Ki value for PM.
Unit: 0.01
No signal output available
U5-22
(0873)
Expert
Energy Save Kt Coeff
Shows the energy-saving coefficient Kt value for PM.
Unit: 0.01
No signal output available
U5-99
(1599)
PID Setpoint Command
Shows the PID setpoint command. Parameter b5-20 [PID Unit Selection] sets the display units.
Unit: 0.01%
10 V = Maximum
frequency (-10 V to +10 V)
U6: ADVANCED
No.
(Hex.)
Name Description MFAO Signal Level
U6-01
(0051)
Iq Sec Current
Shows the value calculated for the motor secondary current (q axis) as a percentage of the motor
rated secondary current.
Unit: 0.1%
10 V = Motor secondary
rated current (-10 V to +10
V)
U6-02
(0052)
Id ExcCurrent
Shows the value calculated for the motor excitation current (d axis) as a percentage of the motor
rated secondary current.
Unit: 0.1%
10 V = Motor secondary
rated current (-10 V to +10
V)
U6-03
(0054)
ASR Input
Shows the ASR input value as a percentage of the maximum frequency.
Unit: 0.01%
10 V = Maximum
frequency (-10 V to +10 V)
U6-04
(0055)
ASR Output
Shows the ASR output value as a percentage of the motor rated secondary current.
Unit: 0.01%
10 V = Motor secondary
rated current (-10 V to +10
V)
U6-05
(0059)
Vq OutputVoltRef
Shows the drive internal voltage reference for motor secondary current control (q axis).
Unit: 0.1 V
200 V class: 10 V = 200
Vrms
400 V class: 10 V = 400
Vrms
(-10 V to +10 V)
U6-06
(005A)
Vd OutputVoltRef
Shows the drive internal voltage reference for motor excitation current control (d axis).
Unit: 0.1 V
200 V class: 10 V = 200
Vrms
400 V class: 10 V = 400
Vrms
(-10 V to +10 V)
U6-07
(005F)
Expert
q-Axis ACR Output
Shows the output value for current control related to motor secondary current (q axis).
Unit: 0.1%
200 V class: 10 V = 200
Vrms
400 V class: 10 V = 400
Vrms
(-10 V to +10 V)
U6-08
(0060)
Expert
d-Axis ACR Output
Shows the output value for current control related to motor excitation current (d axis).
Unit: 0.1%
200 V class: 10 V = 200
Vrms
400 V class: 10 V = 400
Vrms
(-10 V to +10 V)
