Electrical Installation
3
3.4 Main Circuit Terminal Block Wiring Procedure
SIEPCYEUOQ2V01A Q2V Technical Manual 73
2. Tighten the screws to the specified torque.

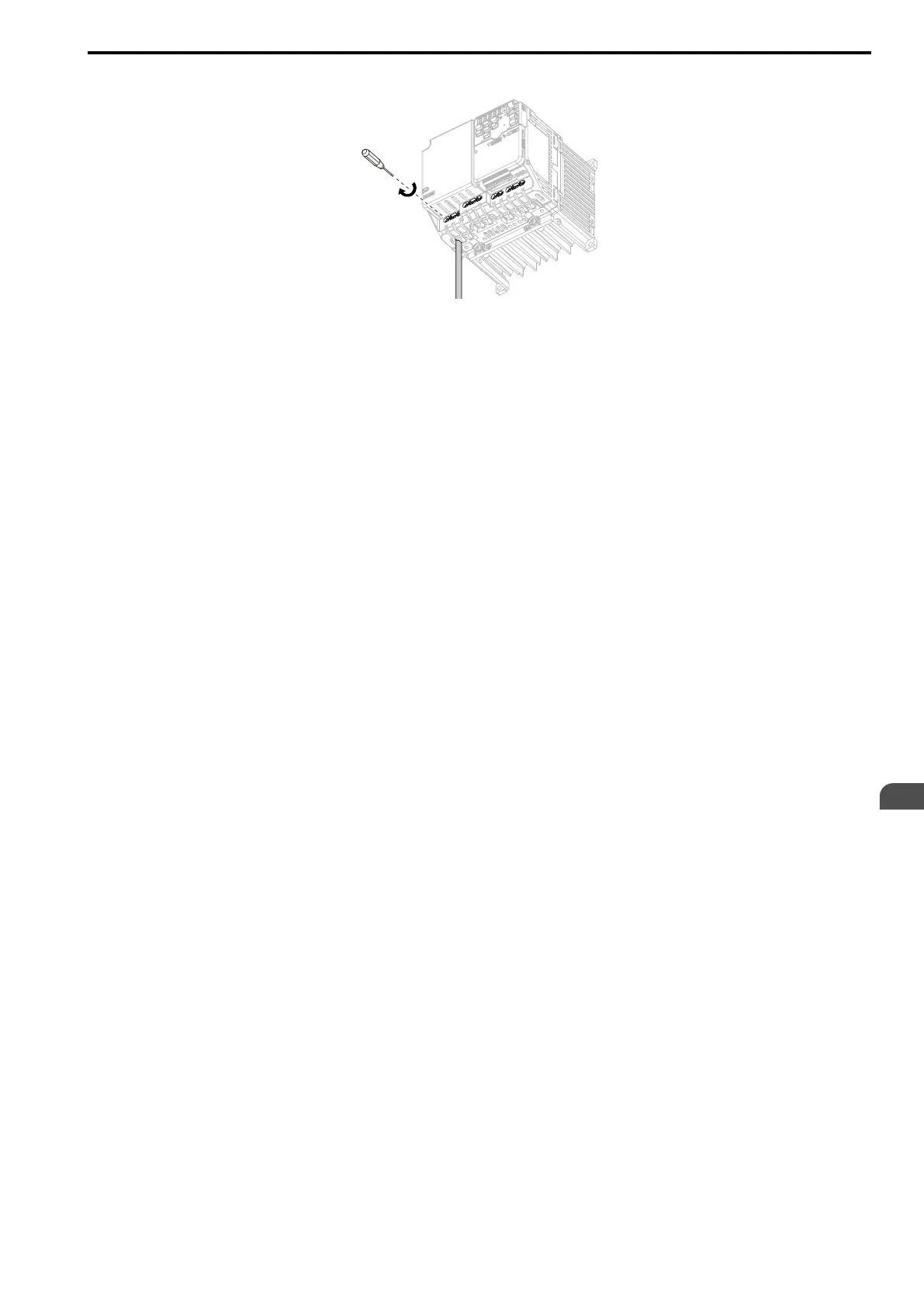

Figure 3.19 Tighten Terminal Block Screws
If you removed IP20 protection covers, install them into their initial positions.
