Omron RX2 Series - Names of Operation Keys

3 Operation
3 - 4
High-function General-purpose Inverter RX2 Series User’s Manual
Precautions for Safe Use
Establish an emergency stop button separately from the stop button at this operator because
this button is only available when function is set.

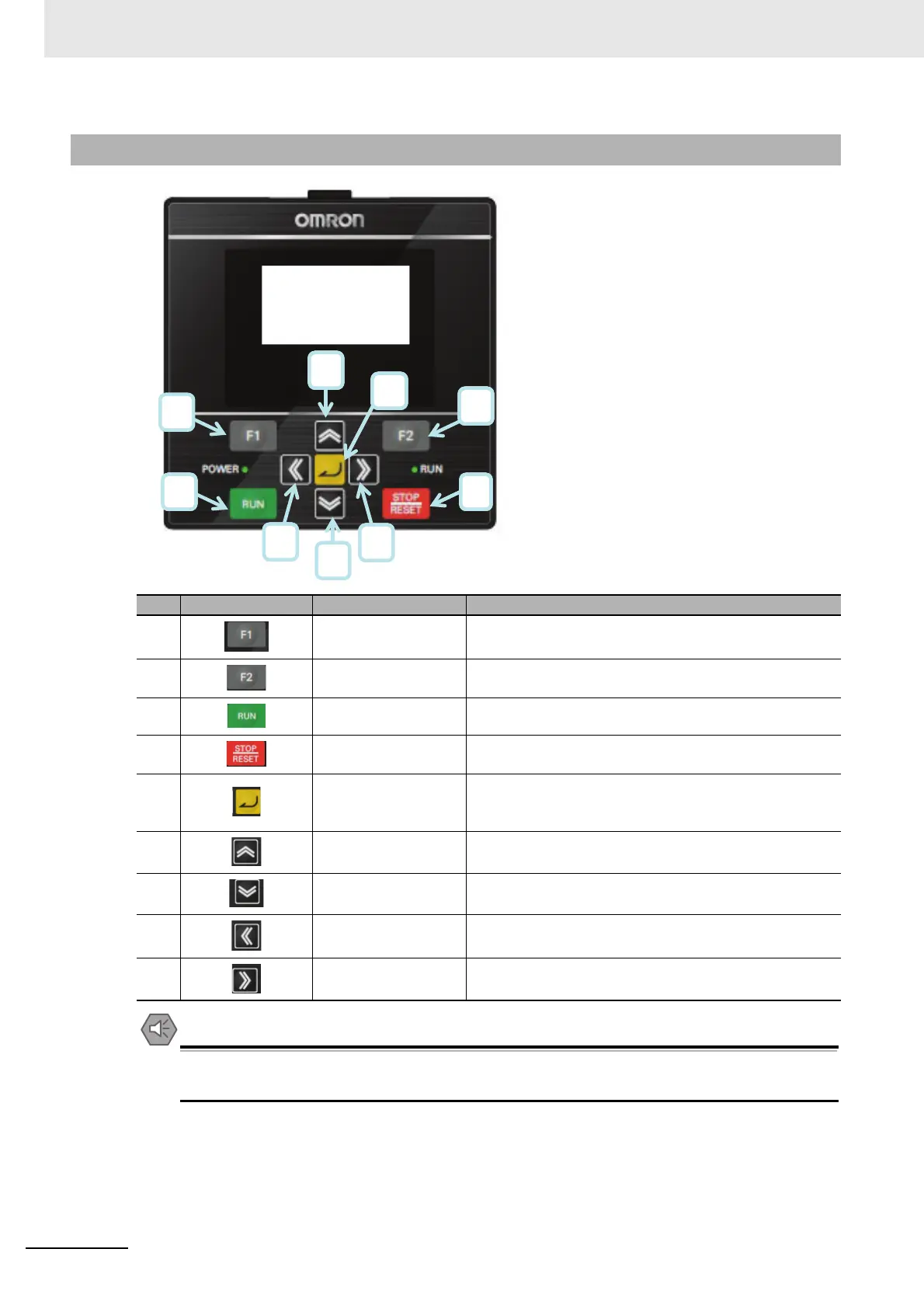

3-1-2 Names of Operation Keys
No Image of the key Name Function
1 F1 key
Displays functions such as navigation to the home screen
and cancellation at the bottom left of the screen.
2 F2 key
Displays functions such as data storage at the bottom right
of the screen.
3 RUN key The device runs when this key is enabled.
4 STOP/RESET key Performs deceleration stop and trip reset.
5 Enter key
Proceeds to the display on the lower layer. When it is
changing the parameter, it returns to the original display
after confirming and documenting the values.
6 Increment key
Moves the cursor upward and increases parameter num-
bers or parameter data.
7 Decrement key
Moves the cursor downward and decreases parameter
numbers or parameter data.
8 Left key
Moves the cursor leftward. Return to the previous mode
when the display indicates navigation level.
9 Right key
Moves the cursor rightward. Proceed to the next mode
when the display indicates navigation level.
1
3
4
5
6
7
9
2
8
LCD Display
