3-4 Error History Display
The trip history screen shows details of the errors that have occurred and the total number of times trip
occurred.
For details of errors, refer to 12-1 Checking Alarm Display on page 12-2.
3-4-1 Trip History

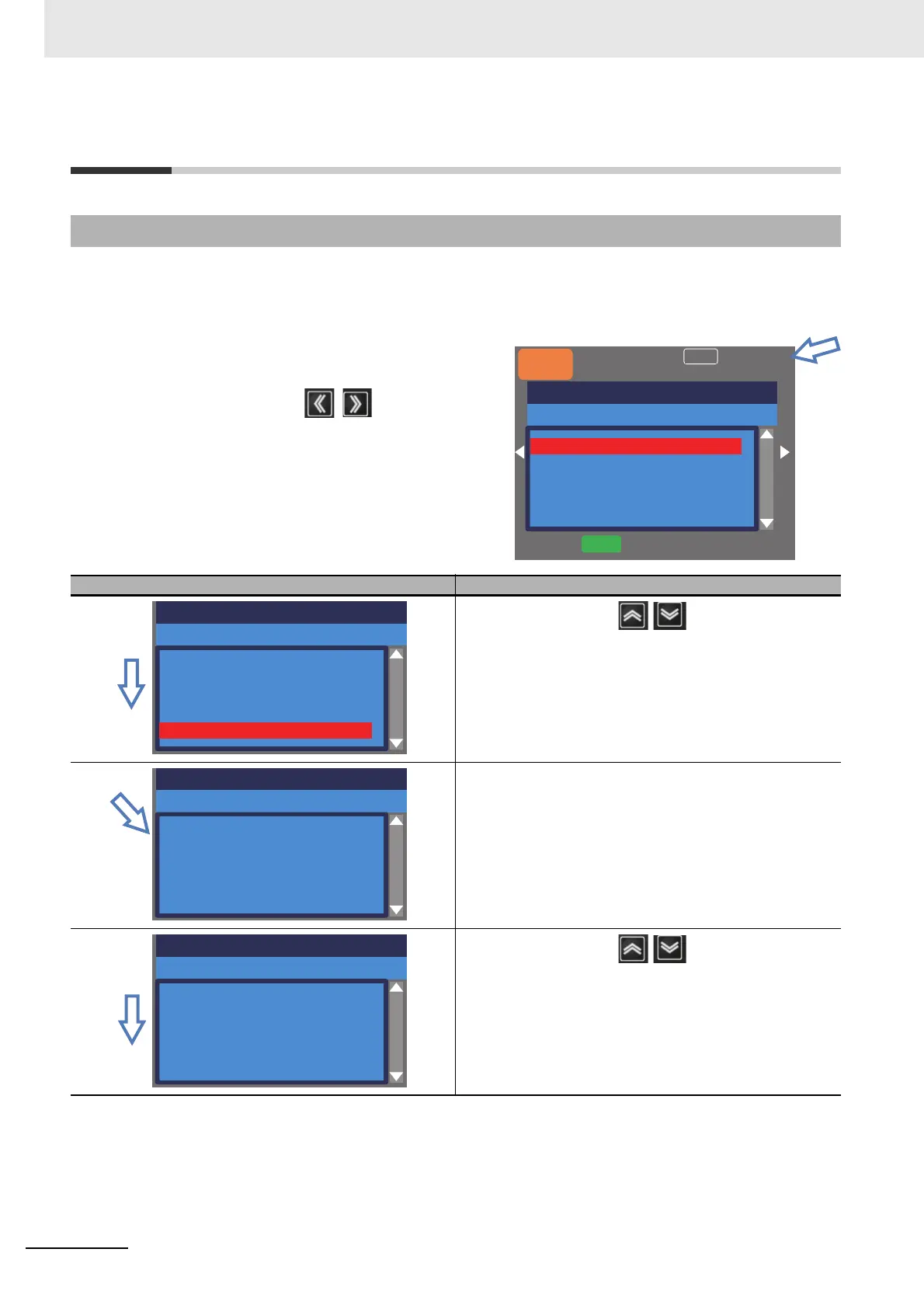

Set-up procedure Action
Using the up and down ( ) keys, select history
information you want to check.
Press the Enter key to show details of the selected history
information.
Using the up and down ( ) keys, you can check
details.
Press the F1(1) key to return to the monitor.
On the screen that is displayed upon power-on,
using the right and left ( ) keys, navigate
to “H06”.
And later operate the device in the following proce-
dures.
Menu
Details
46.49Hz
oFW
M1
H06
Trip history
Total count 20 times
1. E007 16/07/15 10:10
2. E001 16/07/15 08:55
3. E001 16/07/15 08:52
4. E009 16/07/12 10:10
5. E012 16/07/10 22:52
STOP
Trip history
Total count 20 times
6. E001 16/05/10 19:22
7. E001 16/04/21 20:59
8. E007 16/03/30 23:55
9. E001 15/12/25 01:34
10. E005 15/12/24 22:10
Detailed trip history (No. 10)
Motor overload error
E005 15/12/24 22:10
Output Frequency: 0.50Hz
Output Current: 49.71A
DC voltage: 274.1VDC
Status 1: Run
Detailed trip history (No. 10)
Motor overload error
Status 3: Speed control
Status 4: Overload limit
Status 5: ----
RUN time: 20256 hr
ON time: 27248 hr
To Next Page
